Overview

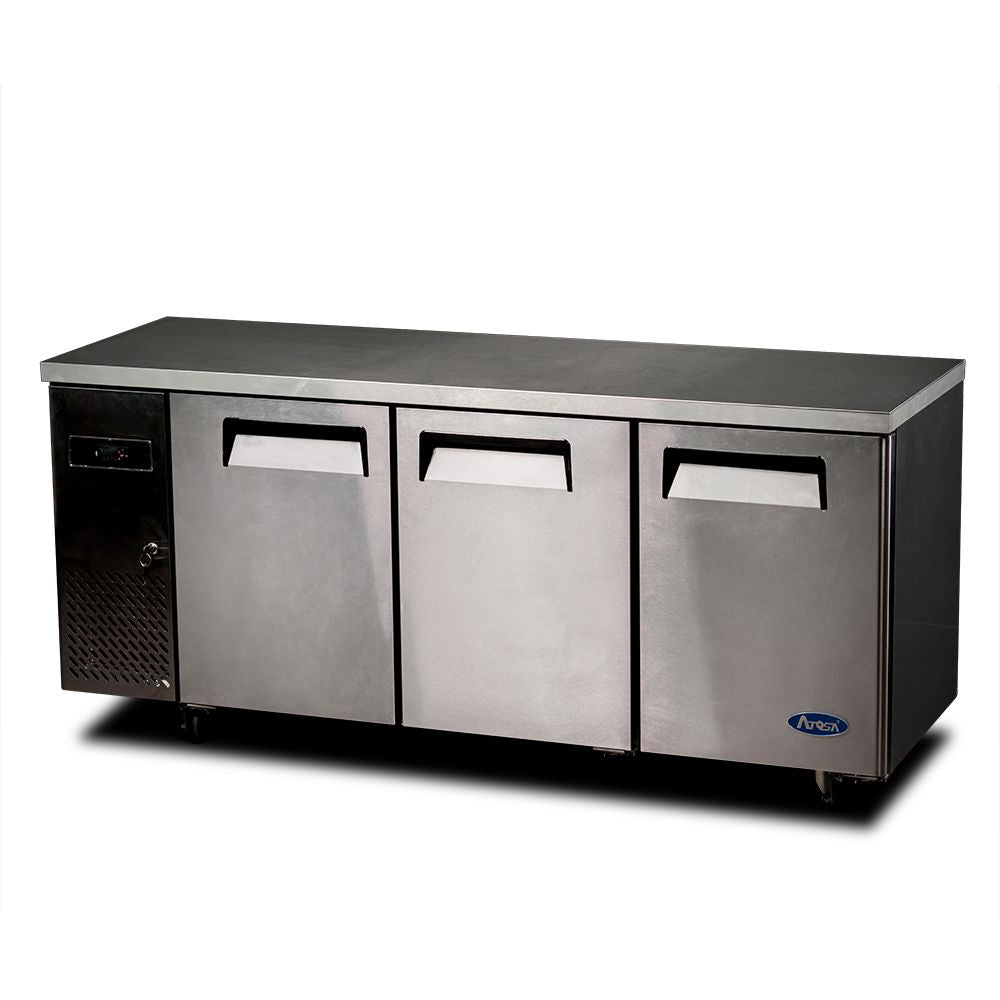

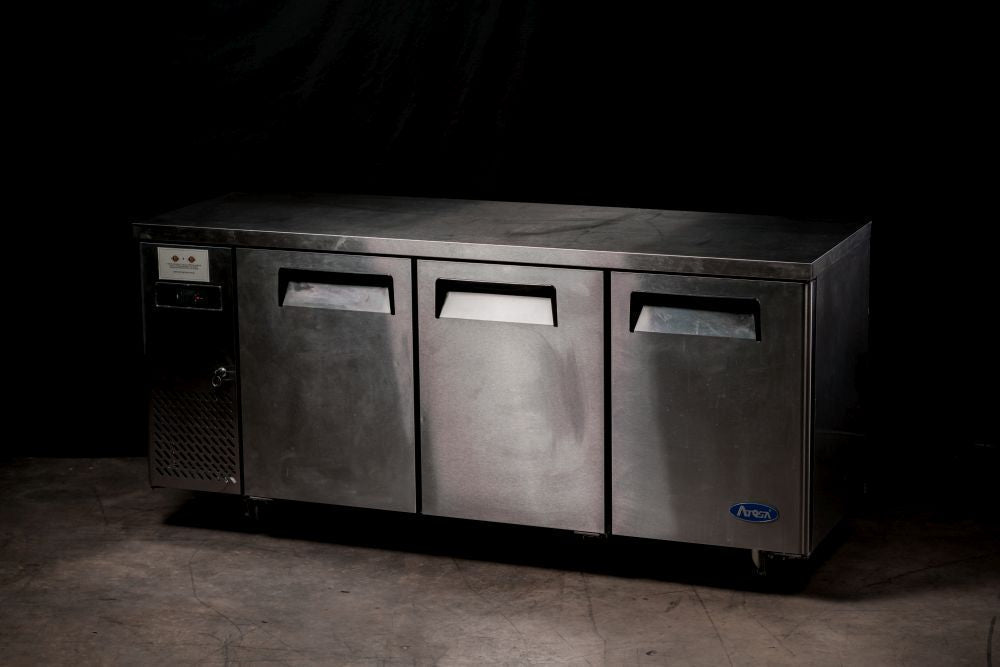

Atosa YPF9045 Three Door Undercounter Freezer 1800mm

The Atosa YPF9045 is a commercial three door undercounter freezer offering 390 litres of frozen storage across a 1800mm wide footprint, purpose-built for the demands of busy commercial kitchens and food service operations. Constructed with stainless steel on both the interior and exterior, it features smooth radius corners throughout for easy cleaning, a galvanised back panel, and high-performance C5H10 zero-ODP insulation foam for excellent thermal efficiency.

Powered by a top-quality European Embraco or Aspera compressor and EBM fan motor, and controlled via a Carel or Dixell digital controller, the YPF9045 delivers precise and reliable temperature management between -18°C and -22°C. Its Climate Class 4 rating means it operates effectively in ambient temperatures up to 43°C, making it equally suited to hot commercial kitchen environments. Castors are included as standard for straightforward repositioning and cleaning access.

Key Benefits

• 390-litre capacity across three solid doors provides ample organised frozen storage for high-volume food service operations.
• Climate Class 4 certification ensures dependable performance in ambient temperatures up to 43°C, ideal for demanding kitchen environments.
• All-European internal components including Embraco or Aspera compressor and EBM fan motor deliver consistent, energy-efficient refrigeration.
• Automatic defrost and self-evaporating condensation management reduce manual maintenance requirements and operational downtime.
• Digital controller (Carel or Dixell) allows precise temperature monitoring and straightforward adjustments during service.
• Fan-assisted cooling ensures even temperature distribution throughout the entire cabinet, protecting frozen stock quality.
• Castors included as standard allow the unit to be moved easily for cleaning, repositioning, or kitchen reconfiguration.
• Stainless steel interior and exterior with smooth radius corners simplifies cleaning and supports strict food hygiene compliance.
• R290 refrigerant and zero-ODP C5H10 insulation foam make this a more environmentally responsible choice for commercial refrigeration.

Key Features

• Three solid doors with 390-litre total storage capacity
• Stainless steel interior and exterior construction with galvanised back panel
• Smooth radius corners inside and out for thorough, hygienic cleaning
• C5H10 insulation foam with zero ODP (Ozone Depletion Potential) and zero emissions
• R290 refrigerant (per supplier specification)
• European-sourced components: Embraco or Aspera compressor and EBM fan motor
• Carel or Dixell digital controller for precise temperature management
• Operating temperature range: -18°C to -22°C
• Climate Class 4 rated for ambient temperatures up to 43°C
• Fan-assisted (fan-forced) cooling for even temperature distribution
• Automatic defrost function
• Self-evaporating condensation management system

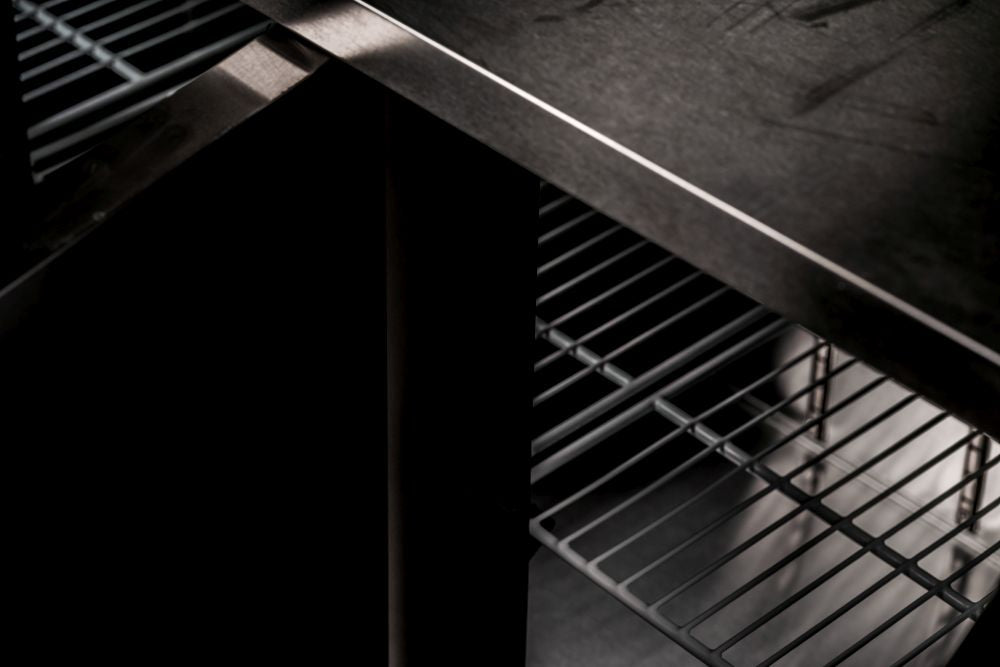

• Four adjustable wire shelves included
• Side-mounted compressor location
• Interior lighting
• Castors included as standard for easy mobility
• Requires 100mm clearance around the unit for adequate air ventilation
• Power consumption: 400 watts
• Dimensions: 1800mm (W) x 600mm (D) x 838mm (H)
• Unit weight: 81kg
• Undercounter installation type, suitable for integration beneath standard bench heights

Specifications

• Width (mm): 1800
• Depth (mm): 600
• Height (mm): 838
• Weight (kg): 81
• Colour: Stainless
• Gas Type: R290
• Packed Width (mm): 1854
• Packed Depth (mm): 654
• Packed Height (mm): 867
• Shipping Weight: 111
• Capacity (Litres): 390
• Material: Stainless Steel
• Door Type: Solid door
• No. of Doors: 3
• No. of Shelves: 4
• Shelving Type: Adjustable wire
• Country of Origin: China
• Warranty (months): 24
• Energy Rating: A
• Temperature Range: -18°C to -22°C
• Refrigeration Type: Undercounter Freezer
• Compressor Location: Side mounted
• Defrost Type: Automatic
• Climate Class: 4 (Tropical 43°C)
• Cooling Type: Fan-assisted
• Installation Type: Undercounter
• Interior Lighting: Yes
• Display Type: Solid Door
