Overview

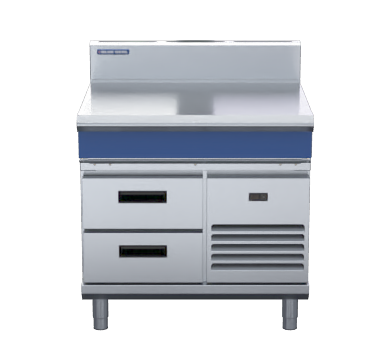

Blue Seal B90-RB Evolution Series 900mm Bench Top with Refrigerated Base

The Blue Seal B90-RB Evolution Series pairs a heavy-duty 900mm commercial bench top with a self-contained refrigerated base, purpose-built for busy Australian commercial kitchens. Manufactured in New Zealand from 304 stainless steel, the unit is tropical climate rated and operates across a wide temperature range of -2°C to +8°C, making it equally suited to hot kitchen environments and high-volume service periods.

A suite-matched modular design integrates cleanly with other Evolution Series equipment, while practical engineering details including a front-removable condensing unit, no condensate drain requirement, and tool-free replaceable magnetic gaskets keep maintenance simple and downtime to a minimum. The refrigerated base houses two GN 1/1 drawers, each accommodating 100mm deep pans, giving kitchen staff fast, organised access to prepped ingredients without breaking the cold chain.

Key Benefits

• Tropical climate rated refrigeration holds safe temperatures between -2°C and +8°C even in hot, demanding kitchen environments.
• Two GN 1/1 drawers fitted with heavy-duty European telescopic guides allow chefs rapid, organised access to prepped ingredients during service; each drawer accommodates 100mm deep pans.
• No condensate drain is required, and defrost water evaporates automatically, simplifying installation and reducing ongoing maintenance.
• The condensing unit pulls out through the front of the cabinet, so servicing can be carried out without displacing the unit from the bench run.
• Magnetic drawer gaskets can be swapped out without any tools, minimising downtime and lowering the cost of routine upkeep.
• An automatic defrost cycle keeps the evaporator clear and the unit running efficiently without manual intervention.
• Suite-matched modular base design pairs seamlessly with other Evolution Series 900mm units for a consistent, professional bench run.
• Adjustable front feet and rear rollers make levelling and repositioning straightforward on uneven kitchen floors.
• 50mm fully foamed CFC-free insulation combined with a ventilated R134a refrigeration system delivers consistent, energy-efficient temperature holding.

Key Features

• 900mm wide bench top unit with integrated refrigerated base; overall dimensions 900mm W x 812mm D x 1085mm H (including 165mm splashback)
• 3.5mm thick compound work surface bench top
• 1.5mm 304 stainless steel top surface with welded 1.5mm stainless steel bull nose
• 2.0mm galvanised steel backing
• Splashback and side panels in 1.2mm stainless steel; splashback height 165mm
• 304 stainless steel exterior and interior throughout
• Two GN 1/1 drawers, each with 100mm deep pan capacity
• Heavy-duty European telescopic drawer guides fitted to each drawer
• Magnetic drawer gaskets that are replaceable without tools
• Self-contained, suite-matched modular base compatible with the full Evolution Series lineup
• Ventilated refrigeration system using R134a refrigerant
• Temperature range -2°C to +8°C; tropical climate rated
• Digital electronic thermostat with digital display control
• 50mm fully foamed CFC-free insulation
• Anti-corrosion treated evaporator
• Automatic defrost cycle with automatic evaporation of defrost water; no condensate drain required
• Condensing unit removable from the front of the cabinet for straightforward servicing
• 63mm diameter legs constructed from 1.2mm 304 stainless steel, rated heavy-duty, with adjustable front feet and rear rollers
• Easy-clean interior design
• Power supply: 220-240V AC, 50Hz, single phase (1P+N+E), 1.8A, supplied with 3-pin 10A plug cordset
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 181
• Packed Width (mm): 995.0
• Packed Height (mm): 1260.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.090719000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Undercounter
• Control Type: Digital Thermostat
• Temperature Control: Digital | -2°C to +8°C
• Mounting Type: Benchtop
• Display Type: Digital Electronic
• Fuel Type: Electric
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230V Single Phase
