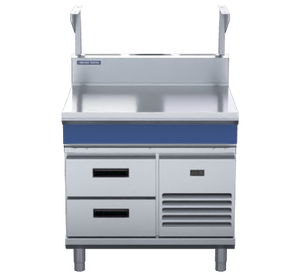

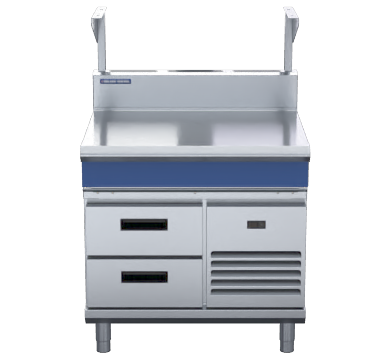

Blue Seal Evolution Series B90S-RB - 900mm Bench Top With Salamander Support – Refrigerated Base

Overview

Blue Seal Evolution Series B90S-RB Refrigerated Drawer Base with 900mm Benchtop and Salamander Support

The Blue Seal Evolution Series B90S-RB is a 900mm wide stainless steel preparation unit that pairs an integrated salamander support structure with a refrigerated drawer base, bringing cold storage and vertical cooking equipment together in a single footprint. Built in New Zealand from 304 stainless steel and tropically rated, it is engineered to meet the pace and hygiene demands of high-volume commercial kitchens where bench space and refrigerated access must work side by side.

The refrigerated base incorporates a pair of GN 1/1-format drawers, each sized to accept pans up to 100mm in depth, keeping portioned ingredients at arm's reach throughout service without the need to open a full-height door. A 3.5mm thick compound work surface sits above, offering a solid preparation area, while adjustable front feet and rear rollers simplify positioning and levelling on the kitchen floor.

Key Benefits

• Integrated salamander support keeps the cooking line compact by making full use of vertical space above the preparation surface
• A pair of GN 1/1 refrigerated drawers, each accepting 100mm deep pans, allows rapid ingredient access during service without disturbing a full-height cabinet door
• Tropical climate rating maintains consistent cooling output in hot, humid kitchen environments
• A broad operating range of -2°C to +8°C covers both chilling and holding requirements across a wide variety of ingredients
• The 3.5mm thick compound work surface resists warping and surface damage under heavy daily preparation workloads
• Adjustable feet at the front combined with rear rollers make repositioning and levelling straightforward for kitchen staff
• A digital electronic thermostat with variable temperature control gives operators precise, reliable management of cold storage conditions
• A ventilated refrigeration system running R134a refrigerant delivers even, consistent cooling throughout the drawer cavity
• 304 stainless steel construction throughout supports hygiene, easy cleaning and long-term durability in commercial use

Key Features

• 900mm wide benchtop with dedicated salamander support structure
• Refrigerated base housing two GN 1/1-format drawers, each accommodating pans up to 100mm in depth
• Temperature range: -2°C to +8°C
• Tropical climate rated for reliable performance in hot and humid conditions
• Ventilated refrigeration system using R134a refrigerant
• 3.5mm thick compound work surface
• 165mm standard splashback included
• Digital electronic thermostat with variable temperature control
• 304 stainless steel construction throughout
• Adjustable front feet and rear rollers for easy positioning and levelling
• Benchtop/undercounter installation type
• Power supply: 220-240 Vac, 50Hz, single phase, 1P+N+E, 10A plug cordset fitted
• Current draw: 1.8A
• Volume: 1.02m³
• Packed weight: 186kg
• Country of origin: New Zealand
• Designed for easy cleaning, installation and servicing

See the full Blue Seal Evolution Series range, view similar options in Stainless Steel Bench with Splashback, or browse the wider Stainless Steel category.

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1770
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm Standard)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Undercounter
• Control Type: Digital Thermostat
• Temperature Control: Variable Radiant Heat
• Mounting Type: Benchtop
• Display Type: Digital Electronic
• Fuel Type: Electric
• Number of Burners: 2
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230V Single Phase
