Overview

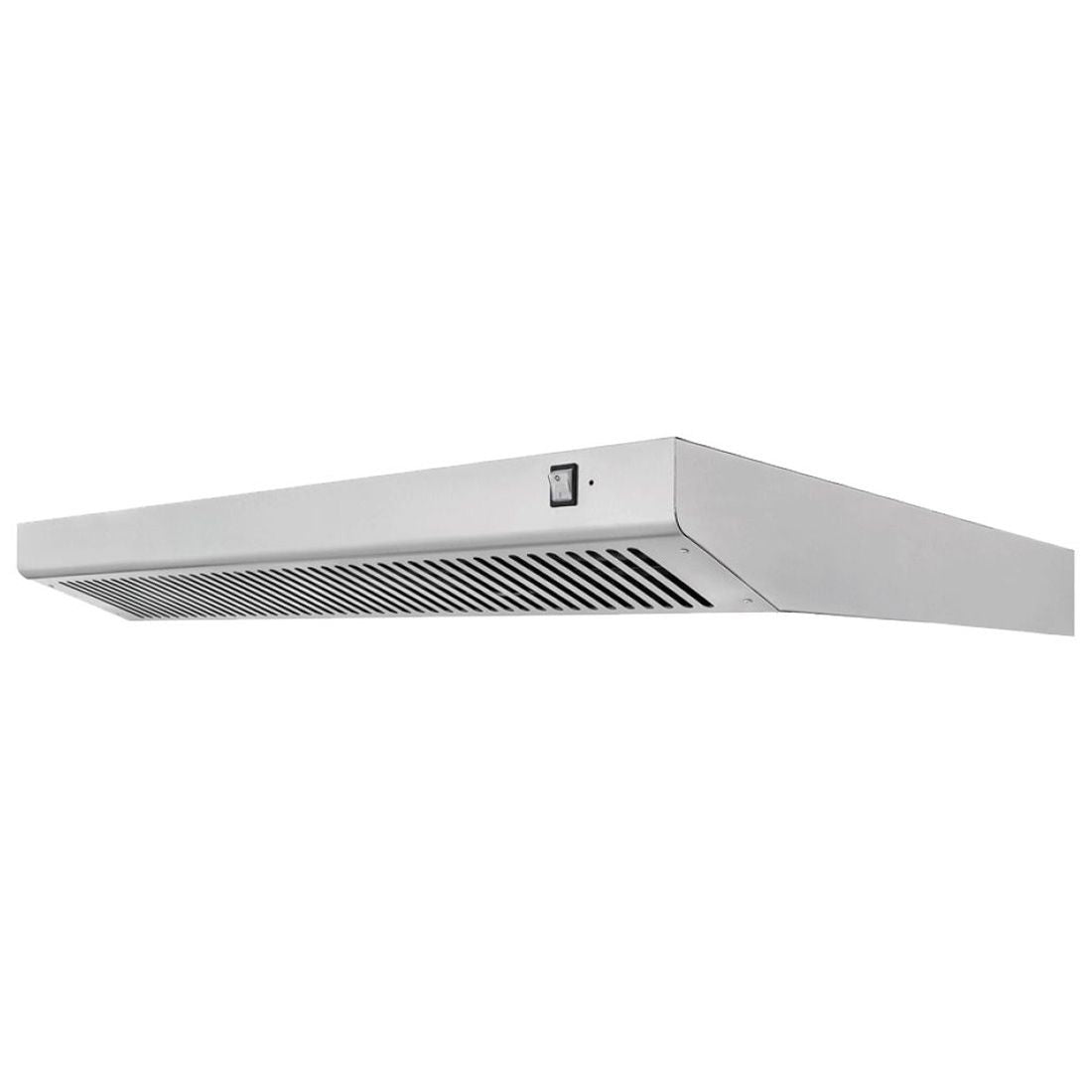

Primax KT4-44MS Stainless Steel Extraction Hood with Motor and Speed Regulator

The Primax KT4-44MS is a stainless steel extraction hood purpose-built to ventilate the TP-2 and TP-2-1 pizza ovens. Featuring an integrated motor and speed regulator, it delivers a 400 m³/h airflow rate and is rated for applications with a combined load of up to 8 kW, making it a practical match for busy commercial pizza oven installations.

Running on a 240V/60W supply and drawing just 10A, the KT4-44MS is an energy-efficient ventilation solution with a low-profile 120 mm height that suits tight overhead clearances. UL listed for safety compliance, it comes backed by a one-year parts and labour warranty, giving operators confidence in long-term reliable performance.

Key Benefits

• Dedicated compatibility with the TP-2 and TP-2-1 pizza ovens ensures a precise fit and reliable extraction without the need for custom modifications.
• A 400 m³/h flow rate efficiently removes heat, steam and cooking odours, maintaining a more comfortable and safer kitchen environment.
• The integrated speed regulator allows operators to dial extraction up or down to match the actual oven load, reducing energy use during quieter periods.
• Stainless steel construction resists corrosion in high-heat, high-humidity kitchen environments and wipes down quickly for straightforward daily cleaning.
• At just 60W power draw, the motor contributes minimal additional load to kitchen electrical circuits while maintaining effective ventilation.
• UL listing confirms the unit meets recognised safety and compliance standards, supporting peace of mind for operators and venue compliance requirements.
• A one-year parts and labour warranty provides cost protection and reassurance during the critical early period of operation.

Key Features

• Stainless steel hood construction for durability, hygiene and ease of cleaning
• Integrated extraction motor with built-in speed regulator
• Designed specifically to suit Primax TP-2 and TP-2-1 pizza ovens
• Airflow rate of 400 m³/h
• Rated for applications up to a combined total of 8 kW
• Electrical supply: 60W, 240V, 10A
• Low-profile design at 120 mm height
• Dimensions: 1100 mm wide x 1110 mm deep x 120 mm high
• UL (Underwriters Laboratories) listed
• 1-year parts and labour warranty
• Proving chamber not included

Specifications

• Width (mm): 1100
• Depth (mm): 1110
• Height (mm): 120
• Weight (kg): 86.25
• Packed Width (mm): 1150
• Packed Depth (mm): 1200
• Packed Height (mm): 250
• Shipping Weight: 14
• Shipping Cubic: 0.345000000m3
• Power Delivery: 60W ; 240V ; 10A
• Power (kW): 60
• Warranty (months): 1 Year Parts and Labour
