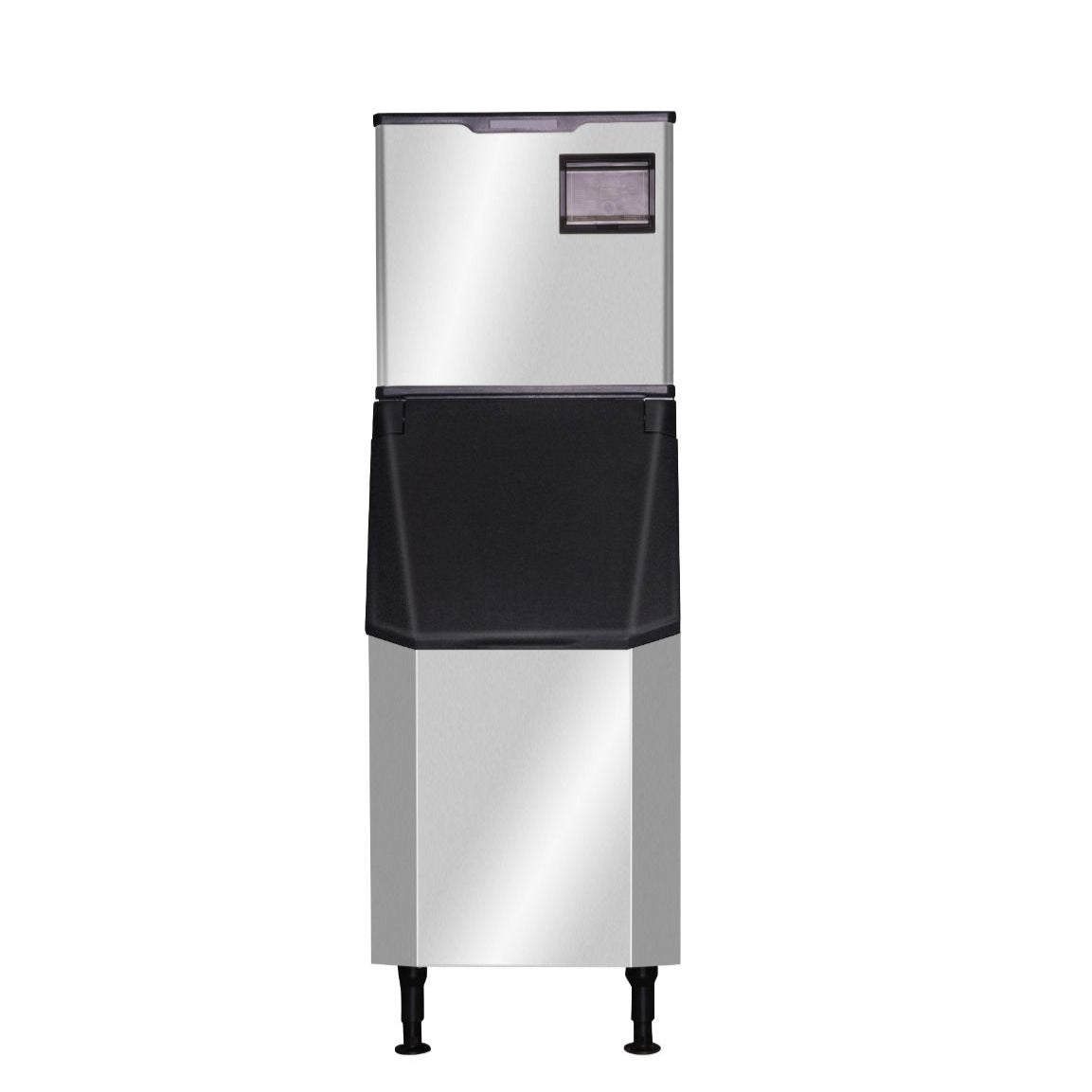

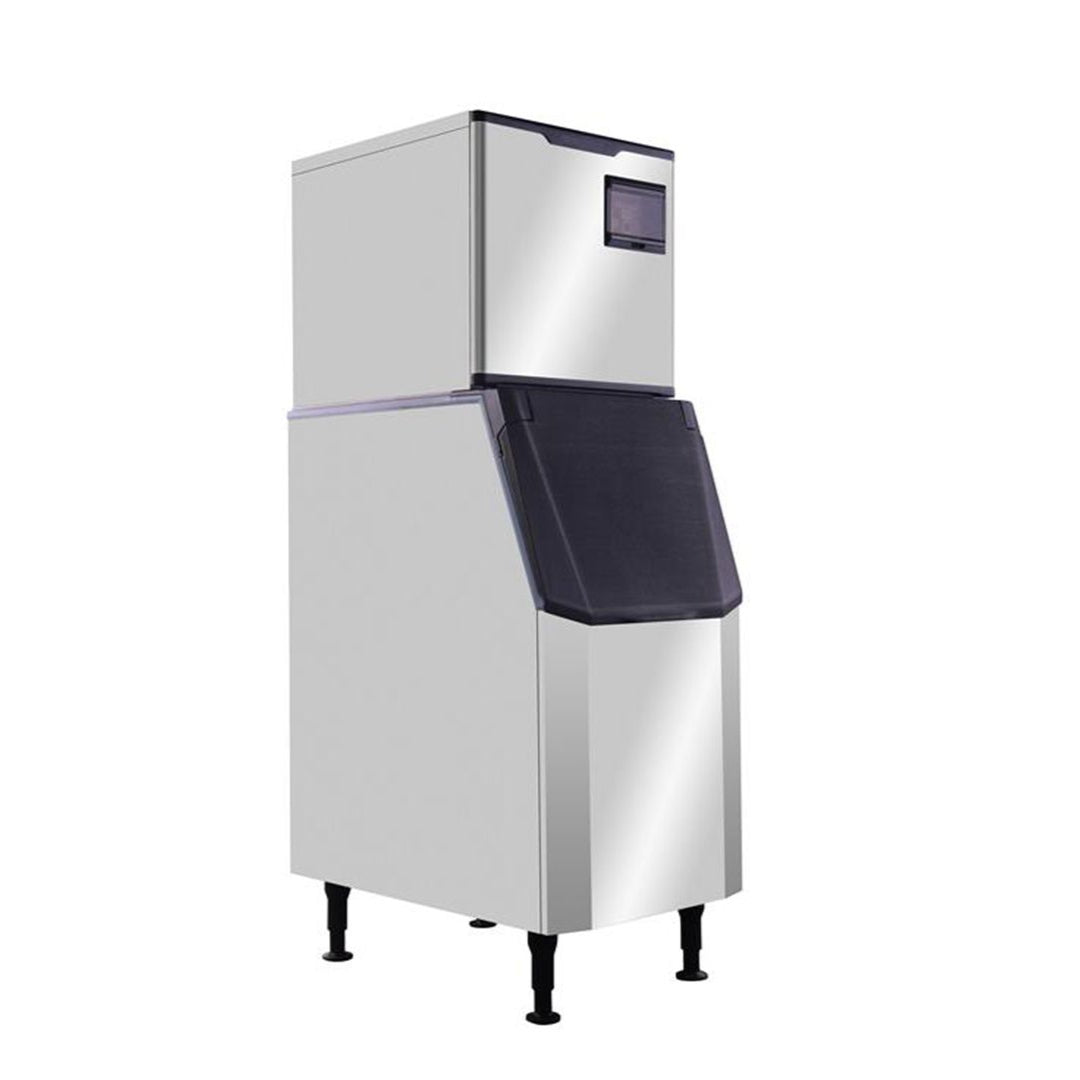

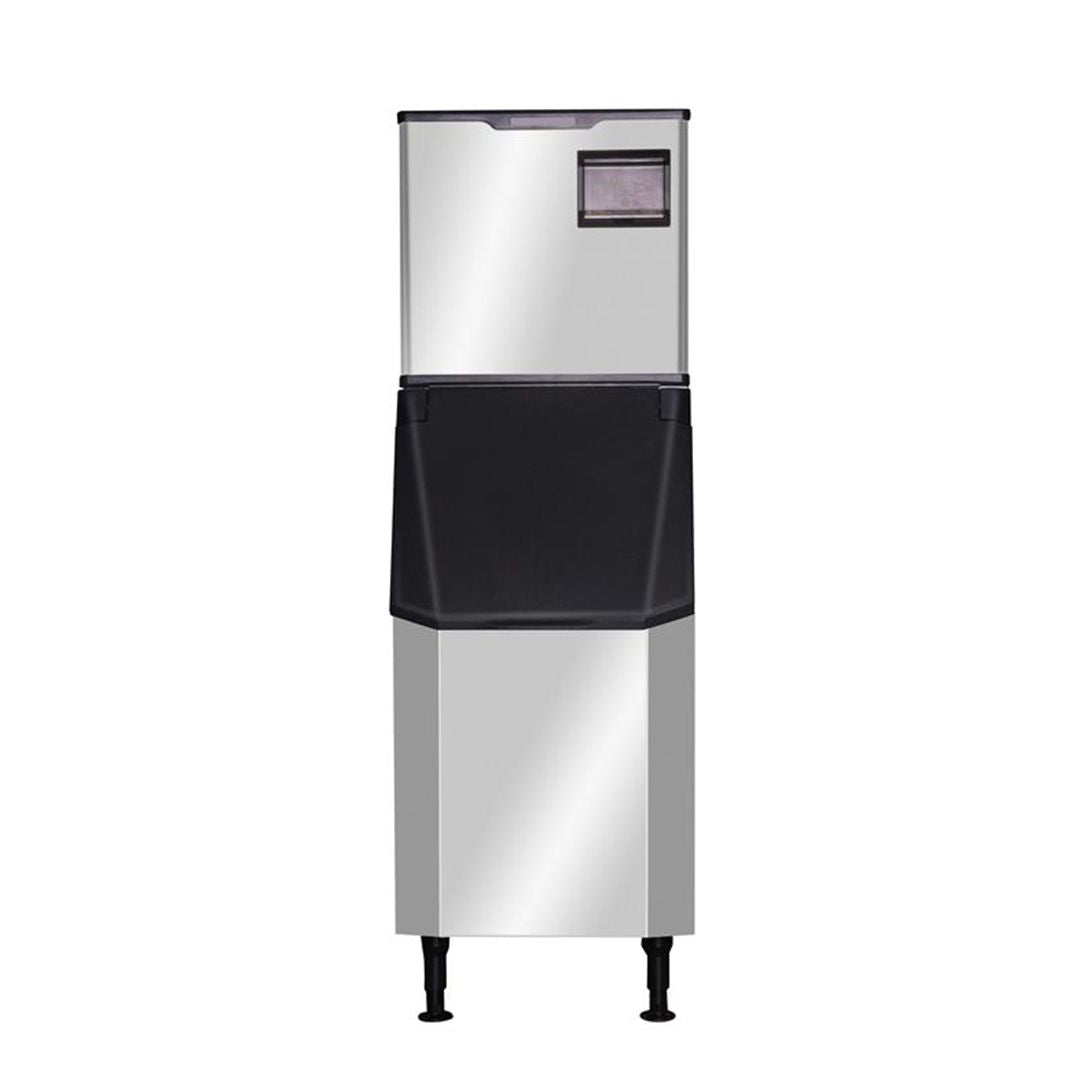

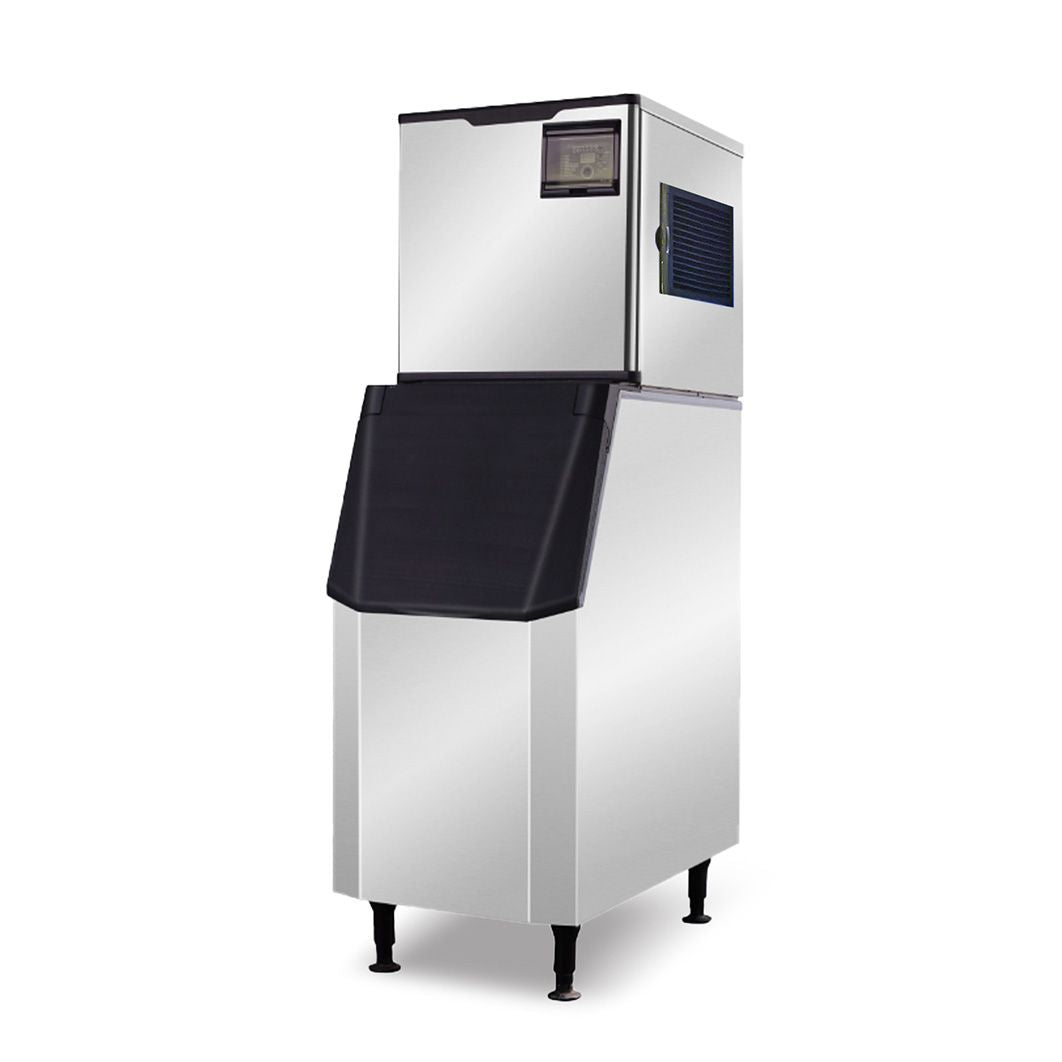

Blizzard SN-145C Professional Crescent Ice Maker with Bin 145kg/Day

The Blizzard SN-145C is a high-output commercial crescent ice maker designed to meet the demands of busy restaurants, hotels, bars, and catering operations. Producing up to 145kg of crescent-shaped ice every 24 hours and storing approximately 125kg in its integrated bin, this unit delivers a continuous, ready-to-use ice supply throughout service periods. Running on a standard 240V supply, the machine uses R404A refrigerant and supports both air-cooled and water-cooled condenser configurations to suit different installation environments.

A spray-type evaporator is employed to achieve superior ice clarity and structural hardness, forming consistently clear, hard crescent cubes measuring 13 x 30 x 35mm that are ideal for drinks service, food presentation, and banqueting use. Key components include a U.S. Morrill water pump, German BM-Pabst cooling fans, Japanese Saginomiya solenoid and hydraulic valves, and a Danish Danfoss expansion valve and dryer filter, all of which contribute to reliable long-term performance. The unit is Watermark certified to Australian water safety standards and is backed by a 2-year parts and labour warranty.

Key Benefits

• Produces up to 145kg of crescent ice per day, ensuring a consistent supply even during peak service periods
• 125kg insulated storage bin keeps ice readily available without interruption between production cycles
• Dual air and water-cooled condenser options provide installation flexibility across different venue layouts and climates
• Spray-type evaporator technology results in cubes that are notably clear and hard, melting slowly and presenting well in beverages
• Premium international components — including Morrill, BM-Pabst, Saginomiya, and Danfoss parts — support durability and long service life
• Watermark certification provides confidence in hygienic, safe ice production compliant with Australian standards
• Gravity drain system simplifies wastewater removal without the need for a pump
• 2-year parts and labour warranty reduces the risk of unexpected maintenance costs

Key Features

• Crescent ice shape: 13 x 30 x 35mm, producing clear, hard cubes suitable for beverages and food service

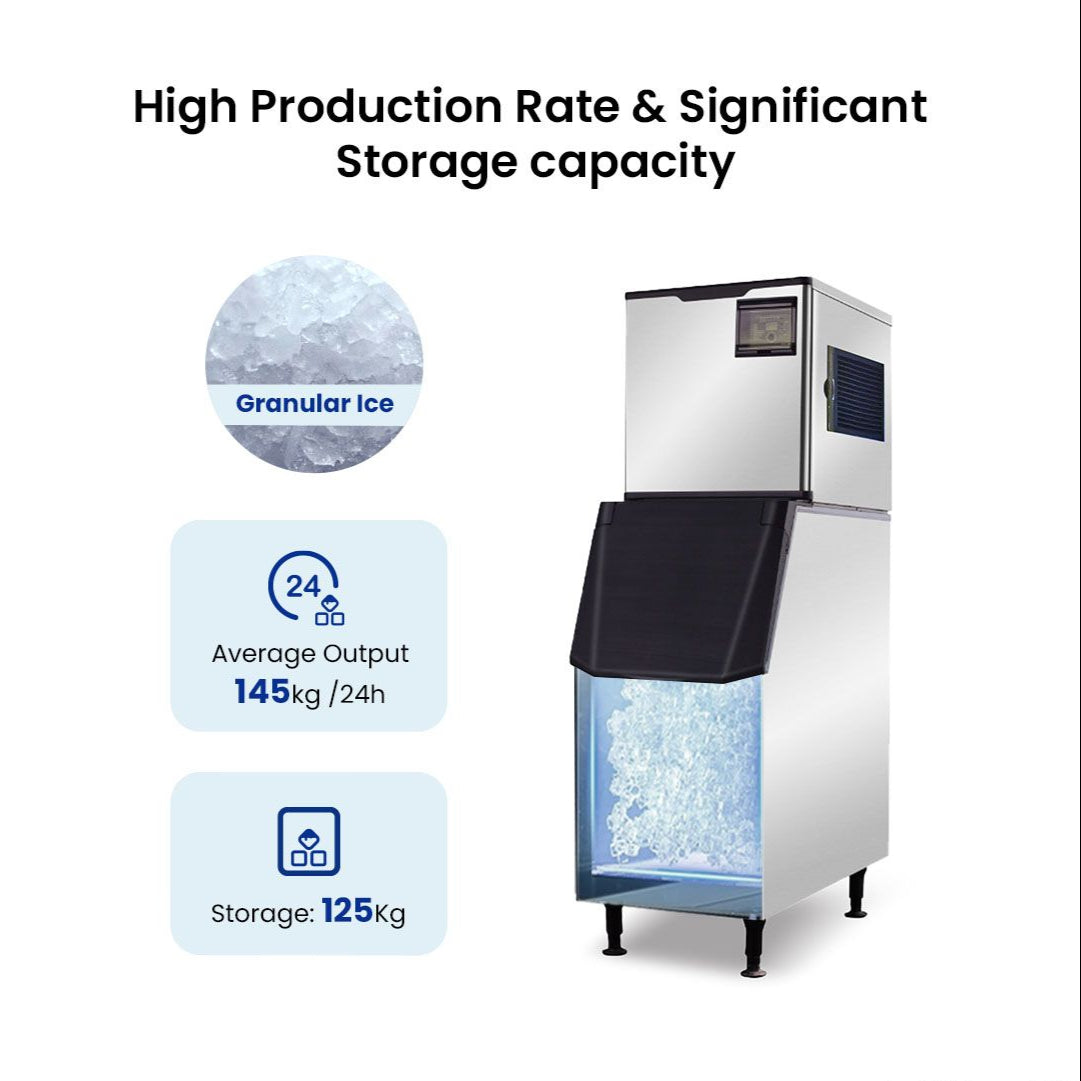

• Ice output: up to 145kg per 24 hours
• Integrated storage bin capacity: approximately 125kg
• Condenser type: air-cooled or water-cooled (dual option)
• Refrigerant: R404A
• Power supply: 220-240V / 50Hz, 10A
• Power consumption: 1420W (main unit); 770W also cited across sources
• Spray-type evaporator utilised for improved cube clarity and density
• U.S. Morrill water pump for reliable water circulation

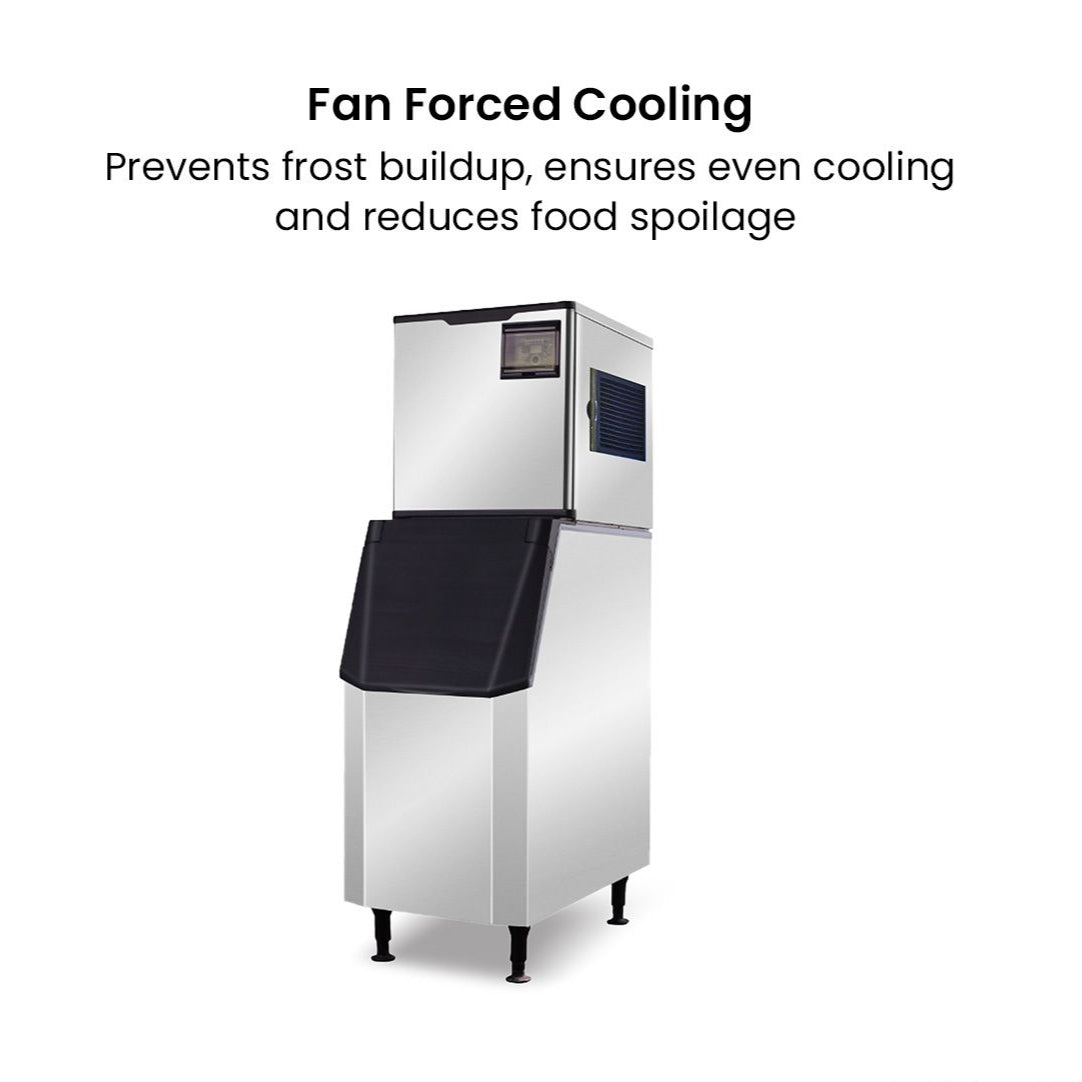

• German BM-Pabst fans for efficient heat dissipation
• Japanese Saginomiya solenoid and hydraulic valves for precise refrigerant control
• Danish Danfoss expansion valve and dryer filter for optimal refrigerant flow and moisture management
• Gravity drain only wastewater removal system
• Main machine shipping weight: 80kg gross; unpackaged machine weight: 70kg net
• Ice bin shipping weight: 40kg gross; unpackaged bin weight: 35kg net
• Packaging dimensions: 600 x 670 x 600mm (main unit) + 625 x 925 x 1110mm (bin)
• Container loading: 26 units per 20GP / 52 units per 40GP
• Watermark certified to Australian water safety standards
• 2-year parts and labour warranty

Specifications

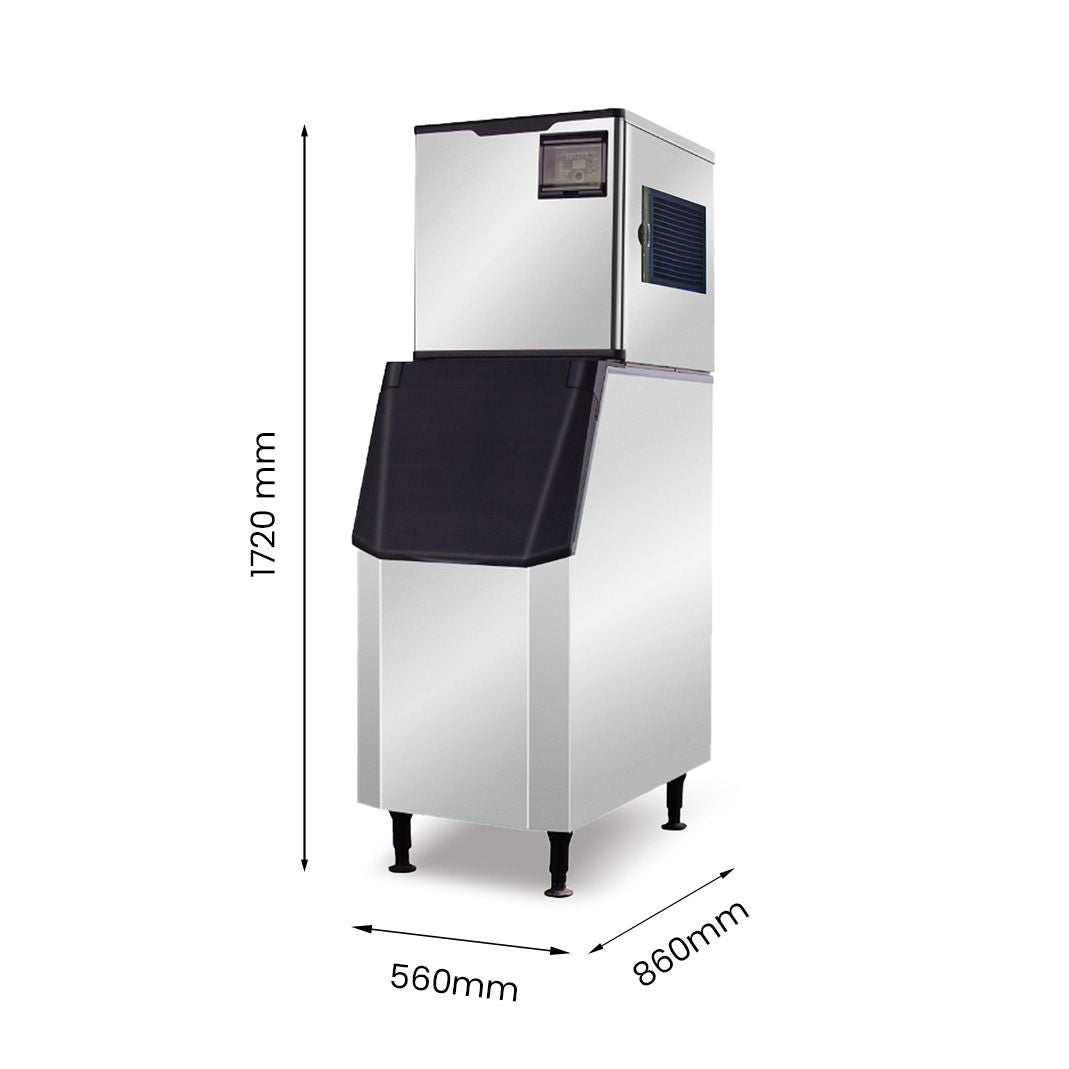

• Width (mm): 560
• Depth (mm): 860
• Height (mm): 1720
• Weight (kg): 105
• Packed Width (mm): 670
• Packed Depth (mm): 600
• Packed Height (mm): 1110
• Shipping Weight: 105
• Power Delivery: 220-240V/50HZ, 1420W/10A Output
• Power (kW): 220
• Warranty (months): 2 Years Parts and Labour
• No. of Doors: 5711
• Mobility: 5809
• Ice Type: Crescent Ice
