Overview

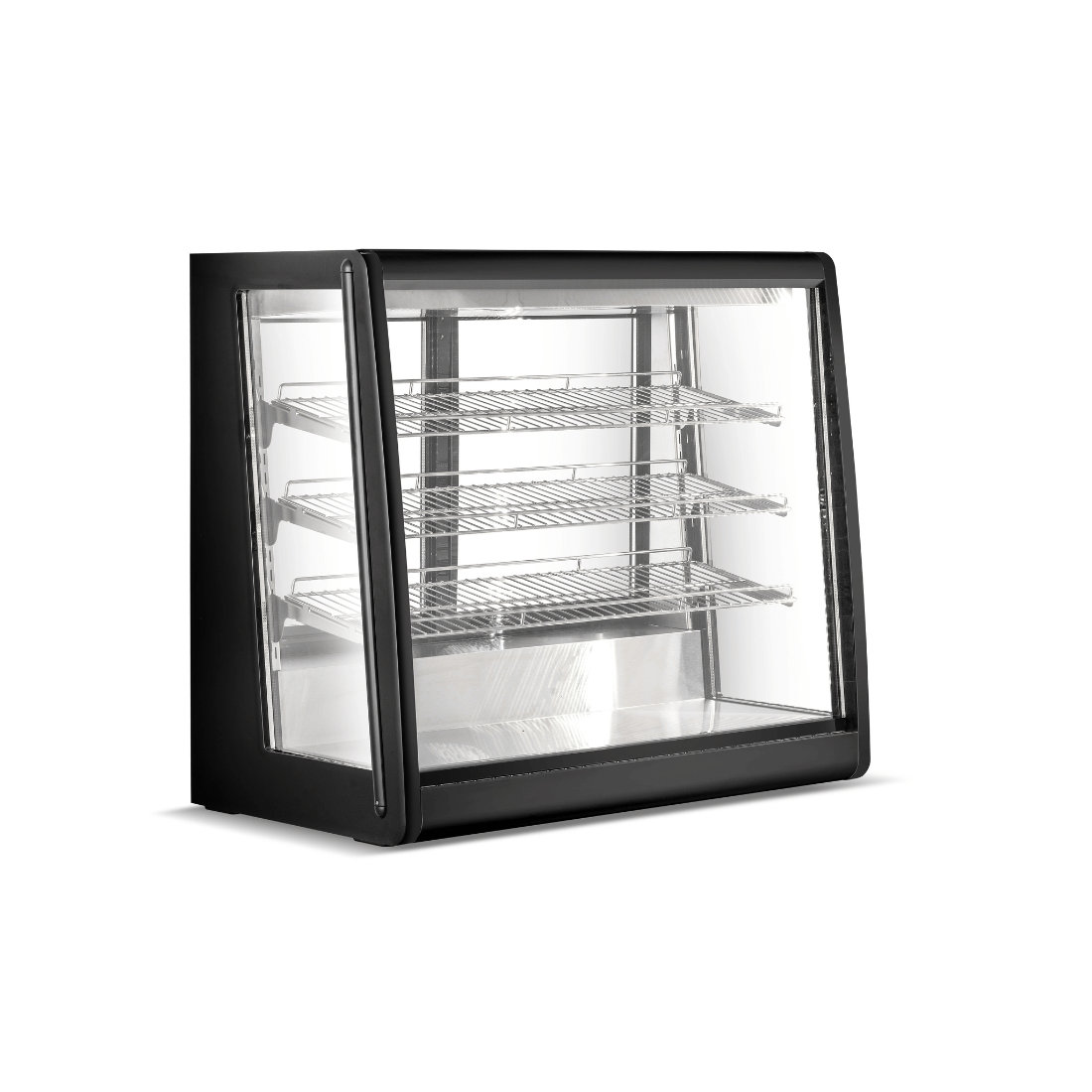

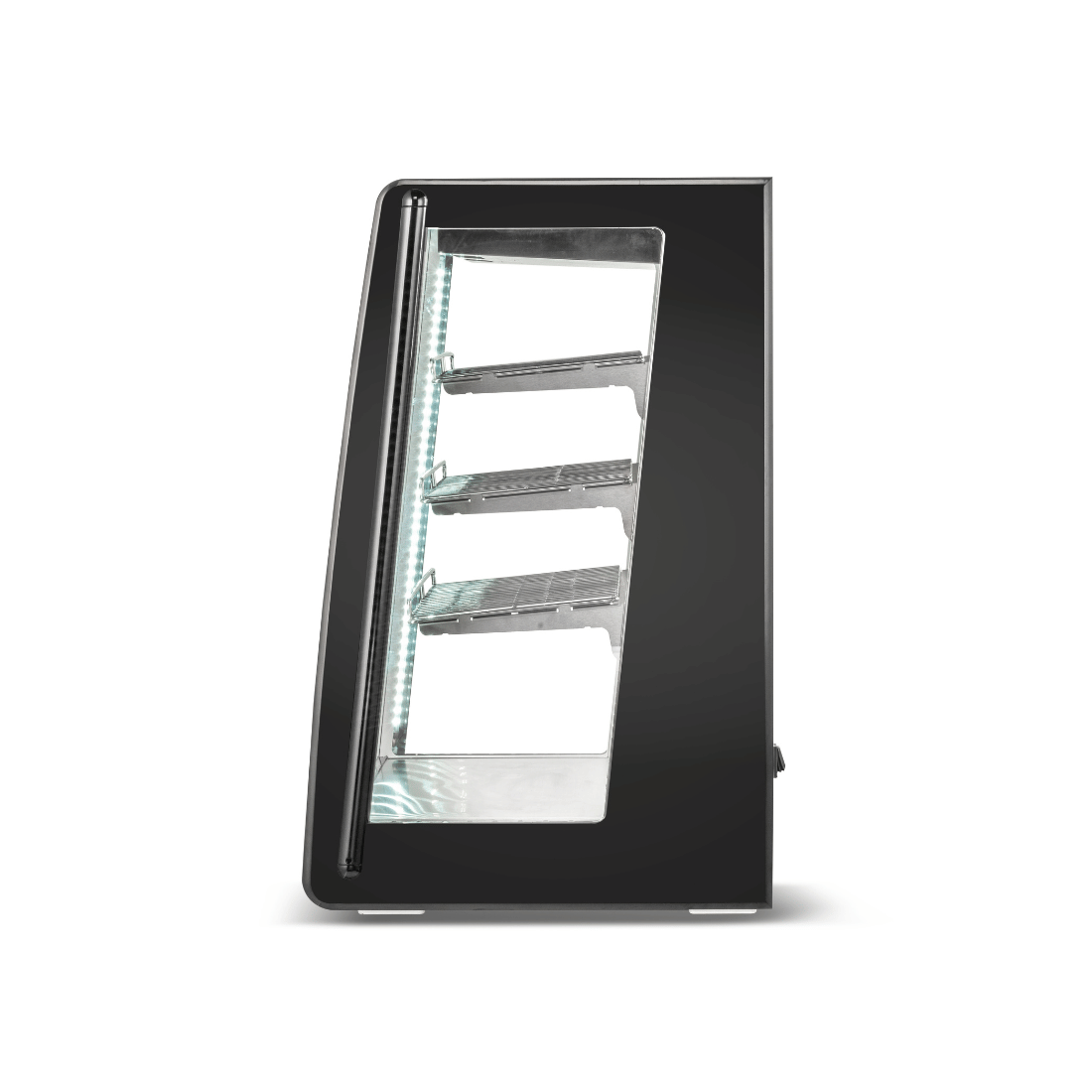

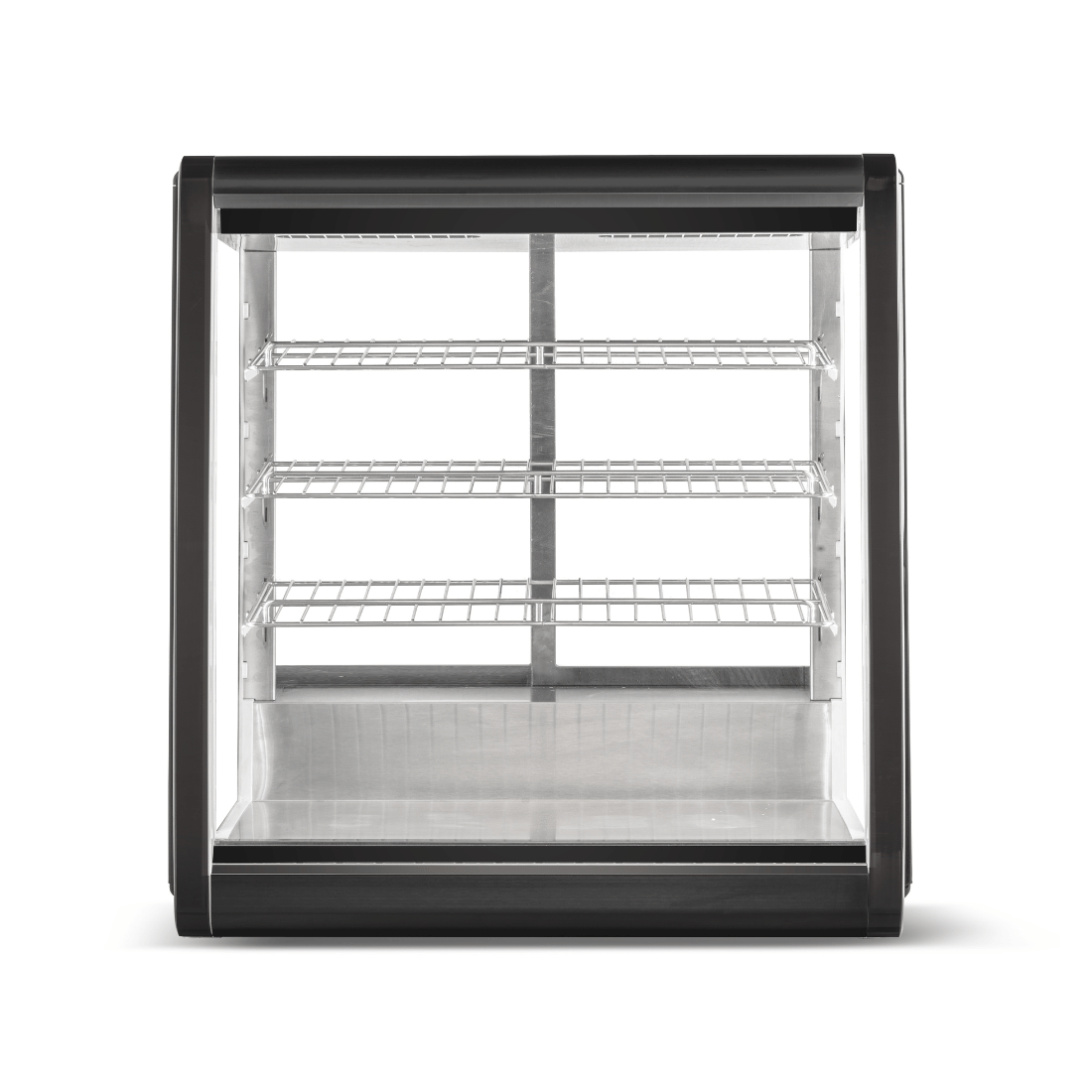

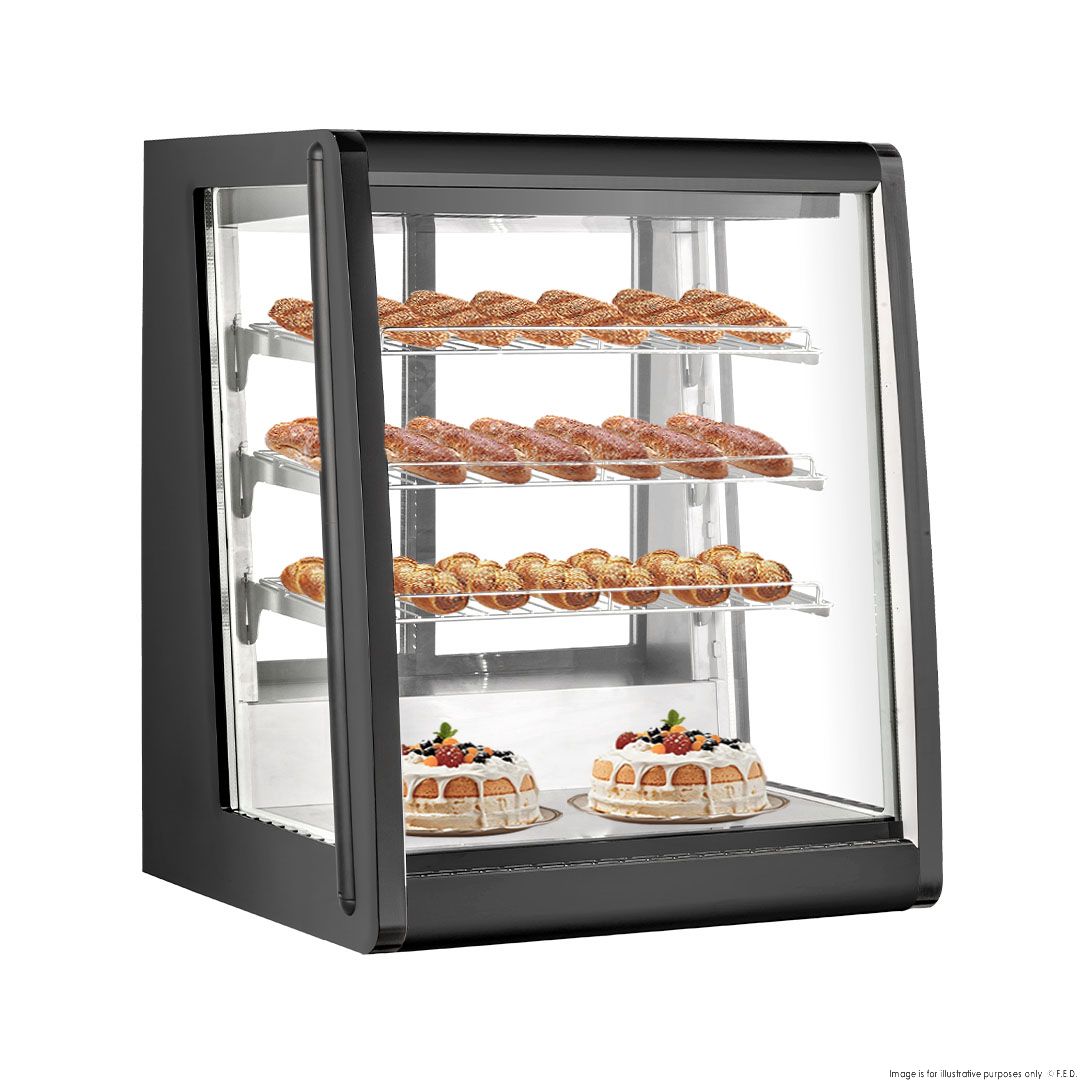

Bonvue CTA-246 Chilled Angled Counter-Top Food Display

The Bonvue CTA-246 is a 246-litre chilled angled counter-top food display designed for professional hospitality environments including cafés, bakeries, restaurants, and commercial food service operations. Its generous display area and additional shelf give it a clear advantage over comparable units, letting operators present a wider variety of chilled products at once without sacrificing counter space.

Built with double tempered glass on all sides, dual-sided LED lighting, and a digital temperature controller covering 2°C to 12°C, the CTA-246 combines food safety compliance with attractive front-of-house merchandising. The use of natural R290 refrigerant paired with a 9 or 10-star GEMS energy rating makes it one of the more environmentally responsible and cost-efficient options in its class.

Key Benefits

• Larger-than-average display area with an extra shelf allows more product variety to be showcased at a single glance, supporting stronger impulse purchasing.
• R290 natural refrigerant and a 9 or 10-star GEMS energy rating reduce running costs and environmental impact during daily operation.
• Digital temperature control maintains a precise 2°C to 12°C range, supporting food safety compliance throughout busy service periods.
• Dual-sided LED lighting illuminates contents from both sides, creating an appealing presentation that draws customer attention.
• Three-side air ducts manage condensation effectively, keeping all glass panels clear so merchandise remains clearly visible at all times.
• Automatic defrost prevents ice build-up without staff intervention, reducing maintenance time during high-volume trading periods.
• Rear sliding doors allow quick, smooth restocking from behind the counter without interrupting customer-facing display.
• Stainless steel body and double tempered glass construction provide durability suited to continuous commercial use.
• Fixed leg mounting keeps the unit stable on countertops, while the compact footprint at 975 mm wide suits a variety of service counter configurations.

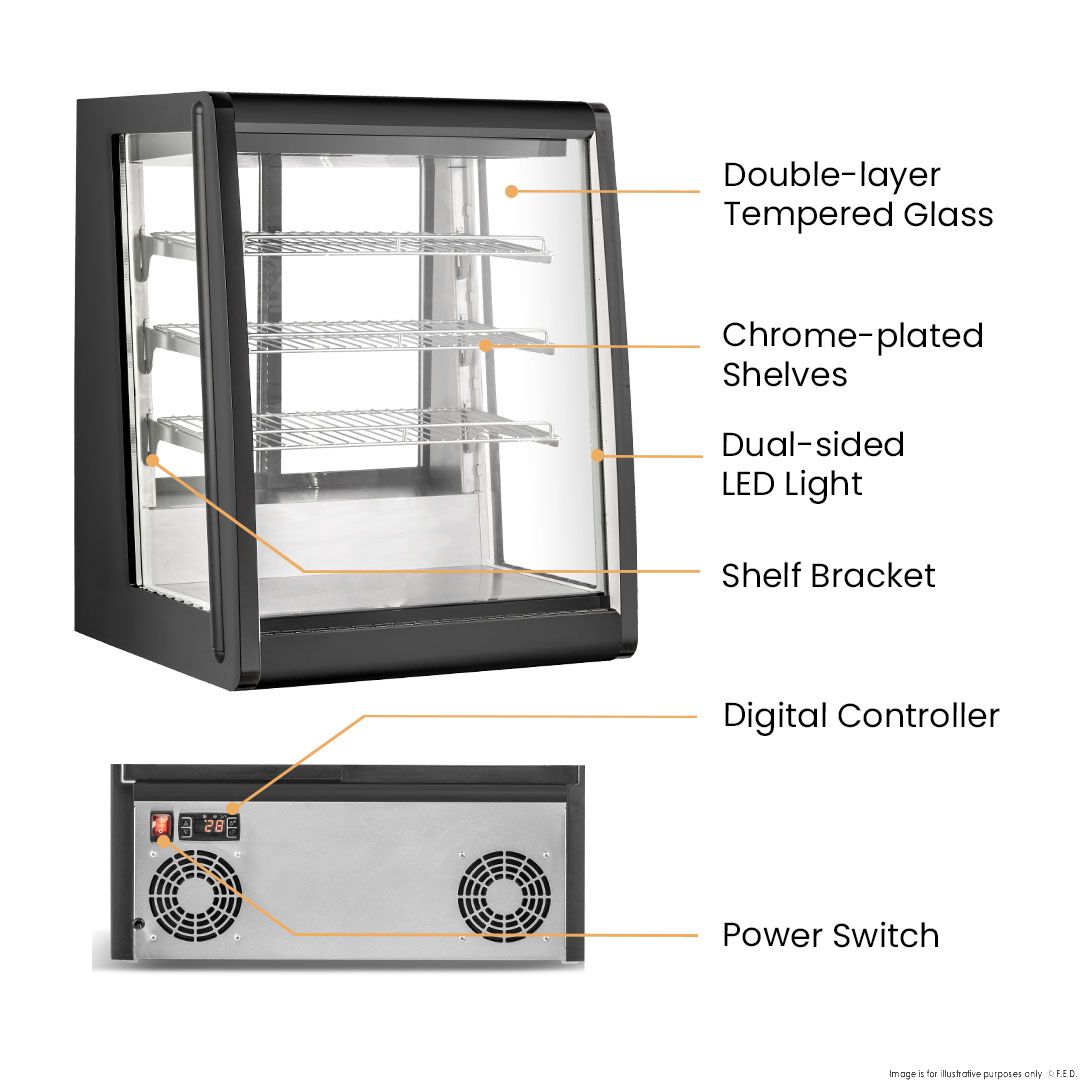

Key Features

• 246-litre capacity with an angled counter-top display configuration
• Natural R290 refrigerant with a 9 or 10-star GEMS energy rating
• Digital temperature controller for precise temperature adjustment between 2°C and 12°C
• Operating ambient conditions: 30°C / 50% RH
• Three adjustable chrome-plated shelves for flexible product arrangement
• Dual-sided LED lighting for bright, even illumination of displayed items
• All-round double tempered glass enclosure for thermal efficiency and safety
• Ventilated cooling system for consistent, even refrigeration throughout the cabinet
• Automatic defrost function to prevent ice build-up and reduce maintenance
• Three-side air ducts for effective condensation management and unobstructed visibility

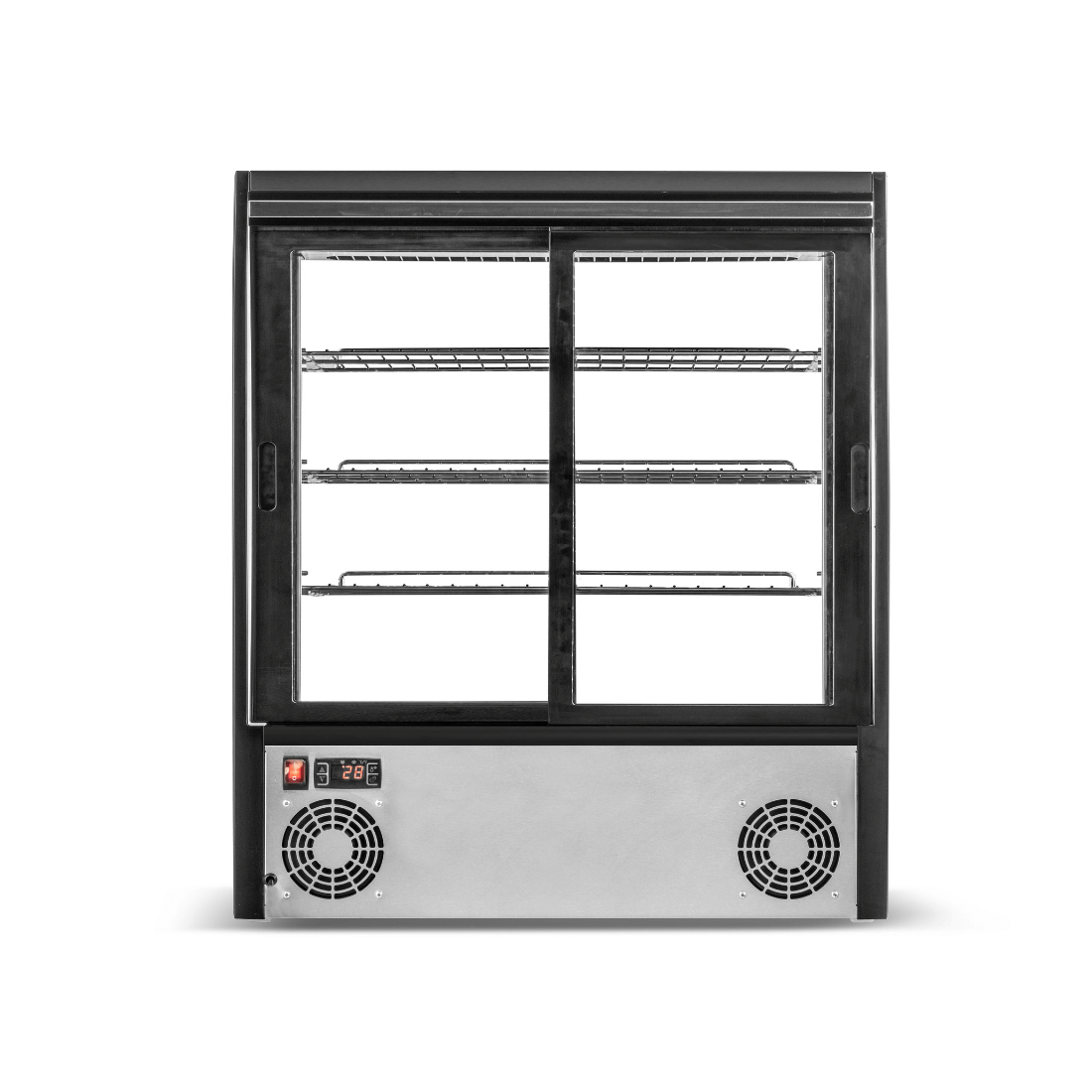

• Two rear sliding doors for convenient staff access during restocking
• Stainless steel body construction
• 240V / 215W / 10A power supply
• Fixed mounting with legs

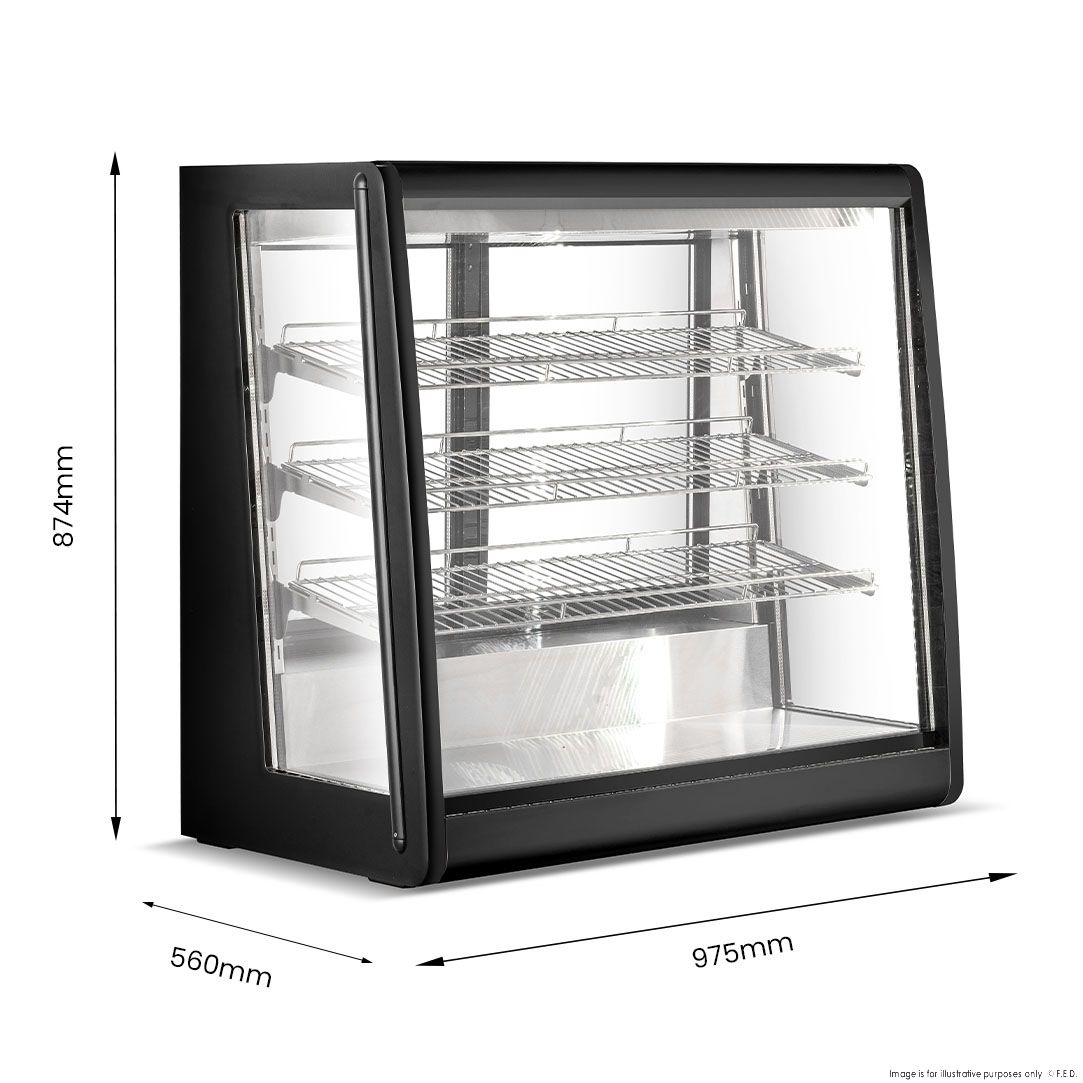

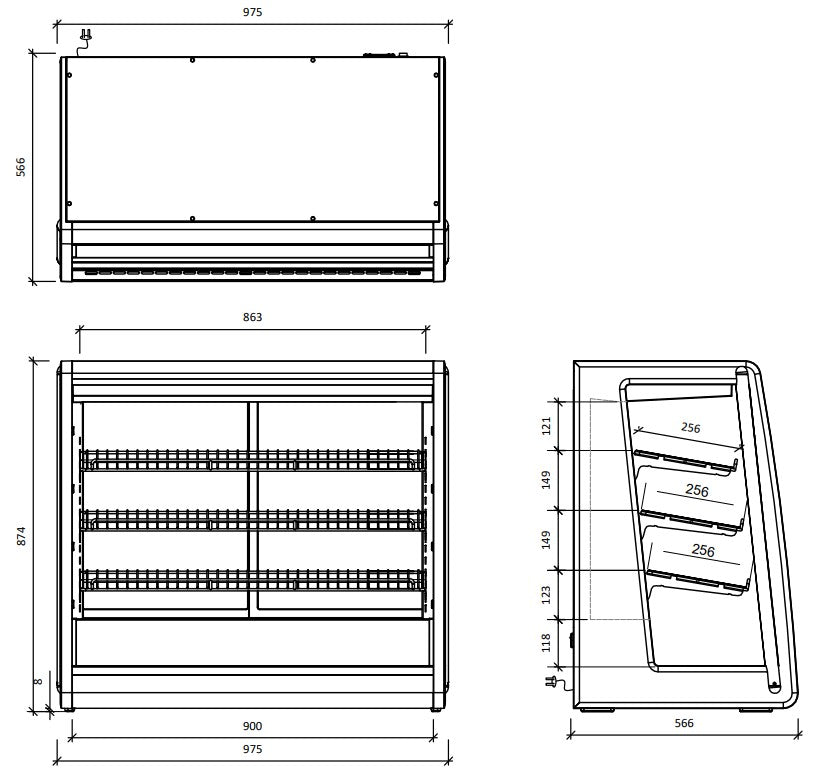

• Dimensions: 975 mm (W) x 560 mm (D) x 874 mm (H); weight 80 kg
• 1-year parts and labour warranty

Specifications

• Width (mm): 975
• Depth (mm): 560
• Height (mm): 874
• Weight (kg): 80
• Packed Width (mm): 630
• Packed Depth (mm): 1052
• Packed Height (mm): 950
• Capacity (Litres): 246
• No. of Doors: 2
• Door Type: Sliding Doors
• Body Material: Stainless Steel
• Mobility: Fixed/Legs
• Defrost Type: Auto
• Temperature Range: 2 to + 12
• Energy Rating: 10
• Warranty (months): 1 Year Parts and Labour Warranty
• Power Delivery: 240V, 215W/10A
• Power (kW): 240
