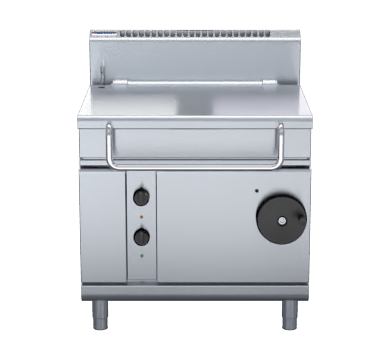

Waldorf BP8080E 800 Series 900mm Electric Tilting Bratt Pan

The Waldorf BP8080E is a 900mm wide, 80-litre electric tilting bratt pan from the Waldorf 800 Series, purpose-built for demanding commercial kitchen environments. Manufactured in New Zealand from 304 stainless steel, it delivers consistent, even heat across a 780mm x 450mm cooking surface via three 4kW stainless steel heating elements, making it equally suited to braising, frying, stewing, poaching and sautéing across a full service menu.

The BP8080E features fully modular construction, allowing it to integrate seamlessly within both the Waldorf 800 Series range and the Waldorf Bold range. Its hand-operated tilting mechanism with a fold-down handwheel, thermostatic temperature control spanning 50 to 320°C, and a heavy-duty spring-counterbalanced lid hinge combine to deliver operational precision and efficiency. An optional electrically powered pan tilting mechanism is also available, and lower back models (BPL) are offered for ergonomic flexibility.

Key Benefits

• Large 80-litre capacity handles high-volume batch cooking, reducing the number of cook cycles during a busy service.
• A 12mm thick stainless steel pan base with uniform heat distribution across its full surface eliminates hot spots and improves food quality consistency.
• The hand-operated tilting mechanism with a retractable handle allows safe, controlled pouring through the large capacity pouring spout, minimising spillage risk.
• Thermostatic control from 50 to 320°C with an over-temperature safety cut-out gives chefs precise heat management and protects against overheating.
• The heavy-duty counterbalanced lid hinge holds the lid securely open during loading and unloading, reducing fatigue and improving workflow safety.
• The 1.5mm 304 stainless steel lid converts to a bench-top prep surface when the pan is in use, adding valuable workspace in a compact kitchen.
• Adjustable feet on heavy-duty 63mm diameter stainless steel legs allow level installation on uneven floors, ensuring stability under load.
• Designed for easy cleaning, installation and servicing, reducing downtime and maintenance costs in a busy commercial operation.
• Optional electric power tilting mechanism available for kitchens requiring reduced manual handling effort.

Key Features

• 900mm wide, 80-litre capacity full stainless steel tilting bratt pan
• Cooking surface area: 780mm x 450mm (3,510cm²)
• Three 4kW stainless steel heating elements, totalling 12kW
• Power supply: 12kW / 415V 3 Phase + N (400–415Vac, 50/60Hz, 3P+N+E)
• 2.0mm stainless steel pan body construction
• 12mm thick stainless steel pan base engineered for uniform temperature distribution across the entire cooking surface
• 50–320°C thermostatic control for precise temperature management
• Over-temperature safety cut-out for operator and equipment protection
• Large easy-use control knobs with heat-resistant reinforced construction and easy-view settings
• Indicator lights for power and heating status
• Hand-operated pan tilting handwheel with a fold-away handle
• Optional electrically powered pan tilting mechanism with pan up/down switches
• Heavy-duty counterbalanced lid hinge that keeps the lid securely open during use
• 1.5mm 304 stainless steel lid suitable for use as an additional prep surface when the pan is in operation
• Full-width stainless steel lid handle
• Large capacity pouring spout for safe, controlled emptying
• 90-degree-rotation water valve for straightforward operation
• Heavy-duty galvanised steel chassis
• Splashback and side panels constructed from 1.2mm 304 stainless steel
• Front panels fabricated from 0.9mm 304 stainless steel
• Heavy-duty 63mm diameter stainless steel legs with adjustable feet
• Splashback included; no undershelf
• Fully modular construction compatible with both the Waldorf 800 Series and Waldorf Bold ranges
• Lower back models (BPL) available for ergonomic installation
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Electric
• Cooking Surface Area (mm): 780mm x 450mm, 3510cm2
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 12KW / 3 Phase + N
• Temperature Control: Variable High-Low
