Overview

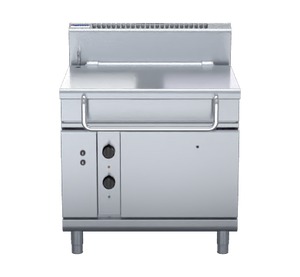

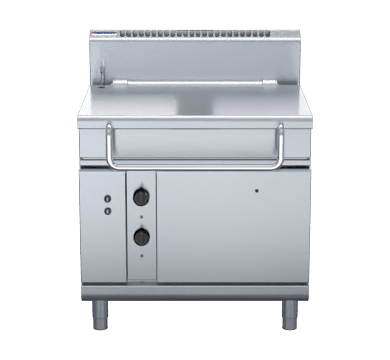

Waldorf BP8080EE 800 Series 900mm Electric Tilting Bratt Pan

The Waldorf BP8080EE is a 900mm electric tilting bratt pan from the renowned 800 Series, offering an 80-litre full stainless steel pan powered by three 4kW stainless steel heating elements for a total output of 12kW on a 415V 3-phase supply. Engineered in New Zealand from 304 stainless steel, it features a 12mm thick even-heat pan base and a generous 780mm x 450mm cooking surface, delivering consistent, controlled heat across the entire pan floor for searing, braising, poaching and more.

Designed for the demands of high-volume commercial kitchens, the BP8080EE combines an electric power tilting mechanism with a heavy-duty spring-balanced lid hinge system for smooth, safe operation. The fully modular construction integrates seamlessly into the Waldorf 800 Series lineup and is built for straightforward cleaning, installation and servicing, making it a long-term investment for professional catering environments.

Key Benefits

• Electric power tilting mechanism allows controlled, effortless pan emptying, reducing operator strain during high-volume service.
• The 12mm thick stainless steel pan base distributes heat evenly across the entire cooking surface, eliminating hot spots and improving cooking consistency.
• 80-litre capacity and a 3,510cm² cooking surface accommodate large batch cooking, reducing the number of cooking cycles needed during busy service periods.
• Thermostatic control with a 50-320°C range provides precise temperature management across a wide variety of cooking techniques.
• Over-temperature safety cut-out protects both product and equipment, minimising the risk of damage or food spoilage during unattended operation.
• Heavy-duty stainless steel legs with adjustable feet allow stable, level installation on uneven kitchen floors.
• The 1.5mm 304 stainless steel lid doubles as a bench-top workspace when open, providing additional preparation area in compact kitchens.
• Fully modular design integrates with other Waldorf 800 Series equipment, enabling flexible kitchen layouts and consistent aesthetic throughout the line.
• Easy-clean construction and straightforward serviceability reduce downtime and ongoing maintenance costs.

Key Features

• 900mm wide, 80-litre capacity full stainless steel bratt pan
• Three 4kW stainless steel heating elements, 12kW total output
• 415V 3-phase + N electrical connection (12kW / 3 Phase + N)
• 12mm thick stainless steel even-heat pan base for uniform heat distribution
• Cooking surface area 780mm x 450mm (3,510cm²)
• Electric power tilting mechanism with pan up and down switches
• Manually operated pan lift handwheel with fold-away handle also available
• Heavy-duty spring-balanced lid hinge system for smooth lid operation
• 1.5mm 304 stainless steel lid suitable for use as bench-top workspace
• Full-width stainless steel lid handle
• Full stainless steel pan with 2.0mm pan body
• Large-capacity pouring spout for controlled emptying
• Galvanised steel chassis for robust structural support
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter heavy-duty stainless steel legs with adjustable feet
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Quarter-turn water valve control for ease of use
• Thermostatic control, 50-320°C range
• Over-temperature safety cut-out
• Splashback included
• Constructed from 304 stainless steel throughout
• Country of origin: New Zealand
• 24-month warranty
• Lower back models (BPL series) available as an alternative configuration
• Compatible with Waldorf Bold and 800 Series modular lineup

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Electric
• Cooking Surface Area (mm): 780mm x 450mm, 3510cm2
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 12KW / 3 Phase + N
• Temperature Control: Variable High-Low
