Overview

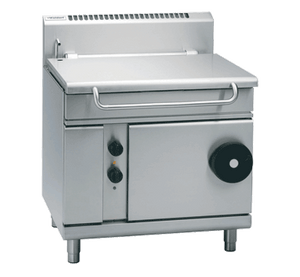

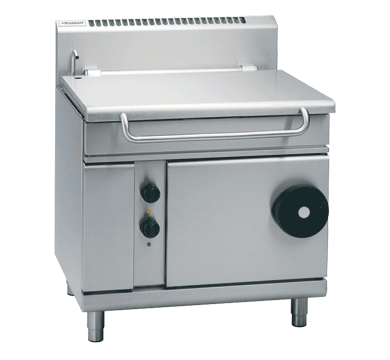

Waldorf BP8080G 800 Series 900mm Gas Tilting Bratt Pan

The Waldorf BP8080G is a 900mm wide, 80-litre capacity gas tilting bratt pan from the renowned 800 Series, engineered for demanding commercial kitchen environments. Constructed with a full 304 stainless steel pan body measuring 2mm thick and a substantial 12mm thick stainless steel even-heat base, the BP8080G delivers consistent, controlled heat across the entire 780mm x 450mm cooking surface. A high-output 75MJ/hr single six-bar stainless steel burner, thermostatic control, and an over-temperature safety cut-out ensure precise and safe operation across a wide range of cooking tasks.

Designed for ease of use, cleaning, and servicing, the BP8080G features a manually operated tilting mechanism with a fold-away handle, making it straightforward to drain or transfer large volumes of food. A heavy-duty lid and hinge system, galvanised steel chassis, and heavy-duty stainless steel legs with adjustable feet all contribute to the unit's robust, long-lasting construction. Automatic pilot ignition with flame failure protection adds an additional layer of operational safety, while the splashback and large-capacity pouring spout make day-to-day use efficient and practical in any professional kitchen.

Key Benefits

• The 12mm thick stainless steel even-heat base eliminates hot spots, ensuring uniform cooking results across the full pan surface for large batch cooking.
• A 75MJ/hr single six-bar burner delivers powerful, responsive heat output, significantly reducing pre-heat times and keeping up with high-volume service demands.
• The manually operated tilting mechanism with fold-away handle makes emptying, draining, and cleaning quick and safe, reducing labour time between cooking cycles.
• Thermostatic control with an over-temperature safety cut-out gives operators precise temperature management and protection against accidental overheating.
• Automatic pilot ignition and flame failure device simplify start-up and provide an added layer of safety in busy kitchen environments.
• An 80-litre capacity and 3,510cm² cooking surface accommodate large batch cooking of stews, braises, sautés, and more, supporting a versatile menu.
• Heavy-duty adjustable feet allow the unit to be levelled on uneven floors, ensuring stable operation and correct pan drainage during tilting.
• Compatible with both natural gas and LPG, providing flexibility for installation across a variety of commercial kitchen configurations.
• Designed for easy cleaning, installation, and servicing, minimising downtime and ongoing maintenance costs in high-throughput operations.

Key Features

• 900mm wide, 80-litre capacity gas tilting bratt pan from the Waldorf 800 Series
• 75MJ/hr single six-bar stainless steel burner providing high-output, even heat distribution
• 12mm thick stainless steel even-heat pan base for uniform temperature across the cooking surface
• Full stainless steel pan with 2mm thick pan body construction
• Cooking surface area of 780mm x 450mm (3,510cm²)
• Manually operated tilting mechanism with fold-away handle for safe and convenient emptying
• Automatic pilot ignition with flame failure device for reliable and safe start-up
• Thermostatic temperature control for precise heat management
• Over-temperature safety cut-out for added operational protection
• Heavy-duty lid and hinge system for durable, long-term use
• Galvanised steel chassis for structural strength and corrosion resistance
• Heavy-duty stainless steel legs with adjustable feet for stable levelling on site
• Large-capacity pouring spout for efficient and controlled draining
• Heat-resistant reinforced control knobs for comfortable use during service
• Stainless steel splashback included
• Compatible with natural gas and LPG via R 3/4 (BSP) male gas connection
• Electrical connection required: 220-240Vac, 50/60Hz, 1A, 1P+N+E (for ignition and controls)
• Manufactured in New Zealand from 304 stainless steel
• Designed for easy cleaning, installation, and servicing to minimise downtime
• Part of the modular Waldorf 800 Series, compatible with other suite components

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 42
• Shipping Weight: 236
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Gas
• Number of Burners: 1
• Cooking Surface Area (mm): 780mm x 450mm, 3510cm2
• Power Rating: 11.7 kW
• Voltage/Phase: 220-240Vac, 50/60Hz, 1A, 1P+N+E
• Temperature Control: Variable High-Low
