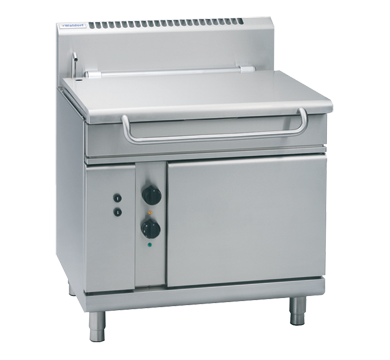

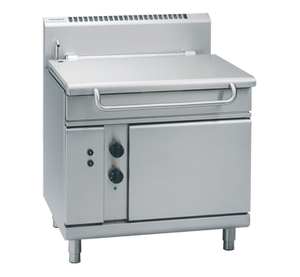

Waldorf BP8080GE 800 Series 900mm Gas Tilting Bratt Pan

The Waldorf BP8080GE is a 900mm wide, 80-litre capacity gas tilting bratt pan from the 800 Series, built in New Zealand from 304 stainless steel for demanding commercial kitchen environments. Powered by a 75MJ/hr single 6-bar stainless steel burner with thermostatic control and an over-temperature safety cut-out, it delivers consistent, controllable heat across a generous 780mm x 450mm cooking surface.

Designed to complement the Waldorf Bold and 800 Series modular lineup, the BP8080GE features an electric power tilting mechanism for safe and effortless pan emptying, a 12mm thick stainless steel even-heat base for superior heat distribution, and automatic pilot ignition with flame failure protection. Its galvanised steel chassis, heavy-duty lid and hinge system, and adjustable stainless steel legs make it a robust, long-service investment for high-volume operations.

Key Benefits

• Electric power tilting allows operators to empty and pour the 80-litre pan safely with minimal effort, reducing strain and spillage risk during service.
• The 12mm thick stainless steel pan base distributes heat evenly across the entire cooking surface, eliminating hot spots and delivering consistent results whether braising, frying, poaching or stewing.
• Thermostatic temperature control with an over-temperature safety cut-out gives precise heat management and protects both food quality and equipment longevity.
• Automatic pilot ignition with flame failure protection ensures fast, safe start-up and shuts off gas supply if the flame is extinguished, meeting commercial safety requirements.
• Compatible with both natural gas and LPG supplies via a 3/4" BSP male connection, providing flexible installation across a range of kitchen setups.
• The large-capacity pouring spout makes draining liquids or transferring large batches quick and controlled, supporting efficient high-volume cooking workflows.
• Heavy-duty stainless steel legs with adjustable feet allow precise levelling on uneven floors, ensuring safe and stable operation during tilting.
• Modular 800 Series design integrates seamlessly with other Waldorf Bold and 800 Series equipment, supporting a cohesive, space-efficient kitchen layout.
• Simple access for cleaning, installation and servicing minimises downtime and keeps the unit operating at peak performance throughout its service life.

Key Features

• 80-litre capacity pan with 780mm x 450mm cooking surface (3,510cm²)
• 75MJ/hr single 6-bar stainless steel burner
• Electric power tilting mechanism for safe, controlled pan emptying
• Thermostatic temperature control with variable high-low settings
• Over-temperature safety cut-out
• Automatic pilot ignition with flame failure protection
• 12mm thick stainless steel even-heat pan base for uniform heat distribution
• Full stainless steel pan construction with 2mm pan body
• 304 stainless steel throughout
• Large-capacity pouring spout
• Heavy-duty lid and hinge system
• Galvanised steel chassis
• Heavy-duty stainless steel legs with adjustable feet
• Large, heat-resistant reinforced control knobs for ease of use
• Splashback included
• Accepts natural gas or LPG; R 3/4" (BSP) male gas connection
• Electrical connection: 220-240V AC, 50/60Hz, 1A, 1P+N+E (10A plug cordset fitted)
• Modular design compatible with Waldorf Bold and 800 Series lineup
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 42
• Shipping Weight: 236
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Cooking Surface Area (mm): 780mm x 450mm, 3510cm2
• Power Rating: 1A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 220-240Vac, 50/60Hz, 1A, 1P+N+E
• Temperature Control: Variable High-Low
