Overview

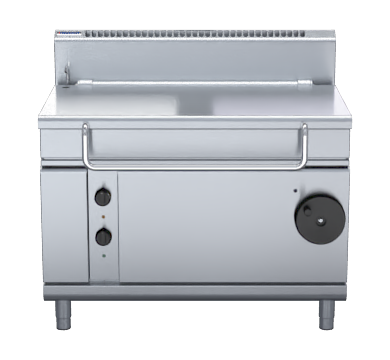

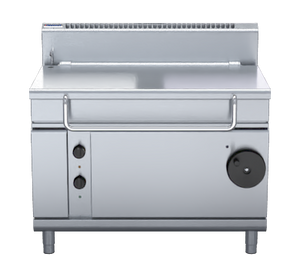

Waldorf BP8120E 800 Series 1200mm Electric Tilting Bratt Pan

The Waldorf BP8120E is a 1200mm electric tilting bratt pan from the 800 Series, offering a generous 120-litre capacity suited to high-volume commercial kitchens. Three 5.66kW stainless steel heating elements deliver a combined 17kW of power across a pan base that is 12mm thick for even heat distribution, with thermostatic control spanning 50 to 320 degrees Celsius for precise temperature management across a wide range of cooking tasks.

Built around a heavy-duty galvanised steel chassis with a full stainless steel pan body constructed from 2mm stainless steel, the BP8120E integrates seamlessly into the Waldorf Bold and 800 Series modular line-up. A manually operated tilting mechanism with fold-away handwheel, a counterbalanced heavy-duty lid, and a large-capacity pouring spout make daily operation and cleaning straightforward, while the design supports easy servicing and installation.

Key Benefits

• 120-litre pan capacity handles large batch cooking of braised meats, stocks, sauces, stews and more in a single vessel, reducing labour and turnaround time.
• The pan base is 12mm thick solid stainless steel, engineered to eliminate hot spots and deliver consistent, uniform heat across the entire cooking surface.
• Thermostatic control from 50 to 320 degrees Celsius gives chefs precise temperature management across a wide variety of cooking methods.
• Over-temperature safety cut-out protects food, staff and equipment in the event of a temperature excursion, reducing risk in a busy service environment.
• Manually operated tilting mechanism with fold-away handle allows controlled, safe pouring of large volumes without additional equipment or staff.
• The lid is supported by a heavy-duty counterbalanced hinge mechanism that makes opening and closing effortless during continuous use; the 1.5mm 304 stainless steel lid also functions as a bench-top workspace when open.
• Fully modular construction integrates with other Waldorf 800 Series units, enabling flexible kitchen configurations and easy expansion.
• Stainless steel legs measuring 63mm in diameter are fitted with adjustable feet to allow levelling on uneven floors, ensuring stable, safe operation.
• Designed for easy cleaning, installation and servicing, minimising downtime and total cost of ownership over the life of the unit.

Key Features

• 1200mm wide electric tilting bratt pan with 120-litre capacity
• Three 5.66kW stainless steel heating elements, 17kW total at 415V 3 Phase + N
• Pan base is 12mm thick stainless steel providing uniform heat distribution across the cooking surface
• Pan body constructed from 2mm stainless steel for a full stainless steel pan
• 50 to 320 degrees Celsius thermostatic control
• Over-temperature safety cut-out
• Manually operated pan tilting with fold-away handwheel handle
• Optional electrically powered pan tilting mechanism available
• Heavy-duty lid supported by a counterbalanced hinge mechanism for effortless operation
• Lid fabricated from 1.5mm 304 stainless steel and suitable for use as a bench-top workspace when open
• Full-width stainless steel lid handle
• Large-capacity pouring spout for controlled emptying
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter heavy-duty stainless steel legs fitted with adjustable feet
• Large, heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Single-action quarter-rotation water valve for simple, convenient flow control
• Cooking surface area 1078mm x 450mm (3510cm2)
• Splashback included
• Fully modular design compatible with the Waldorf Bold and 800 Series range
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 300
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Electric
• Cooking Surface Area (mm): 10780mm x 450mm, 3510cm2
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 17KW / 3 Phase + N
• Temperature Control: Variable High-Low
