Overview

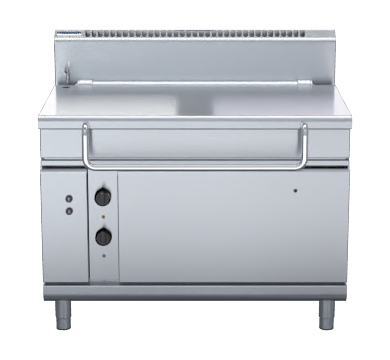

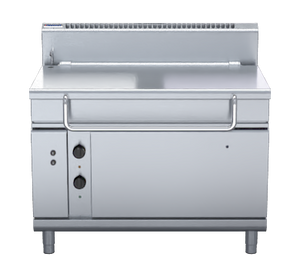

Waldorf BP8120EE 800 Series 1200mm Electric Tilting Bratt Pan

The Waldorf BP8120EE is a heavy-duty 1200mm electric tilting bratt pan from the 800 Series, purpose-built for high-volume commercial kitchens. Featuring a generous 120-litre full stainless steel pan body, three 5.66kW stainless steel heating elements delivering a combined 17kW of total power, and a thermostatic control range of 50 to 320°C, this unit handles the full spectrum of bratt pan cooking tasks including braising, frying, poaching, stewing and batch cooking with consistent, even heat distributed across the entire pan base, which measures a substantial 12mm in thickness.

Constructed in New Zealand from 304 stainless steel throughout, the BP8120EE incorporates an electrically powered pan tilting mechanism for safe and effortless pouring, a counterbalanced heavy-duty lid fitted with a full-width handle, and a fully modular design that simplifies installation, cleaning and servicing. A galvanised steel chassis, adjustable heavy-duty stainless steel legs, and an over-temperature safety cut-out all contribute to long-term reliability and operator safety in the most demanding kitchen environments.

Key Benefits

• 120-litre capacity supports large batch cooking, reducing the number of cooking cycles during peak service and improving overall kitchen throughput.
• A pan base constructed from 12mm thick stainless steel spreads heat uniformly across the full cooking surface, eliminating hot spots and delivering consistent results for braising, frying and poaching.
• The electric power tilting mechanism allows operators to empty or pour pan contents safely and with minimal effort, reducing physical strain and the risk of spills.
• Thermostatic control spanning 50 to 320°C provides precise temperature management for everything from delicate sauces through to high-heat searing.
• An over-temperature safety cut-out protects both the equipment and operators if the set temperature is exceeded, supporting safe kitchen operation.
• The 1.5mm 304 stainless steel lid doubles as an additional bench-top work surface when open, adding usable area in busy kitchens.
• Fully modular construction integrates seamlessly into Waldorf 800 Series suite configurations, making it straightforward to expand or reconfigure a cooking line.
• Legs equipped with height-adjustable feet allow precise levelling on uneven floors, ensuring stable operation and accurate pouring.
• An easy-clean design with minimal crevices and a large-capacity pouring spout simplifies end-of-service washdown and reduces labour time.

Key Features

• 1200mm wide electric tilting bratt pan with 120-litre full stainless steel pan
• 2mm stainless steel pan body construction throughout
• Pan base is 12mm thick stainless steel, engineered for uniform heat distribution across the entire cooking surface
• Three 5.66kW stainless steel heating elements totalling 17kW
• 415V 3-phase power supply (400-415Vac, 50/60Hz, 3P+N+E)
• Thermostatic control with a temperature range of 50 to 320°C
• Over-temperature safety cut-out for operator and equipment protection
• Electrically powered pan tilting mechanism with pan up and down switches
• Alternative manual pan lift option via a handwheel fitted with a fold-flat handle
• Heavy-duty lid featuring a counterbalanced hinge mechanism, constructed from 1.5mm 304 stainless steel and suitable for use as an additional work surface when raised
• Full-width stainless steel lid handle
• Large-capacity pouring spout for controlled emptying
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter heavy-duty stainless steel legs fitted with height-adjustable feet
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Single 90-degree rotation water valve for simple flow control
• Fully modular design compatible with Waldorf 800 Series suite
• Splashback included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 300
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
