Overview

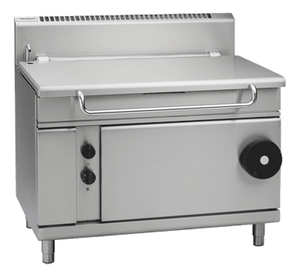

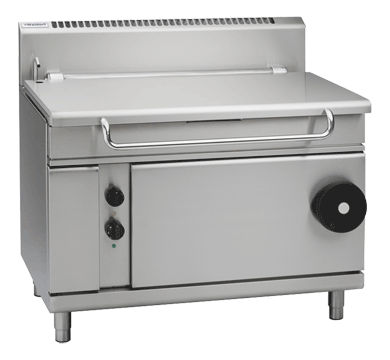

Waldorf BP8120G 800 Series 1200mm Gas Tilting Bratt Pan

The Waldorf BP8120G is a 1200mm wide, 120-litre gas tilting bratt pan from the 800 Series, purpose-built for high-volume commercial kitchens that demand consistent, heavy-duty cooking performance. Constructed throughout in 304 stainless steel with a heavy-duty galvanised steel chassis, it delivers exceptional durability and hygiene across a broad range of cooking applications including braising, frying, poaching, stewing and sautéing.

Powered by a single 6-bar stainless steel burner rated at 90 MJ/hr, the BP8120G features a 12mm thick stainless steel even-heat pan base for superior temperature uniformity across the entire 1080mm x 450mm cooking surface. Compatible with both natural gas and LPG, the unit includes a manually operated tilting mechanism with fold-away handwheel, thermostatic temperature control from 50 to 320°C, automatic pilot ignition with flame failure protection, and an over-temperature safety cut-out, making it a reliable, fully modular workhorse for any professional kitchen.

Key Benefits

• A 90 MJ/hr burner output and 12mm thick even-heat pan base deliver rapid heat-up and consistent temperature across the full cooking surface, reducing hot spots and improving cook quality.
• The 120-litre capacity and 1080mm x 450mm cooking surface allow large batch cooking in a single operation, cutting labour time and increasing throughput during busy service periods.
• Manually operated tilting mechanism with fold-away handwheel enables safe, controlled pouring via the large-capacity pouring spout, minimising spillage and handling risk.
• An optional electric power tilting mechanism provides an ergonomic alternative for operators who prefer automated pan lifting, reducing manual strain in high-production environments.
• Thermostatic control from 50 to 320°C combined with an over-temperature safety cut-out gives precise heat management and added protection for both product and equipment.
• Automatic pilot ignition with flame failure device ensures fast, reliable start-up and an extra layer of operational safety compliance.
• The 1.5mm 304 stainless steel spring-balanced lid doubles as a benchtop workspace when open, adding practical prep space without requiring additional equipment.
• Fully modular design integrates seamlessly with the Waldorf 800 Series and Bold product lineup, enabling flexible kitchen layouts and equipment expansion.
• Easy-clean construction with stainless steel surfaces throughout, adjustable heavy-duty legs, and straightforward service access minimise downtime and cleaning labour.

Key Features

• 1200mm wide, 120-litre capacity full stainless steel tilting bratt pan
• Single 6-bar stainless steel burner rated at 90 MJ/hr (11.7 kW equivalent)
• 12mm thick stainless steel even-heat pan base for uniform temperature distribution
• 2mm stainless steel pan body construction
• Cooking surface area 1080mm x 450mm
• Thermostatic burner control adjustable from 50 to 320°C
• Automatic pilot ignition with flame failure device fitted
• Over-temperature safety cut-out for added protection
• Manually operated pan tilting via handwheel with fold-away handle
• Optional electrically powered pan tilting mechanism with pan up/down switches
• Large-capacity pouring spout for safe and controlled emptying
• Heavy-duty spring-balanced lid and hinge system
• 1.5mm 304 stainless steel lid suitable for use as a benchtop workspace when open
• Full-width stainless steel lid handle
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter heavy-duty stainless steel legs with adjustable feet
• Large, easy-use control knobs with heat-resistant reinforced construction and easy-view settings
• Single control knob for power and heat level adjustment
• Indicator lights for power and heating status
• Quarter-turn water valve control for ease of use
• Compatible with natural gas and LPG (R 3/4 BSP male gas connection)
• Electrical connection: 220-240 V AC, 50/60 Hz, 1 A, 1P+N+E
• Integrated splashback included
• Fully modular design compatible with Waldorf 800 Series and Bold product lineup
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 42
• Shipping Weight: 286
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Gas
• Number of Burners: 1
• Cooking Surface Area (mm): 1080mm x 450mm
• Power Rating: 11.7 kW
• Voltage/Phase: 220-240Vac, 50/60Hz, 1A, 1P+N+E
• Temperature Control: Variable High-Low
