Overview

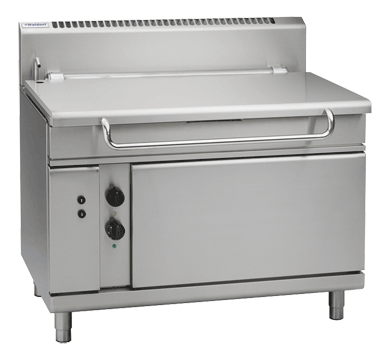

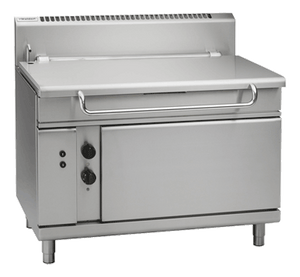

Waldorf BP8120GE 800 Series 1200mm Gas Tilting Bratt Pan

The Waldorf BP8120GE is a 1200mm wide, 120-litre gas tilting bratt pan from the 800 Series, engineered for demanding commercial kitchen environments. Built from 304 stainless steel throughout, it features a 12mm thick even-heat pan base, a 90MJ/hr single 6-bar stainless steel burner, and an electric power tilting mechanism, making it equally capable of braising, frying, stewing, poaching and searing across a broad temperature range of 50 to 320°C.

Designed for straightforward cleaning, servicing and installation, the BP8120GE integrates seamlessly into the Waldorf Bold and 800 Series modular line-up. A heavy-duty galvanised steel chassis, spring-balanced lid hinge system, automatic pilot ignition with flame failure device, and over-temperature safety cut-out combine to deliver consistent, safe operation during the most intensive service periods. Available for both natural gas and LPG connections.

Key Benefits

• The 12mm thick stainless steel pan base distributes heat evenly across the entire 1080mm x 450mm cooking surface, reducing hot spots and delivering consistent results when cooking large batches.
• Electric power tilting makes it safe and effortless for a single operator to pour large volumes of hot product, reducing manual strain and the risk of burns during busy service.
• Thermostatic burner control across 50 to 320°C gives chefs precise temperature management for delicate sauces through to high-heat searing, expanding menu versatility from a single piece of equipment.
• Automatic pilot ignition with integrated flame failure protection means the gas supply cuts off immediately if the flame extinguishes, enhancing kitchen safety without requiring manual intervention.
• The spring-balanced heavy-duty lid hinge system allows the lid to be raised and held open hands-free, and its 1.5mm 304 stainless steel construction doubles as a bench-top workspace when not in use.
• Full modular compatibility with the Waldorf 800 Series and Bold range allows the bratt pan to be positioned alongside complementary equipment for a cohesive, space-efficient kitchen layout.
• Heavy-duty stainless steel legs with adjustable feet simplify levelling on uneven floors and maintain a stable, hygienic base that is easy to clean beneath.
• A large-capacity pouring spout, quarter-turn water valve control, and accessible service design minimise downtime for both daily cleaning and scheduled maintenance.

Key Features

• 1200mm wide, 120-litre capacity full stainless steel tilting bratt pan
• 90MJ/hr single 6-bar stainless steel burner
• 12mm thick stainless steel even-heat pan base for uniform heat distribution
• 2mm stainless steel pan body construction
• Electric power tilting mechanism with pan-up and pan-down switches; manual pan tilt handwheel with fold-away handle also available
• Thermostatic burner control with 50 to 320°C operating range
• Automatic pilot ignition with flame failure device fitted
• Over-temperature safety cut-out
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Heavy-duty spring-balanced lid hinge system
• 1.5mm 304 stainless steel lid suitable for use as a bench-top workspace when open
• Full-width stainless steel lid handle
• Large-capacity pouring spout
• Quarter-turn water valve control for ease of use
• Large, heat-resistant reinforced control knobs with easy-view settings
• Single control for both power and heating; indicator lights for power and heating status
• 63mm diameter heavy-duty stainless steel legs with adjustable feet
• Cooking surface area 1080mm x 450mm (3510cm²)
• Electrical connection: 220-240Vac, 50/60Hz, 1A, 1P+N+E (3-pin 10A plug cordset fitted)
• Available in natural gas and LPG configurations; gas connection R 3/4 BSP male
• Fully modular design compatible with Waldorf 800 Series and Bold product range
• 304 stainless steel finish throughout
• Designed for easy cleaning, installation and servicing
• Splashback included; no undershelf
• Country of origin: New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 42
• Shipping Weight: 286
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Cooking Surface Area (mm): 1080mm x 450mm, 3510cm2
• Power Rating: 1A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 220-240Vac, 50/60Hz, 1A, 1P+N+E
• Temperature Control: Variable High-Low
