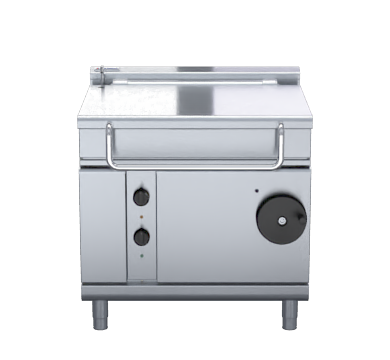

Waldorf BPL8080E 800 Series 900mm Electric Tilting Bratt Pan – Low Back

The Waldorf BPL8080E is a commercial-grade electric tilting bratt pan from the respected 800 Series range, built to manage the demanding pace of high-volume professional kitchens. Spanning 900mm in width and offering an 80-litre capacity in a fully stainless steel pan construction, the unit is powered by three independent 4kW stainless steel heating elements running on a 415V three-phase supply, with thermostatic control spanning 50 to 320°C. This breadth of temperature range supports an extensive variety of cooking methods from a single piece of equipment, including braising, frying, poaching, and stewing. Manufactured in New Zealand to exacting standards, the BPL8080E carries a 24-month warranty.

The low back modular configuration slots directly into existing Waldorf 800 Series suite line-ups, giving operators the flexibility to build a fully tailored cooking line. A heavy-duty galvanised steel chassis underpins the unit, while the pan itself features a 2mm stainless steel body paired with a solid 12mm stainless steel base engineered for uniform heat distribution. A manually operated handwheel tilting mechanism with a fold-away handle provides safe, controlled pouring, and a generously sized pouring spout assists with precise emptying. Adjustable 63mm diameter stainless steel legs with levelling feet, easy-access service points, and a straightforward installation process all contribute to reduced downtime and lower ongoing maintenance demands.

Key Benefits

• Handles braising, frying, poaching, stewing, and more from a single unit, reducing the need for multiple pieces of equipment across the kitchen.
• The pan base, machined to a full 12mm thickness in stainless steel, spreads heat uniformly across the entire cooking surface, eliminating hot spots and delivering consistent results.
• A thermostatic range spanning 50 to 320°C gives chefs accurate temperature control for everything from delicate poaching liquids through to high-heat searing.
• The manually operated tilting mechanism, featuring a handwheel with a fold-away handle, allows safe and controlled transfer of large volumes, minimising spill risk and physical strain.
• An over-temperature safety cut-out protects both food quality and the equipment itself during unattended cooking, supporting safer kitchen operations.
• The 1.5mm 304 stainless steel spring-balanced lid doubles as a benchtop workspace when open, extending usable prep area during busy service periods.
• Stainless steel legs of 63mm diameter with individually adjustable feet allow precise levelling on uneven floors, ensuring stable operation and accurate pan drainage.
• Full 800 Series modular compatibility allows the BPL8080E to be combined with other suite components, giving operators the ability to configure a tailored cooking line.
• An easy-clean pan interior, accessible service points, and uncomplicated installation procedures keep downtime to a minimum and reduce ongoing maintenance costs.

Key Features

• 900mm wide electric tilting bratt pan in the 800 Series low back suite configuration
• 80-litre fully stainless steel pan
• Pan constructed with a 2mm stainless steel body and a 12mm stainless steel base plate engineered for even heat distribution
• Three 4kW stainless steel heating elements
• 415V three-phase power supply
• Thermostatic control range: 50 to 320°C
• Over-temperature safety cut-out for protection during operation
• Indicator lights for power and heating status
• Large, easy-use control knobs with heat-resistant reinforced construction and easy-view settings
• Manually operated pan tilt via handwheel with fold-away handle
• Optional electrically powered pan tilting mechanism available
• Heavy-duty galvanised steel chassis
• Generously sized pouring spout for controlled and precise emptying
• Heavy-duty spring-balanced lid and hinge system
• Lid fabricated from 1.5mm 304 stainless steel with a full-width handle, suitable for use as a benchtop workspace when open
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter stainless steel legs with individually adjustable levelling feet
• Single quarter-turn water valve for straightforward flow control
• Fully modular design compatible with the Waldorf 800 Series suite
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
