Overview

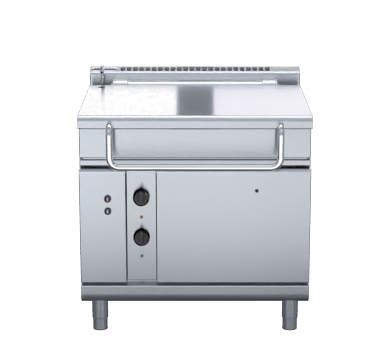

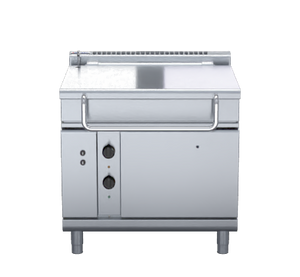

Waldorf BPL8080EE 800 Series 900mm Electric Tilting Bratt Pan – Low Back Configuration

The Waldorf BPL8080EE is a 900mm electric tilting bratt pan from the 800 Series, purpose-built for high-volume commercial kitchens requiring versatile, large-batch cooking capability. The unit features an 80-litre all-stainless-steel pan constructed with a 2mm-thick pan body and a 12mm-thick base engineered for uniform heat distribution, paired with three 4kW heating elements and an electrically powered tilting mechanism. This combination makes it equally capable of braising, stewing, frying, poaching and more, with exceptional temperature control and operational efficiency.

Built on a heavy-duty galvanised steel chassis with 304 stainless steel panels throughout, the BPL8080EE is engineered for longevity and ease of daily operation. Thermostatic control spanning 50 to 320°C, an over-temperature safety cut-out, a large-capacity pouring spout, and a counterbalanced lid that doubles as additional bench space make this bratt pan a practical and reliable centrepiece in any professional kitchen. Its fully modular design simplifies installation alongside other 800 Series equipment, as well as routine cleaning and servicing. Manufactured in New Zealand and backed by a 24-month warranty.

Key Benefits

• Electrically powered pan tilting allows safe, effortless emptying of large loads, reducing operator strain and speeding up service during busy periods.
• A 12mm-thick pan base spreads heat evenly across the entire cooking surface, eliminating hot spots and delivering consistent results batch after batch.
• Thermostatic control across a 50 to 320°C range suits a broad spectrum of cooking methods, from gentle poaching and braising through to high-heat searing and frying.
• The over-temperature safety cut-out protects both the equipment and the food, providing peace of mind in fast-paced kitchen environments.
• The heavy-duty counterbalanced lid opens to provide a usable bench surface, adding practical workspace in compact kitchen layouts.
• A large-capacity pouring spout enables quick, controlled draining of liquids without the need for additional handling equipment.
• Fully modular construction streamlines installation alongside other 800 Series equipment and makes routine cleaning and servicing straightforward.
• Heavy-duty 63mm diameter stainless steel legs fitted with adjustable feet ensure stable, level installation across varied floor surfaces.

Key Features

• 80-litre all-stainless-steel pan with a 2mm-thick pan body
• 12mm-thick stainless steel pan base providing uniform heat distribution across the entire cooking surface
• 3 x 4kW stainless steel heating elements
• Electrically powered pan tilting mechanism with dedicated pan-up and pan-down switches
• Alternative manual pan lift via a handwheel fitted with a fold-away handle
• Thermostatic control ranging from 50 to 320°C
• Over-temperature safety cut-out
• Heavy-duty counterbalanced lid mounting system supporting a 1.5mm 304 stainless steel lid
• Lid suitable for use as a bench-top workspace when open
• Full-width stainless steel lid handle
• Large-capacity pouring spout for controlled draining
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter heavy-duty stainless steel legs with adjustable feet
• Large, heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Water valve with a quarter-turn action for convenient single-motion control
• Low back (splashback) configuration
• Fully modular design for straightforward installation alongside 800 Series equipment
• 415V three-phase power supply
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
