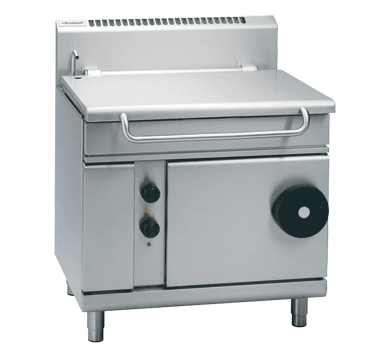

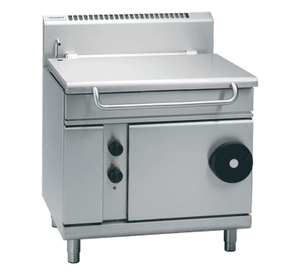

Waldorf BPL8080G 800 Series 900mm Gas Tilting Bratt Pan Low Back Version

The Waldorf BPL8080G is a heavy-duty 900mm gas tilting bratt pan from the 800 Series, purpose-built for demanding commercial kitchen environments. With an 80-litre capacity and a powerful 75MJ/hr single six-bar stainless steel burner, it delivers consistent, high-volume cooking performance across a wide range of menu applications including braising, stewing, frying, poaching and sautéing.

Constructed from 304 stainless steel throughout, the pan features a robust 2mm pan body paired with a 12mm thick stainless steel base for exceptional heat distribution and retention. A manually operated tilting mechanism with fold-away handle, thermostatic control, and over-temperature safety cut-out make this unit as safe and practical to operate as it is durable, backed by a 24-month warranty and manufactured in New Zealand.

Key Benefits

• Large 80-litre capacity handles high-volume batch cooking efficiently, reducing turnaround times during peak service.
• A 12mm thick stainless steel pan base distributes heat evenly across the entire cooking surface, eliminating hot spots and improving food quality consistency.
• The manually operated tilting mechanism with fold-away handle allows safe, controlled pouring and emptying without manual lifting of heavy loads.
• Thermostatic temperature control paired with an over-temperature safety cut-out gives operators precise heat management while protecting against overheating.
• Compatible with both natural gas and LPG, offering flexibility across different kitchen installations without requiring equipment changes.
• Adjustable feet on heavy-duty stainless steel legs allow the unit to be levelled on uneven floors, ensuring stable, safe operation.
• A large-capacity pouring spout makes draining liquids fast and clean, minimising mess and reducing cleaning time.
• Galvanised steel chassis provides a strong, corrosion-resistant structural foundation suited to the rigours of continuous commercial use.
• Designed for easy cleaning, installation and servicing, helping to minimise downtime and reduce ongoing maintenance costs.

Key Features

• 900mm wide gas tilting bratt pan, Low Back Version, part of the Waldorf 800 Series
• 80-litre cooking capacity
• 75MJ/hr single six-bar stainless steel burner delivering powerful, consistent heat output
• Full 304 stainless steel pan construction with 2mm pan body thickness
• 12mm thick stainless steel even-heat pan base for superior heat distribution
• Manually operated tilting mechanism for controlled, safe pouring and emptying
• Fold-away handle keeps the workspace clear when the tilting function is not in use
• Heavy-duty lid and hinge system for robust everyday operation
• Galvanised steel chassis for structural strength and corrosion resistance
• Large-capacity pouring spout for efficient and clean liquid drainage
• Heavy-duty stainless steel legs with adjustable feet for stable, level installation
• Large, heat-resistant reinforced control knobs for easy and safe heat adjustment
• Thermostatic temperature control for accurate and repeatable cooking temperatures
• Over-temperature safety cut-out to protect the unit and kitchen staff
• Natural gas and LPG compatible via R 3/4 BSP male gas connection
• Stainless steel splash back included
• Manufactured in New Zealand
• 24-month warranty
• Power output: 11.7 kW (42MJ/hr per our specification; 75MJ/hr burner rating per supplier)

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 42
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Gas
• Number of Burners: 1
• Power Rating: 11.7 kW
• Temperature Control: Variable High-Low
