Overview

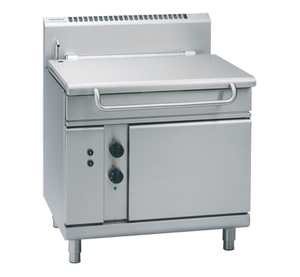

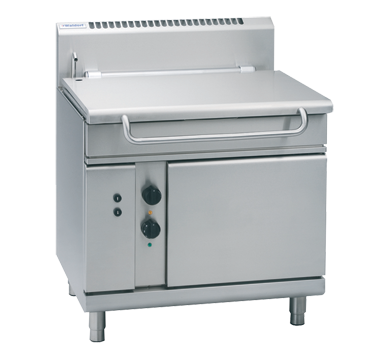

Waldorf BPL8080GE 800 Series 900mm Gas Tilting Bratt Pan Low Back Version

The Waldorf BPL8080GE is a heavy-duty 900mm gas tilting bratt pan from the 800 Series, designed to handle the demands of high-volume commercial kitchens. With an 80-litre capacity and a powerful 75MJ/hr single 6-bar stainless steel burner, this unit delivers consistent, even heat for braising, frying, poaching, stewing and more across a full menu service.

Constructed from 304 stainless steel throughout, the BPL8080GE features a 2mm pan body with a 12mm thick even-heat base for superior heat distribution and durability. The electric power tilting mechanism and large-capacity pouring spout make controlled, safe draining straightforward, while the thermostatic control and over-temperature safety cut-out ensure precise, reliable operation every shift. Manufactured in New Zealand and backed by a 24-month warranty.

Key Benefits

• 80-litre capacity suits high-volume production, reducing the need for multiple cooking vessels during peak service.
• Electric power tilting mechanism allows safe, effortless draining and pouring, minimising manual effort and spillage risk.
• 12mm thick stainless steel pan base distributes heat evenly across the full cooking surface, eliminating hot spots and improving cook consistency.
• Thermostatic control with over-temperature safety cut-out gives chefs precise temperature management and protects the equipment from thermal damage.
• Heavy-duty lid and hinge system retains heat efficiently for braising and steaming applications, reducing energy consumption.
• Adjustable feet on heavy-duty stainless steel legs allow the unit to be levelled on uneven floors, ensuring stable operation.
• Galvanised steel chassis provides a robust structural foundation suited to the rigours of continuous commercial use.
• Large-capacity pouring spout enables fast, controlled liquid transfer, speeding up workflows between cooking batches.
• Easy-clean design alongside straightforward installation and service access reduces downtime and lowers ongoing maintenance costs.

Key Features

• 900mm wide gas tilting bratt pan, 800 Series low back version
• 80-litre pan capacity
• 75MJ/hr single 6-bar stainless steel burner
• Electric power tilting mechanism for safe and controlled pan emptying
• Thermostatic temperature control with variable high-low settings
• Over-temperature safety cut-out for added protection
• Full stainless steel pan construction with 2mm pan body
• 12mm thick stainless steel even-heat pan base for superior heat distribution
• Heavy-duty lid with robust hinge system
• Large-capacity pouring spout for efficient liquid transfer
• Galvanised steel chassis
• Heavy-duty stainless steel legs with adjustable feet for levelling
• Large, heat-resistant reinforced control knobs for ease of use
• 304 stainless steel construction throughout
• Compatible with both natural gas and LPG
• Gas connection: R 3/4 (BSP) male
• Electrical supply: 220-240Vac 50/60Hz, 1A single phase with 3-pin 10A plug cordset fitted (for tilting mechanism)
• Splashback included; no undershelf
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 42
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 80
• Temperature Range: Variable
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Power Rating: 1A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
