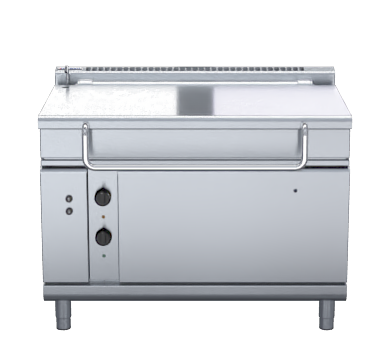

Waldorf BPL8120EE 800 Series 1200mm Electric Bratt Pan with Powered Tilting Mechanism, Low Back Configuration

The Waldorf BPL8120EE is a heavy-duty electric tilting bratt pan from the 800 Series, built to a 1200mm footprint and engineered specifically for high-volume commercial kitchens. Housing a 120-litre full stainless steel pan with three 5.66kW heating elements and an electrically powered tilting mechanism, it delivers consistent, controlled cooking across braising, frying, stewing and poaching applications.

Manufactured in New Zealand to rigorous commercial standards, the BPL8120EE features a 12mm thick stainless steel pan base for uniform heat distribution, thermostatic control ranging from 50 to 320°C, and a fully modular 800 Series construction with a galvanised steel chassis and 304 stainless steel exterior panels. The result is a unit that is straightforward to install, clean and service in demanding kitchen environments.

Key Benefits

• Electrically powered pan tilting allows safe, effortless emptying of up to 120 litres, reducing manual effort and injury risk during service.
• The pan base, machined to 12mm thickness from stainless steel, spreads heat uniformly across the entire cooking surface, eliminating hot spots and producing consistent results across large batch volumes.
• Thermostatic control spanning 50 to 320°C covers a wide spectrum of cooking methods in a single piece of equipment, from gentle poaching through to high-heat searing.
• An over-temperature safety cut-out protects both product and equipment, providing peace of mind during unattended or extended cooking cycles.
• The robust, counterbalanced lid is engineered so that when raised it serves as a flat working surface alongside the unit, maximising usable space in tight kitchen layouts. A full-width stainless steel handle runs across the entire lid width for controlled lifting.
• Fully modular 800 Series construction simplifies installation alongside other Waldorf equipment and makes future servicing or component replacement quick and cost-effective.
• Stainless steel legs of 63mm diameter incorporate screw-adjustable feet, allowing precise levelling on uneven floors and ensuring stable operation with accurate pan drainage via the large-capacity pouring spout.
• 304 stainless steel construction throughout the pan body, lid and exterior panels ensures long-term corrosion resistance and compliance with commercial hygiene standards.

Key Features

• 120-litre capacity full stainless steel pan with 2mm pan body
• Three 5.66kW stainless steel heating elements (total 16.98kW output)
• 415V three-phase power supply
• Electrically powered pan tilting mechanism with up and down control switches
• Alternative manual pan-lift option via a handwheel fitted with a fold-flat handle
• Thermostatic control range 50–320°C
• Over-temperature safety cut-out
• Stainless steel pan base with 12mm even-heat thickness throughout
• Robust counterbalanced lid with heavy-duty hinge system; lid surface is 1.5mm 304 stainless steel and suitable for use as a bench-top workspace when raised
• Full-width stainless steel lid handle
• Large-capacity pouring spout for safe, controlled emptying
• Heavy-duty galvanised steel chassis
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 63mm diameter heavy-duty stainless steel legs with screw-adjustable levelling feet
• Large, heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Water valve operated by a 90-degree rotary action for simple, single-motion control
• Fully modular 800 Series design for straightforward installation and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 120
• Temperature Range: Variable
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
