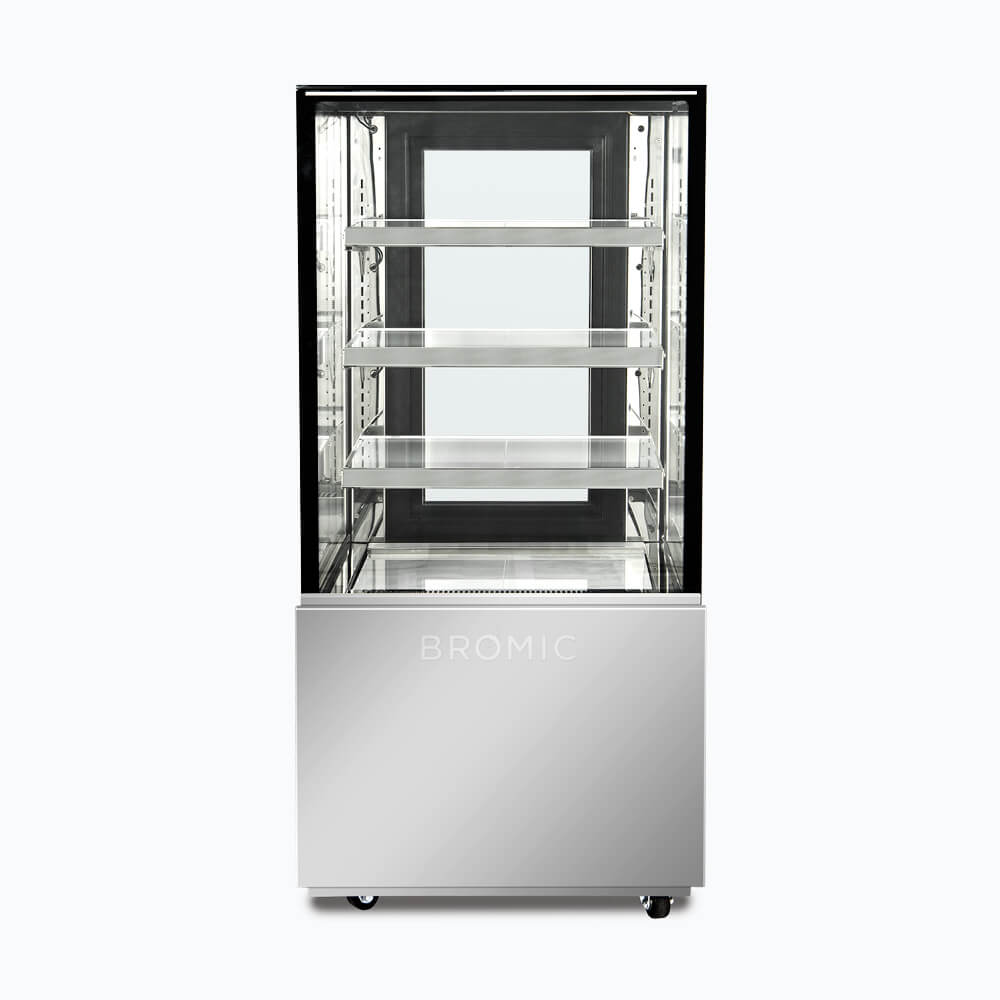

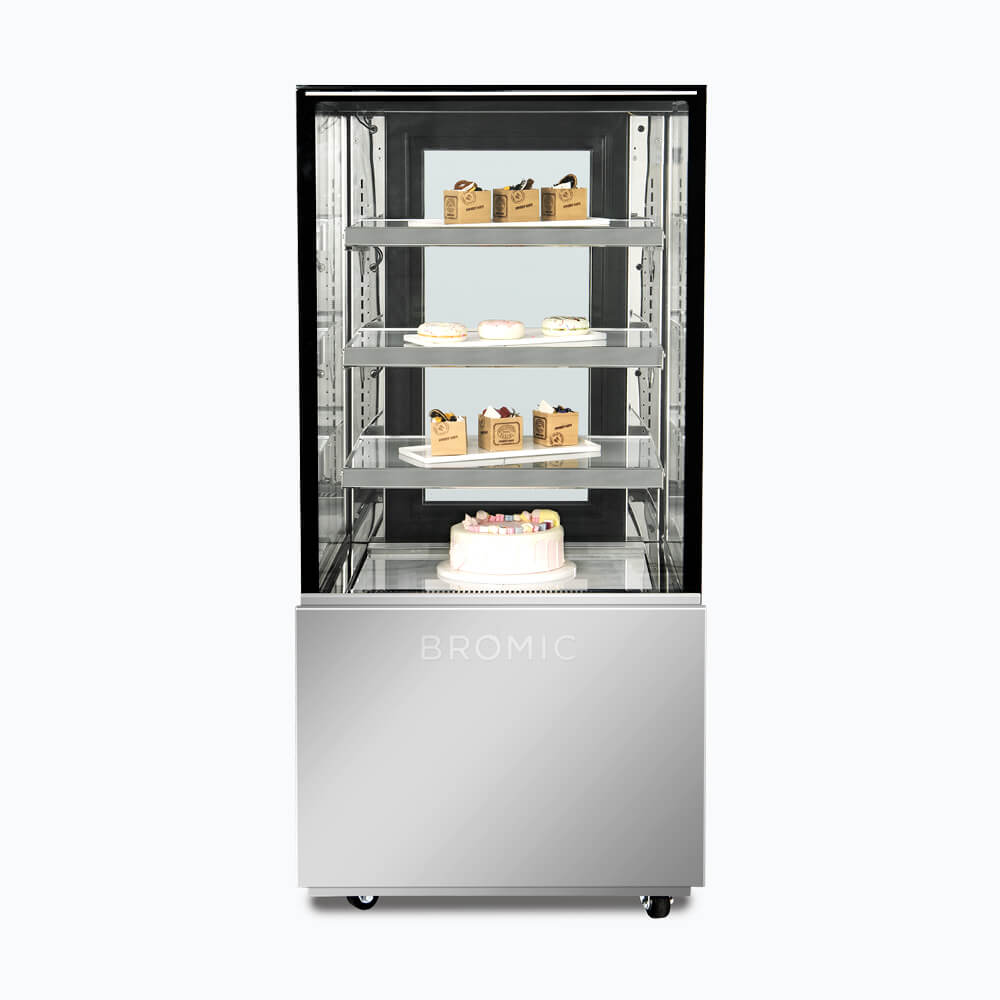

Bromic FD4T0660C-NR Refrigerated Cake Display 660mm 4 Tier

The Bromic FD4T0660C-NR is a 660mm wide, four-tier refrigerated cake display engineered for cafes, bakeries, and hospitality venues where counter space is limited but product presentation cannot be compromised. Its compact footprint houses three fully adjustable shelves plus a base shelf, all maintained within a +1°C to +5°C temperature range using R290 natural refrigerant for efficient, lower-emission operation.

Soft-cool refrigeration technology combines an oversized evaporator coil with low-velocity fans to circulate high-humidity air gently, preserving moisture in delicate cakes, pastries, confectionery, and cheese so products taste as good as they look. Heated glass panels across the front, top, and sides, along with invisible heat elements and an internal air curtain, eliminate condensation and keep your display clear and inviting at all times.

Key Benefits

• Heated front, top, and side glass panels prevent condensation, ensuring products remain clearly visible to customers throughout the day.
• Soft-cool refrigeration with an oversized evaporator coil and low-velocity fans maintains high humidity at low temperatures, extending the freshness and presentation quality of delicate baked goods.
• High-impact LED internal lighting draws customer attention and highlights products to drive impulse purchases at the counter.

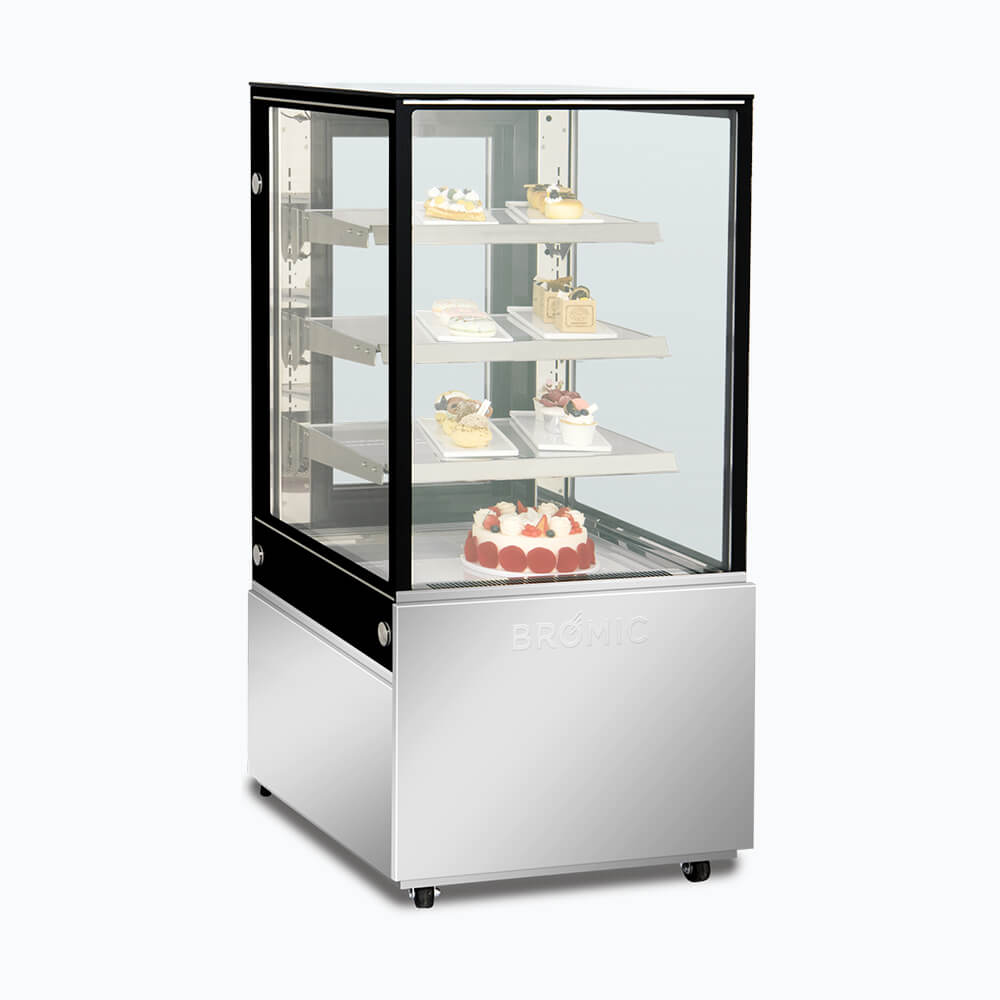

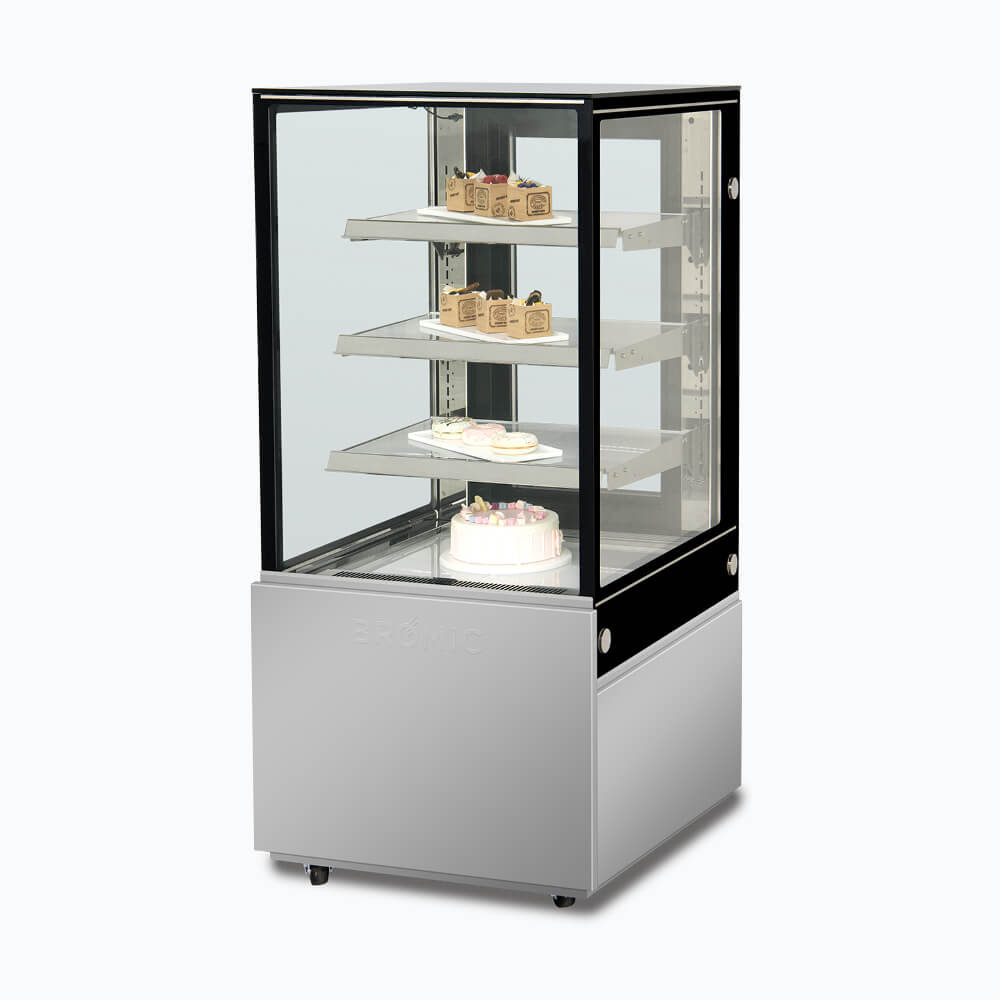

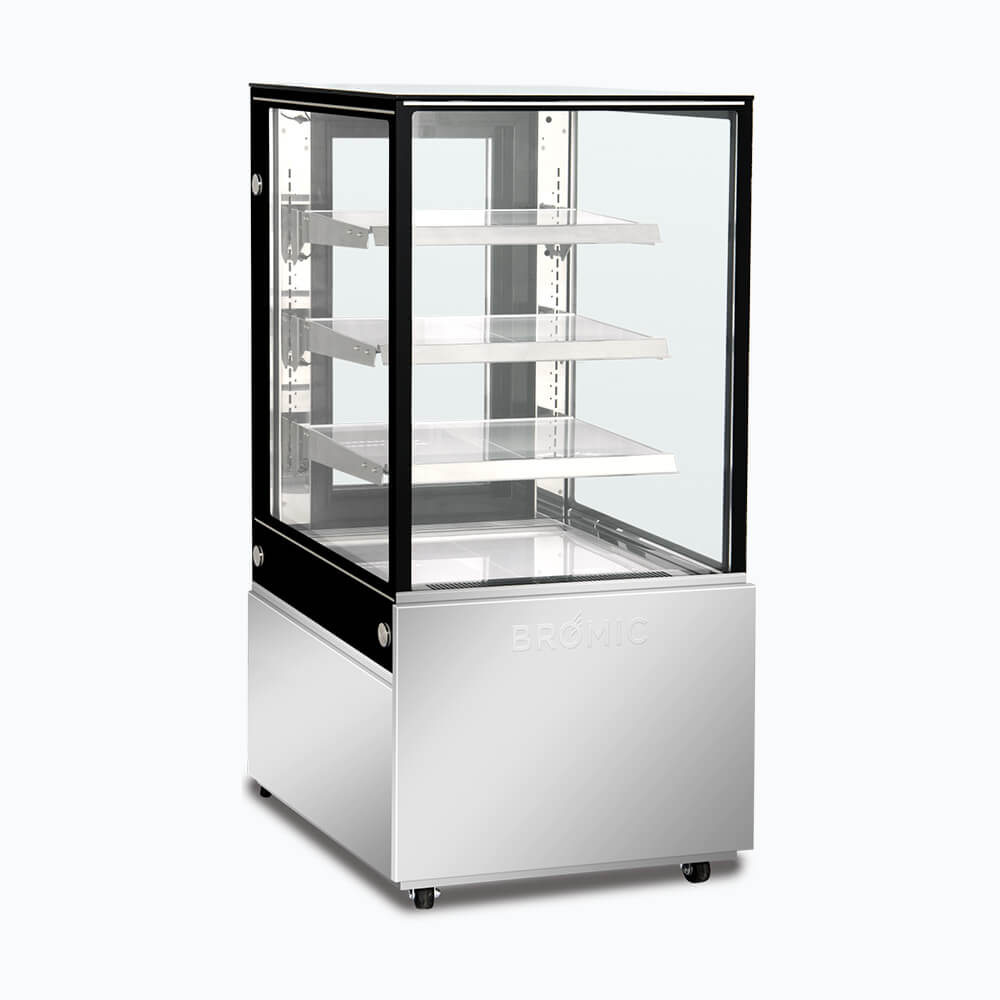

• Three adjustable shelves plus a base shelf accommodate cakes and desserts of varying heights and sizes, offering flexible merchandising options.
• R290 natural refrigerant reduces energy consumption and lowers the cabinet's carbon footprint compared to synthetic refrigerants.
• A heated hinged rear door provides easy staff access to replenish or rearrange products while minimising temperature loss inside the cabinet.
• Removable shelf inserts simplify cleaning and help maintain food safety standards in a busy commercial environment.
• Sturdy castors allow the unit to be repositioned around the floor easily, whether for service, cleaning, or a change in store layout.
• Toughened safety glass and corrosion-resistant construction deliver long-term durability in demanding commercial kitchen and retail environments.

Key Features

• 660mm wide compact footprint suitable for cafes, bakeries, and tight counter positions.
• 300-litre capacity with internal dimensions of 590(w) x 647(d) x 828(h)mm.

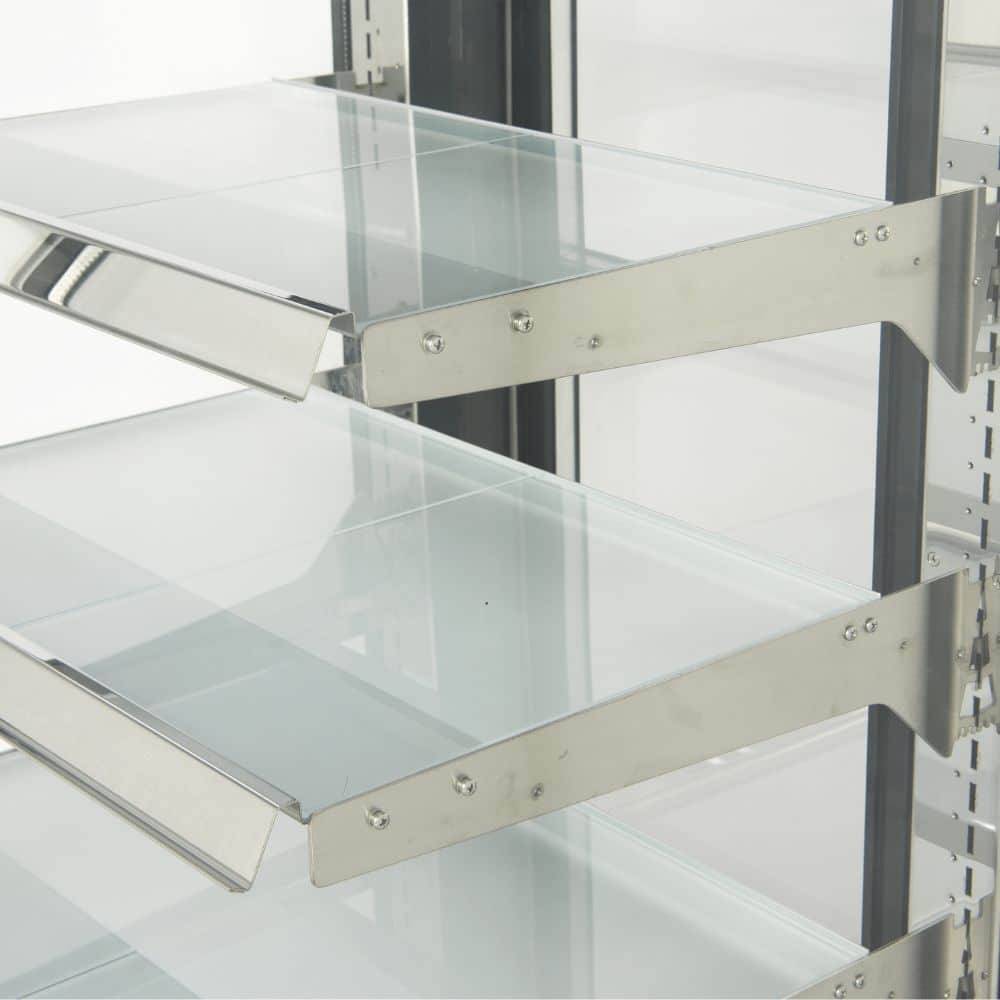

• Four display tiers: three fully adjustable shelves (577 x 307mm, 577 x 342mm, 577 x 377mm) plus a base shelf.
• Soft-cool refrigeration technology using an oversized evaporator coil and low-velocity fans for gentle, high-humidity air circulation.

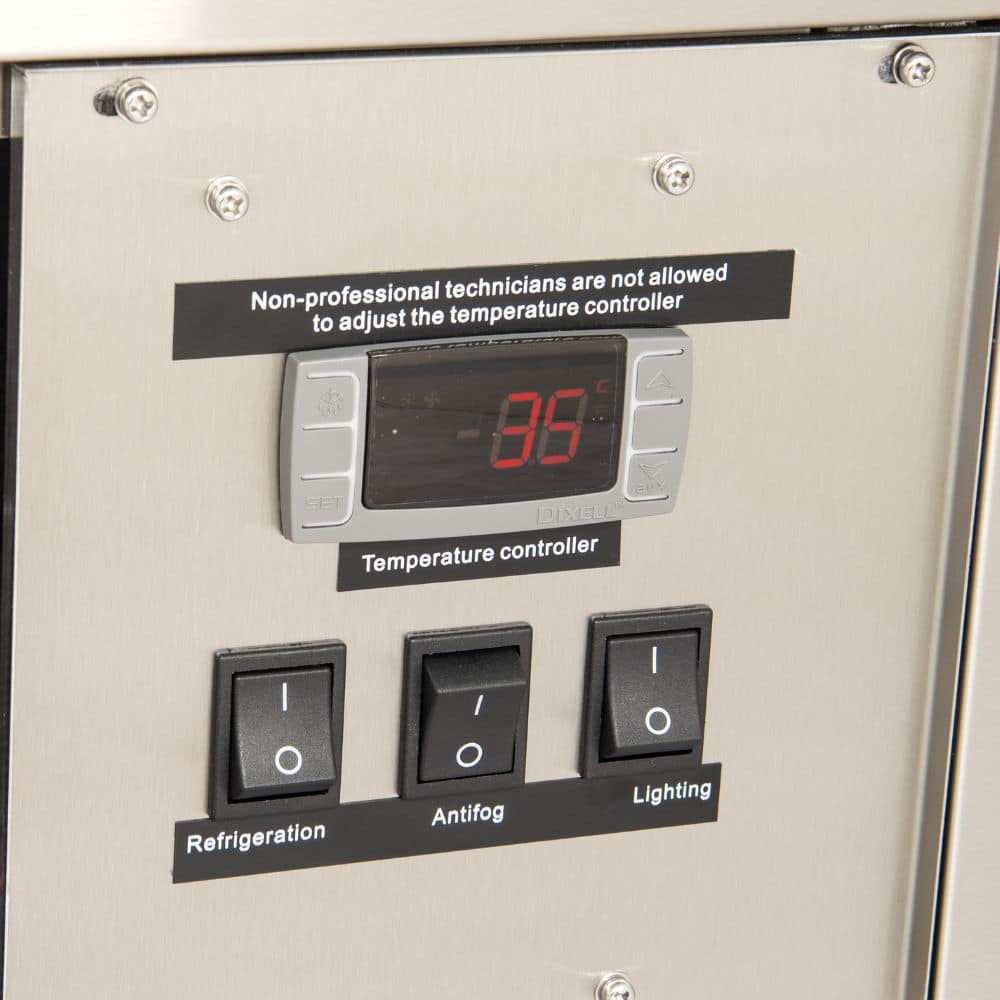

• Temperature range +1°C to +5°C with digital controller.
• R290 natural refrigerant for energy-efficient, lower-emission operation.
• Heated glass on the front, top, and sides to prevent condensation and maintain product visibility.
• Invisible heat elements combined with an internal air curtain to further eliminate condensation.

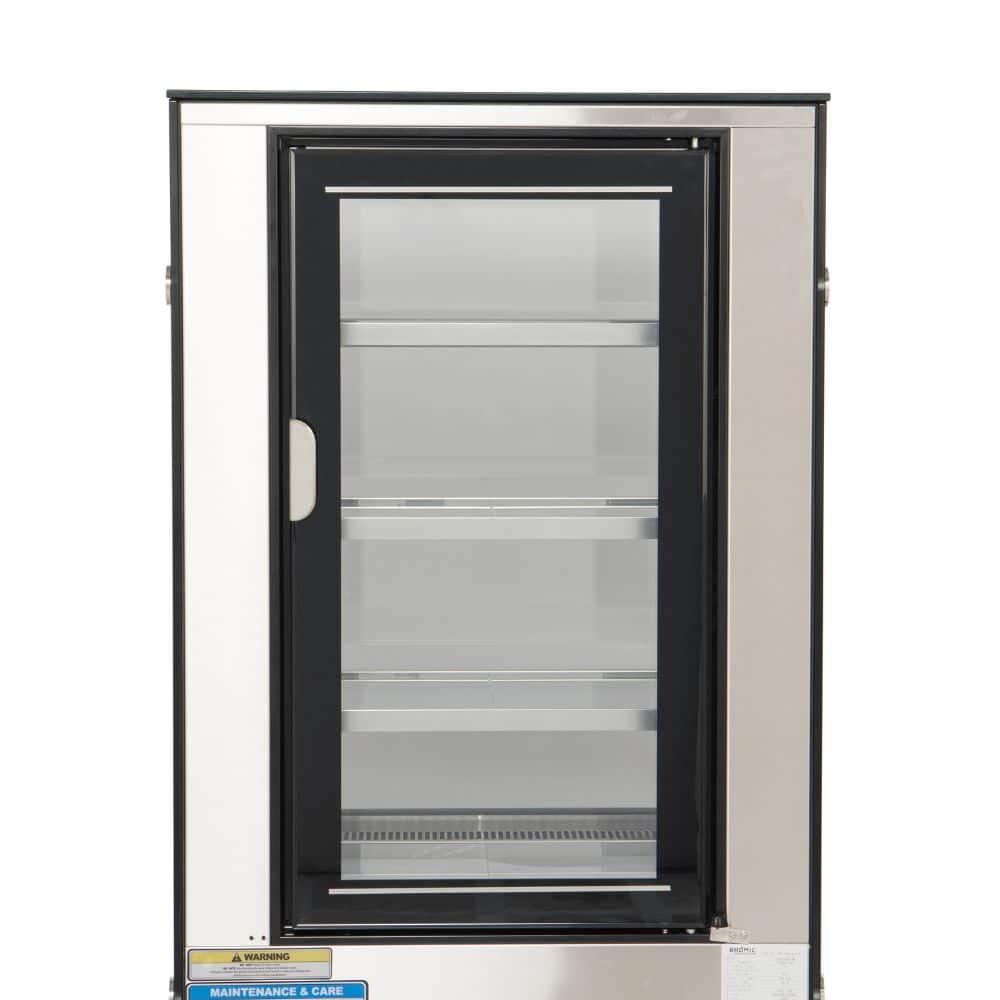

• Heated hinged rear door for easy staff access with minimal temperature loss.
• Single hinged front glass door, double-glazed, 480mm door swing, 1182mm total depth when open.

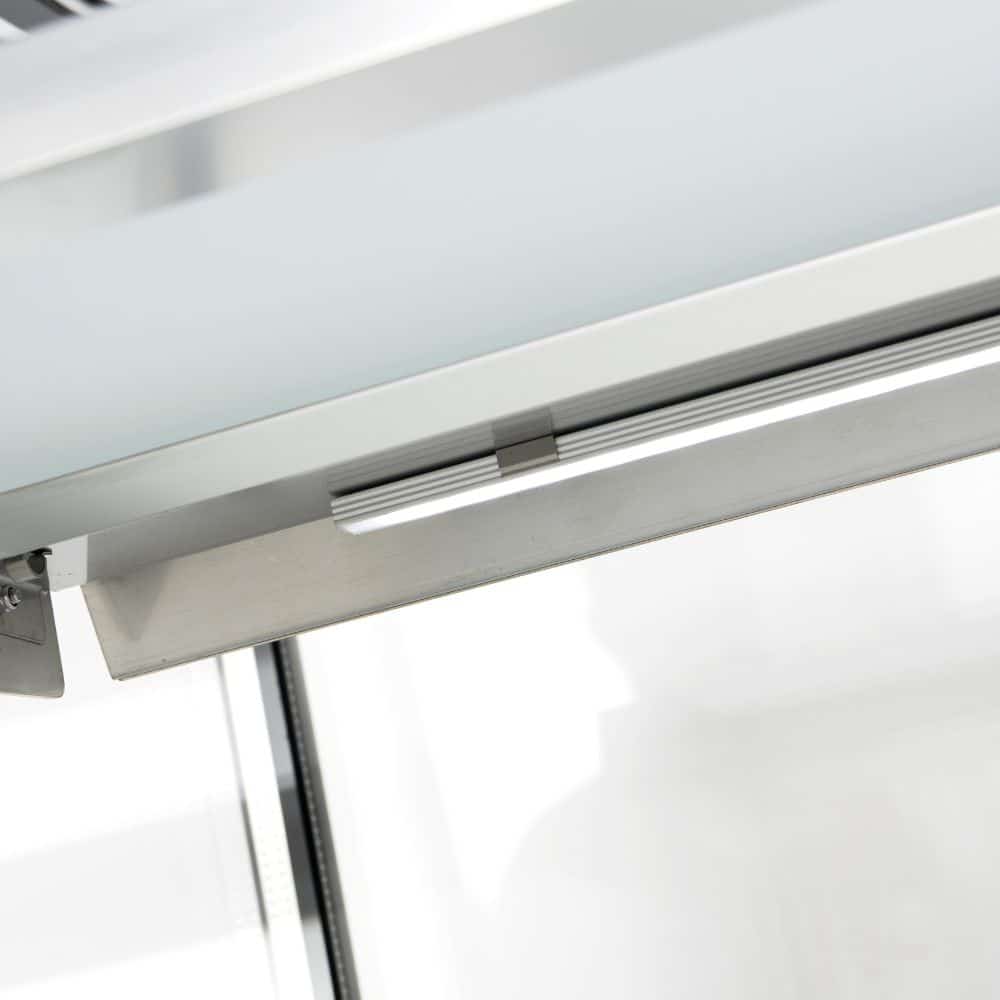

• High-impact LED internal lighting for bright, attractive product presentation.
• Removable shelf inserts for straightforward cleaning.
• Toughened safety glass throughout for superior durability.
• Corrosion-resistant construction for longevity in commercial environments.
• Compliant with Australian safety standards and regulations.
• Climate Class 3M1, rated to 32°C maximum ambient temperature.
• Single-phase, 220V, 3A, 50Hz electrical supply; 540W refrigeration capacity.
• Supplied with one 10A plug, located at the rear bottom right.
• Energy rating of 4 stars; energy consumption 9.4 kWh/24h.
• Castors included for easy repositioning and cleaning access.
• Packaged dimensions 760(w) x 850(d) x 1510(h)mm; packed weight 205kg.
• 5 Years Bromic Extra Care Warranty covering labour and parts.

Specifications

• Width (mm): 660
• Depth (mm): 740
• Height (mm): 1360
• Weight (kg): 195
• Shipping Weight: 205
• Packed Width (mm): 760
• Packed Height (mm): 850
• Packed Depth (mm): 1510
• No. of Doors: 1
• Door Type: Glass
• Caster Type: Yes
• Glass Type: Double glazed
• Door Style: Hinged
• Door Swing Dimension: 480mm
• Self-Closing Door: No
• Shelf Dimensions: 577(w) x 307(d) mm, 577(w) x 342(d) mm, 577(w) x 377(d) mm
• Shelving Type: Adjustable
• Total Depth of Door Open: 1182mm
• Voltage (V): 220
• Phase: Single Phase
• Amps (A): 3
• Frequency (Hz): 50
• Plug Location: Rear, bottom right
• Plug Supplied: 1 x 10A
• Energy Rating: 4
• Warranty (months): 5 Years Bromic Extra Care Warranty - Labour and Parts
• Energy Consumption (kWh/24h): 9.4
• Refrigerant: R290
• Temperature Range: +1°C to +5°C
• Climate Class: 3M1
• Max Ambient Temp (°C): 32
• Refrigeration Capacity (W): 540
• Min Temp (°C): 1
• Max Temp (°C): 5
• Bowl Depth (mm): 590(w)x647(d)x828(h)mm
• Capacity (Litres): 300
• Interior Lighting: LED
• Control Type: Digital
