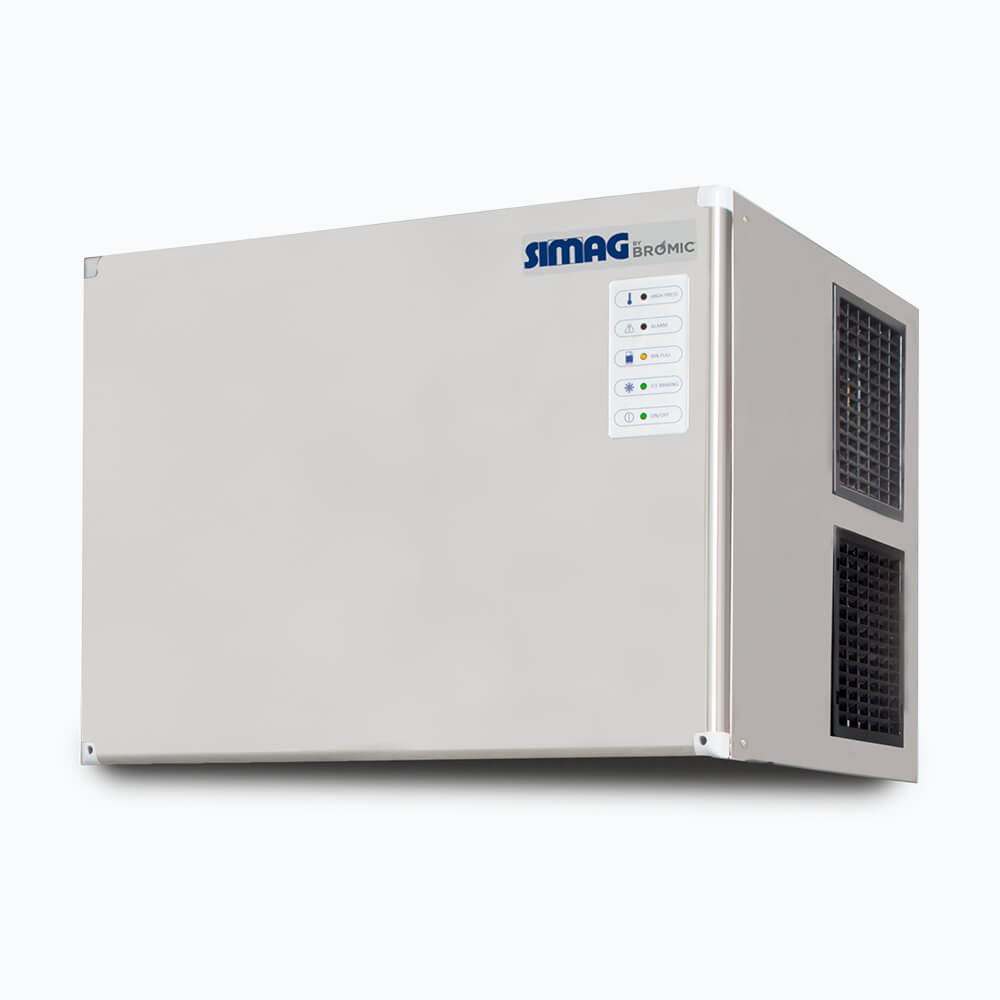

Bromic IM0320HDM Modular Ice Machine Head Only - Half Dice 320kg/24h

The Bromic IM0320HDM is a high-capacity modular ice machine head designed for demanding commercial and hospitality environments, producing up to 320kg of half dice ice every 24 hours. Built with stainless steel internal and external construction for corrosion resistance and easy cleaning, the unit features Agion-treated antimicrobial materials to maintain strict hygiene standards and inhibit bacterial growth.

As a head-only unit, the IM0320HDM mounts onto a compatible Bromic storage bin (SB129, SB178, SB243, SB406, sold separately), giving operators the flexibility to match storage capacity to their specific venue requirements. Rated for ambient temperatures up to 40°C, it is well suited to warm kitchen environments, and its efficient cooling system circulates air through vents to minimise the ventilation clearance needed during installation. The unit is backed by Bromic's 5 Year Extra Care Warranty covering parts and labour.

Key Benefits

• Produces up to 320kg of half dice ice per 24 hours, keeping pace with peak demand in high-volume hospitality and food service operations.
• Half dice ice format is versatile for drinks service, blending, food display and general cooling applications.
• Modular head-only design pairs with a choice of Bromic storage bins, allowing storage capacity to be scaled independently to suit the venue.
• Rated to 40°C ambient temperature, ensuring reliable, consistent ice production even in warm or enclosed kitchen environments.
• Air-through-vent cooling system reduces the horizontal and vertical clearance required, simplifying installation in tight spaces.
• Agion-treated antimicrobial materials throughout suppress bacterial growth, supporting food safety and reducing cleaning effort.
• Electric PCB controller enables straightforward operation with simple adjustment of settings and monitoring of ice production.
• Low water consumption of 15.6L/h and an energy draw of 16.3kWh per 24 hours help keep ongoing running costs manageable.
• Stainless steel internal and external construction offers long-term durability, corrosion resistance and ease of sanitation.

Key Features

• Ice type: half dice, suited to blending, beverages and general food service use.
• Production capacity: up to 320kg per 24 hours (based on 10°C ambient and 10°C water temperature as tested by the manufacturer).
• Head-only modular configuration; compatible storage bins SB129, SB178, SB243 and SB406 sold separately.
• Stainless steel internal and external construction for durability, corrosion resistance and simplified cleaning.
• Agion antimicrobial treatment applied to materials to inhibit growth of harmful bacteria and maintain hygiene.
• Electric PCB controller for smart, simple operation and easy monitoring of ice production settings.
• Air-circulating vent cooling system minimises required installation clearance, both horizontal and vertical.
• Refrigerant: R404a.
• Rated ambient operating temperature: up to 40°C.
• Water consumption: 15.6L/h.
• Energy consumption: 16.3kWh per 24 hours.
• Single phase, 220V, 50Hz electrical supply.
• 16A plug supplied, located at the rear bottom right of the unit.
• Refrigeration capacity: 1,600W.
• Unit dimensions: 760(w) x 620(d) x 575(h)mm; unit weight: 73kg.
• Packaged dimensions: 830(w) x 690(d) x 770(h)mm; packed weight: 78kg.
• Backed by Bromic's 5 Year Extra Care Warranty covering both parts and labour.

Specifications

• Width (mm): 760
• Depth (mm): 620
• Height (mm): 575
• Weight (kg): 73
• Water Consumption: 15.6L/h
• Shipping Weight: 78
• Packed Width (mm): 830
• Packed Height (mm): 690
• Packed Depth (mm): 770
• Voltage (V): 220
• Phase: Single Phase
• Frequency (Hz): 50
• Plug Location: Rear, bottom right
• Plug Supplied: 1 x 16A
• Refrigerant: R404a
• Max Ambient Temp (°C): 40
• Ice Type: Half Dice
• Ice Weight (kg): 10
• Refrigeration Capacity (W): 1600
• Warranty (months): 5 Years Bromic Extra Care Warranty - Labour and Parts
• Energy Consumption (kWh/24h): 16.3
