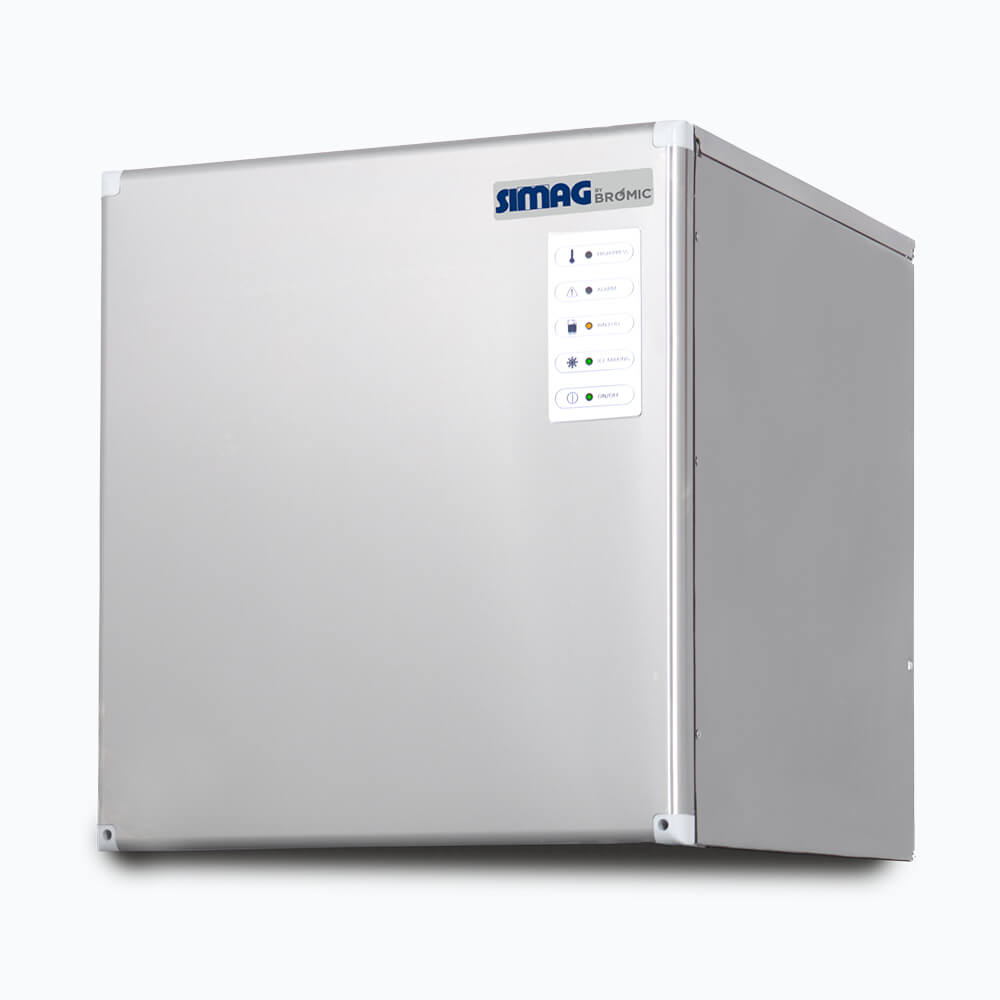

Bromic IM0160HDM Modular Ice Machine Head Only - Half Dice 160kg/24h

The Bromic IM0160HDM is a commercial modular ice machine head designed for high-volume hospitality environments, producing up to 160kg of half dice ice per 24 hours. As a head-only unit, it pairs with a separately purchased Bromic storage bin (compatible with SB129, SB178, SB243 and SB406) so operators can right-size their storage capacity to match actual demand without over-investing in a single fixed configuration.

Built with stainless steel internal and external construction for corrosion resistance and easy cleaning, the IM0160HDM incorporates Agion antimicrobial-treated materials to maintain hygiene and inhibit bacterial growth. An electric PCB controller provides straightforward operation and monitoring, while the ventilation system channels air through internal vents to minimise required clearance, simplifying installation in tight commercial spaces. The unit runs on R404a refrigerant, is rated for ambient temperatures up to 40°C, and is backed by Bromic's 5 Year Extra Care Warranty covering both parts and labour.

Key Benefits

• Produces up to 160kg of half dice ice per day, keeping pace with peak-period demand in busy bars, restaurants and catering operations.
• Half dice ice format is well suited to blended drinks, cold beverages and general food service, offering versatility across menu applications.
• Modular head-only design allows pairing with multiple Bromic bin sizes (SB129, SB178, SB243, SB406) so storage capacity can be scaled precisely to venue needs.
• Rated to 40°C ambient temperature, ensuring consistent ice production even in warm kitchen or outdoor-adjacent environments.
• Low water consumption of 7.6L per hour helps reduce ongoing running costs compared to less efficient alternatives.
• Stainless steel interior and exterior construction resists corrosion and simplifies daily cleaning and sanitation routines.
• Agion antimicrobial-treated materials actively inhibit bacterial growth, supporting food safety and hygiene compliance.
• Internal air-channelling ventilation reduces the horizontal and vertical clearance required, making the unit easier to install in space-constrained areas.
• Backed by Bromic's 5 Year Extra Care Warranty (parts and labour), providing long-term operational confidence.

Key Features

• Half dice ice type - hard, pure ice suitable for consumption, cooling and blending applications.
• Output capacity up to 160kg per 24 hours (based on 10°C ambient and 10°C water temperature as tested by the manufacturer).
• Modular head-only configuration; bin sold separately - compatible with Bromic bins SB129, SB178, SB243 and SB406.
• R404a refrigerant system with 950W refrigeration capacity.
• Rated for ambient operating temperatures up to 40°C.
• Water consumption of 7.6L per hour.
• Energy consumption of 15.9kWh per 24 hours.
• Stainless steel internal and external construction for corrosion resistance and ease of cleaning.
• Agion antimicrobial-treated materials to prevent the growth of harmful bacteria and maintain hygiene.
• Electric PCB controller for smart, simple operation and monitoring of ice production.
• Internal ventilation design channels airflow through vents, reducing required installation clearance.
• Single phase, 220V, 50Hz electrical supply; supplied with a 10A plug located at the rear bottom right.
• Unit dimensions: 558(w) x 610(d) x 609(h)mm; unit weight 55kg.
• Packaged dimensions: 620(w) x 680(d) x 800(h)mm; packed weight 60kg.
• 5 Year Bromic Extra Care Warranty covering both parts and labour.

Specifications

• Width (mm): 558
• Depth (mm): 610
• Height (mm): 609
• Weight (kg): 55
• Water Consumption: 7.6L/h
• Shipping Weight: 60
• Packed Width (mm): 620
• Packed Height (mm): 680
• Packed Depth (mm): 800
• Voltage (V): 220
• Phase: Single Phase
• Frequency (Hz): 50
• Plug Location: Rear, bottom right
• Plug Supplied: 1 x 10A
• Refrigerant: R404a
• Max Ambient Temp (°C): 40
• Ice Type: Half Dice
• Ice Weight (kg): 10
• Refrigeration Capacity (W): 950
• Warranty (months): 5 Years Bromic Extra Care Warranty - Labour and Parts
• Energy Consumption (kWh/24h): 15.9
