Overview

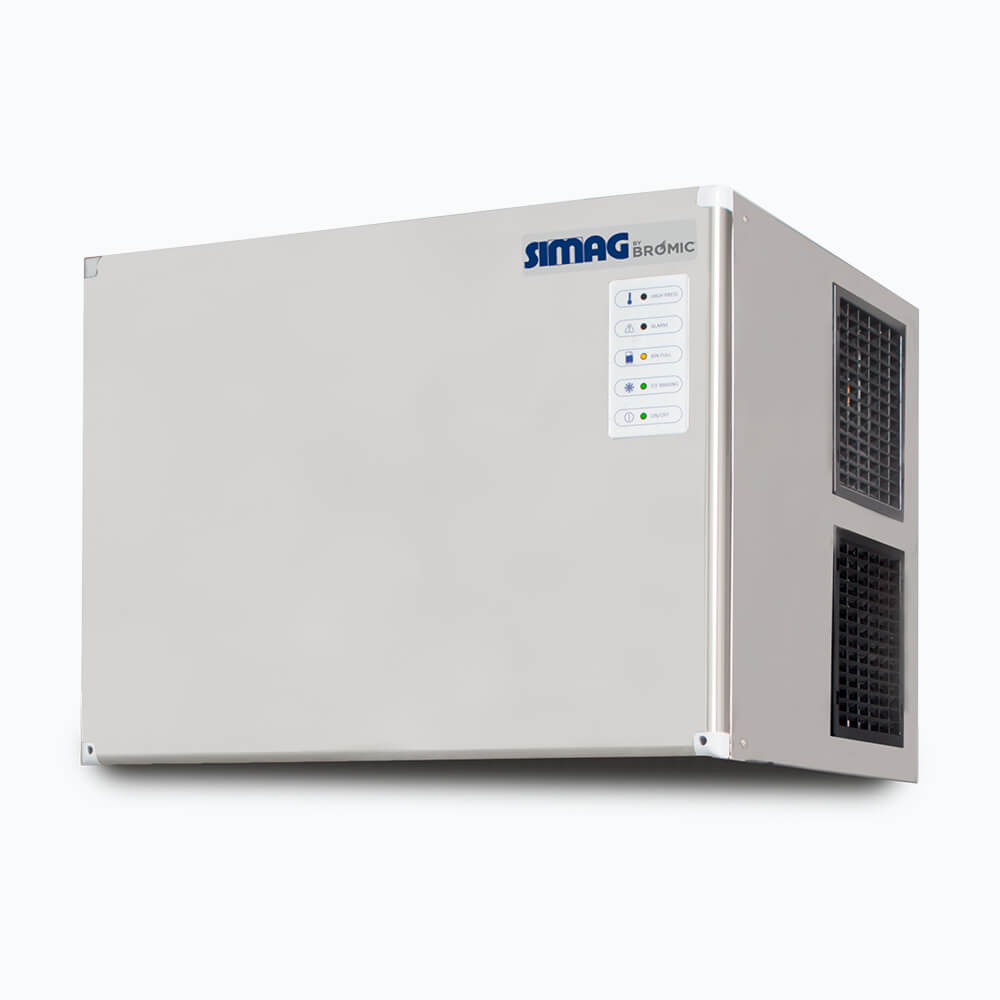

Bromic IM0485HDM Modular Ice Machine Head Only - Half Dice 485kg/24h

The Bromic IM0485HDM is a high-capacity modular ice machine head designed for demanding commercial and hospitality environments, producing up to 485kg of half dice ice every 24 hours. Built with stainless steel internal and external construction for corrosion resistance and easy cleaning, it features Agion-treated antimicrobial materials to maintain strict hygiene standards and inhibit bacterial growth.

As a head-only unit, the IM0485HDM mounts directly onto a compatible Bromic storage bin (SB129, SB178, SB243 or SB406, each sold separately), giving operators the flexibility to match ice storage capacity to their specific venue requirements. Rated for ambient temperatures up to 40°C, running on R404a refrigerant, and consuming just 22.3L/h of water, it is engineered for efficient, reliable output in warm commercial kitchens, bars and food service operations. The unit is backed by Bromic's 5 Year Extra Care Warranty covering both parts and labour.

Key Benefits

• Produces up to 485kg of half dice ice per 24 hours to meet high-volume demand in busy hospitality and food service venues.
• Half dice ice format is well suited to cold drinks, blending applications and general food service use, offering versatility across multiple menu requirements.
• Modular head-only design pairs with a choice of four Bromic storage bins so operators can scale ice storage capacity to actual venue demand without over-investing.
• Agion antimicrobial treatment on internal materials actively inhibits bacterial growth, supporting consistent food safety and hygiene compliance.
• Stainless steel internal and external construction resists corrosion and simplifies routine cleaning and maintenance.
• Electric PCB controller provides smart yet straightforward operation, making it easy to adjust settings and monitor ice production at a glance.
• Air-cooled ventilation system moves air through dedicated vents, reducing the need for extensive horizontal or vertical clearance and simplifying installation in tight spaces.
• Rated to 40°C ambient temperature, ensuring dependable ice output even in warm kitchen or back-of-house environments.
• Low water consumption of 22.3L/h and energy use of 13.9kWh per 24 hours help keep ongoing operating costs under control.

Key Features

• Half dice ice type, suitable for blending, beverages and general food service applications.
• Maximum ice production output of up to 485kg per 24 hours.
• Modular head-only configuration; compatible storage bins are SB129, SB178, SB243 and SB406 (all sold separately).
• Stainless steel internal and external construction for corrosion resistance and ease of cleaning.
• Agion-treated antimicrobial materials across internal components to prevent bacterial growth and maintain hygiene.
• Electric PCB controller for straightforward operation, settings adjustment and production monitoring.
• Air-cooled system that directs airflow through vents, minimising required installation clearance.
• R404a refrigerant with a refrigeration capacity of 2,500W.
• Rated for ambient operating temperatures up to 40°C.
• Water consumption of 22.3L/h.
• Energy consumption of 13.9kWh per 24 hours.
• Single-phase, 220V, 50Hz electrical supply.
• Supplied with one 30A plug, located at the rear bottom right of the unit.
• Unit dimensions: 760mm wide x 620mm deep x 800mm high; weight 104kg.
• Packaged dimensions: 830mm wide x 690mm deep x 770mm high; packed weight 109kg.
• Backed by Bromic's 5 Year Extra Care Warranty covering both parts and labour.

Specifications

• Width (mm): 760
• Depth (mm): 620
• Height (mm): 800
• Weight (kg): 104
• Water Consumption: 22.3L/h
• Shipping Weight: 109
• Packed Width (mm): 830
• Packed Height (mm): 690
• Packed Depth (mm): 770
• Voltage (V): 220
• Phase: Single Phase
• Frequency (Hz): 50
• Plug Location: Rear, bottom right
• Plug Supplied: 1 x 30A
• Refrigerant: R404a
• Max Ambient Temp (°C): 40
• Ice Type: Half Dice
• Ice Weight (kg): 10
• Refrigeration Capacity (W): 2500
• Warranty (months): 5 Years Bromic Extra Care Warranty - Labour and Parts
• Energy Consumption (kWh/24h): 13.9
