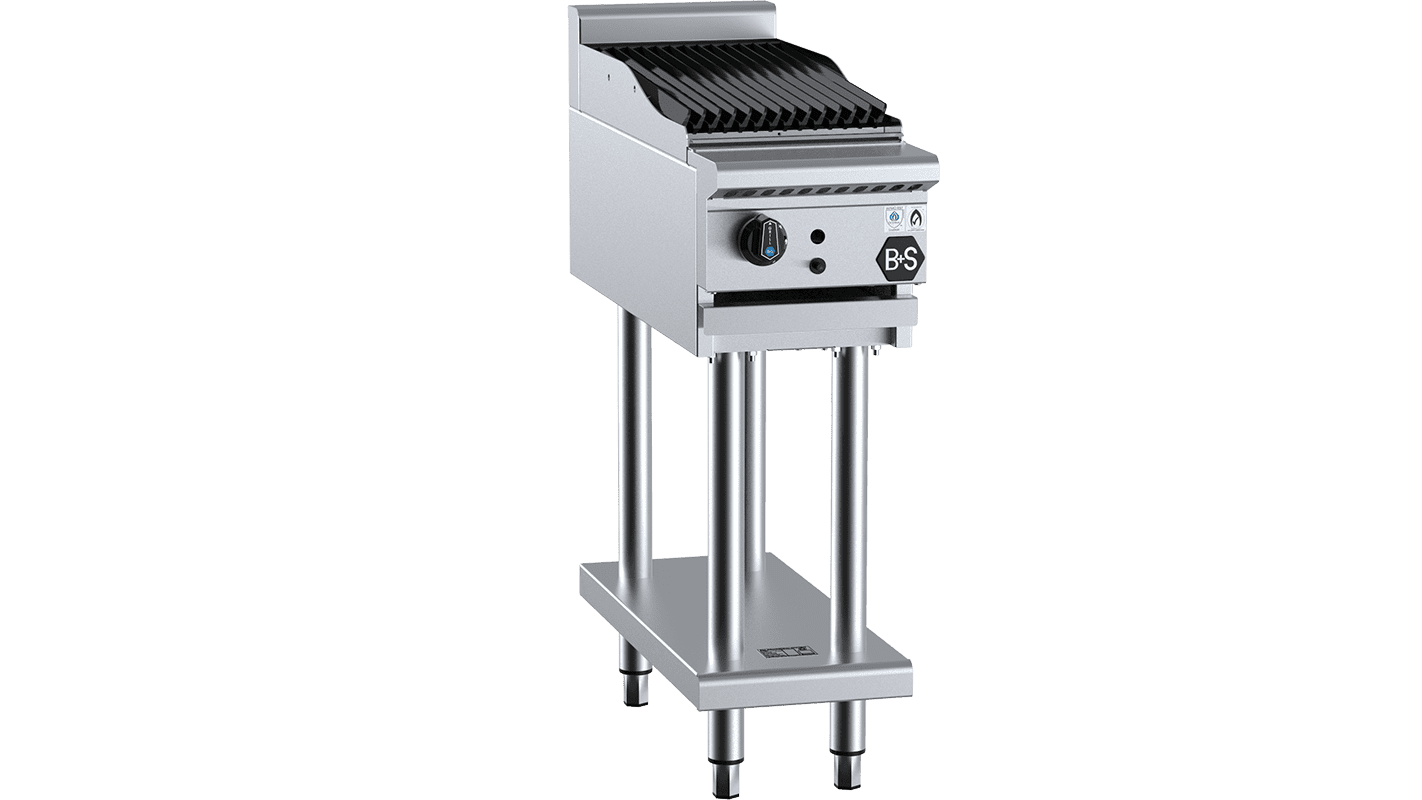

B+S Black Char Broiler 300mm CBR-3

The B+S Black Char Broiler 300mm CBR-3 is a compact, high-output commercial gas char broiler built for demanding restaurant, café, hotel and catering kitchens. Constructed from AISI 304 grade stainless steel with a heavy-duty stainless steel frame, it is manufactured in Italy to proven commercial standards and arrives ready to use on an integrated open stand with under shelf.

Measuring 300mm wide, this unit delivers up to 34 MJ/h on natural gas (30 MJ/h on LPG) through a single burner fitted with piezo ignition, a flame failure safety device and a multi-setting gas valve for precise flame control. Heavy-duty cast-iron J-grates and a cast-iron radiant hood work together to distribute heat evenly across the cooking surface, producing authentic chargrilled results with every service.

Key Benefits

• Cast-iron J-grates generate intense, even searing heat for authentic chargrilled flavour on meat, seafood and vegetables.
• A cast-iron radiant hood above the burner disperses heat uniformly across the grates, eliminating hot spots and improving cook consistency.
• Special drainage channels in the grates direct fat away to a front-mounted grease trough, keeping the cooking surface cleaner and reducing flare-up risk.
• Piezo ignition with a flame failure safety device allows fast, reliable lighting and shuts off gas automatically if the flame is extinguished.
• A multi-setting gas valve gives operators fine control over flame intensity, supporting a wider range of cooking temperatures and techniques.
• Frontal access to all components simplifies routine servicing and maintenance without the need to move the unit.
• The open stand with under shelf makes efficient use of floor space by providing convenient storage for cooking utensils close at hand.
• Dual gas compatibility (natural gas and LPG) with an included regulator means straightforward installation in virtually any commercial kitchen environment.
• A 24-month parts and labour warranty provides peace of mind and minimises total cost of ownership over the unit's service life.

Key Features

• 300 x 533mm cast-iron J-grate cooking surface with drainage channels directing fat to a front-mounted grease trough
• Cast-iron radiant hood positioned above the burner for even heat distribution across the grates
• Single gas burner rated up to 34 MJ/h on natural gas and 30 MJ/h on LPG
• Piezo ignition for quick, reliable start-up
• Flame failure safety device cuts gas supply if the flame goes out
• Multi-setting gas valve for accurate, stepless flame regulation
• AISI 304 grade stainless steel body with vitreous enamel elements
• Heavy-duty stainless steel frame construction for long-term stability
• Open stand with under shelf for utensil storage
• Easy-to-clean fat spillage tray
• Frontal access to all components for straightforward servicing
• 3/4" BSP gas connection
• Regulator included
• Compatible with natural gas and LPG
• Made in Italy
• 24-month warranty (parts and labour)

Specifications

• Width (mm): 300
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 100
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 34
• Gas Input - LPG (MJ/h): 30
• Burner Output (MJ/h): 26
• Shipping Weight: 55
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 350.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: Multi-setting Gas Valve
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron J-Grates
• Cooking Surface Area (mm): 300 x 533
• Power Rating: 26 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
