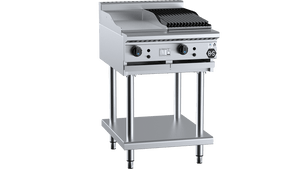

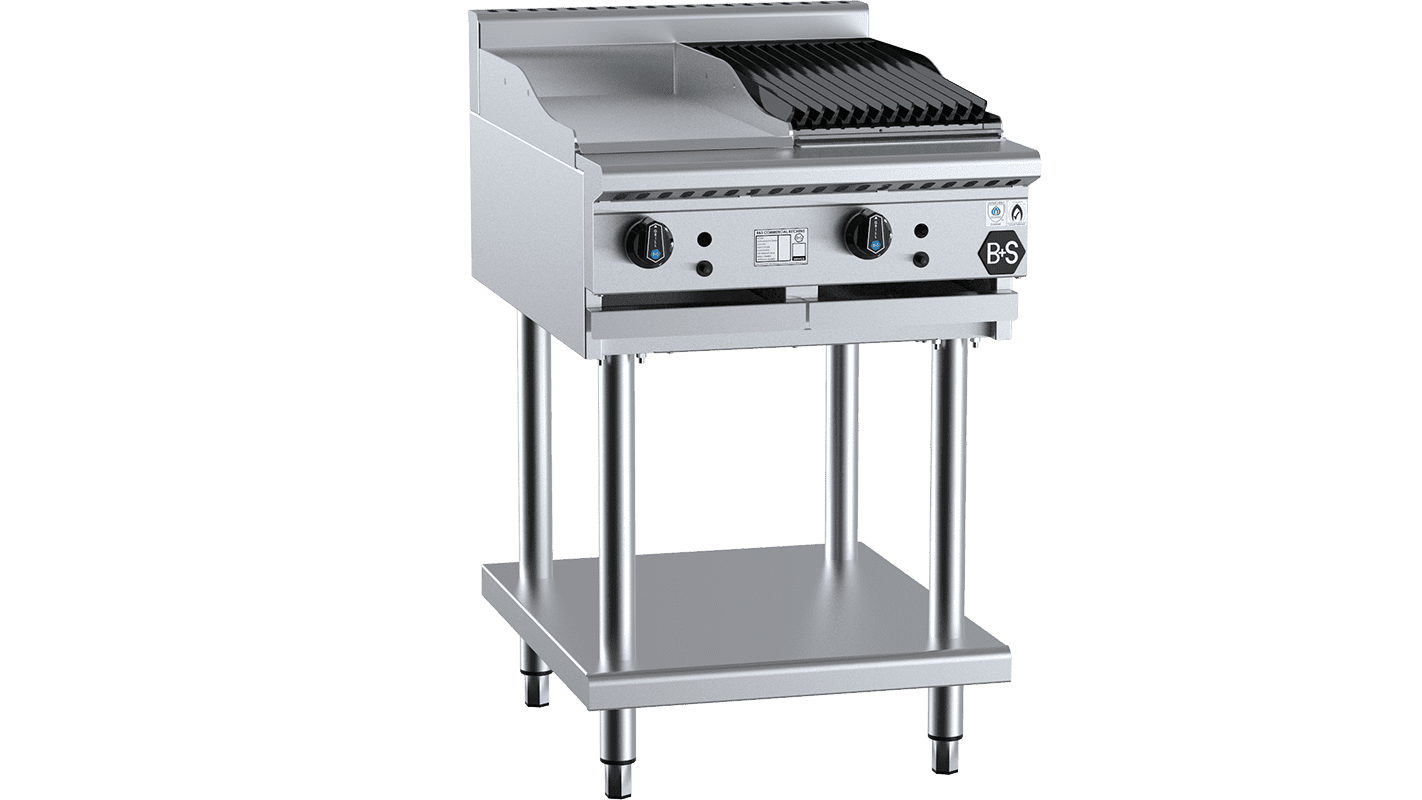

B+S Black Combination 300mm Grill Plate & 300mm Char Broiler on Stand BT-GRP3-CBR3

The B+S Black BT-GRP3-CBR3 is a 600mm wide commercial gas combination cooktop, pairing a 300mm mild steel grill plate section with a 300mm char broiler section on an integrated open stand with undershelf. Italian-made from AISI 304 grade stainless steel with a top-welded smooth finish design, it delivers up to 56 MJ/h on natural gas or 52 MJ/h on LPG, making it well suited to the sustained high-output demands of restaurants, cafes, hotels and catering operations.

The grill plate section uses a 22 MJ aluminised tube burner beneath a heavy-duty 12mm thick mild steel plate, while the char broiler section uses a 34 MJ stainless steel U-burner under heavy-duty cast iron J-grates and radiant hoods. Piezo ignition with flame failure device, multi-setting gas valves on every burner, a front-access service design, and an easy-clean fat spillage tray all contribute to fast start-up, precise temperature control and straightforward day-to-day maintenance in a busy commercial kitchen.

Key Benefits

• Combines a flat grill plate and a char broiler in a single 600mm footprint, reducing equipment costs and bench space while expanding the cooking menu.
• A total gas input of up to 56 MJ/h on natural gas ensures rapid heat recovery and consistent output during peak service periods.
• Multi-setting gas valves on each section allow fine flame adjustment from searing heat to a gentle hold, supporting precise cooking across different menu items.
• Piezo ignition with flame failure device provides quick, reliable lighting and an added layer of safety in a fast-paced kitchen environment.
• Front access to all components simplifies routine servicing and reduces technician time on-site, keeping downtime to a minimum.
• The easy-clean fat spillage tray catches drippings from both cooking sections, making end-of-service clean-down faster and helping maintain hygiene standards.
• An open stand with undershelf keeps frequently used utensils and equipment within arm's reach of the cook, supporting an efficient workflow.
• Heavy-duty cast iron J-grates and radiant hoods on the char broiler section retain and radiate heat evenly, producing consistent char marks and thorough cooking results.
• A 24-month parts and labour warranty, Italian manufacture, and AISI 304 stainless steel construction deliver long-term reliability and confidence in a commercial setting.

Key Features

• AISI 304 grade stainless steel construction with top-welded smooth finish design
• Heavy-duty stainless steel frame construction on an integrated open stand with undershelf
• 300mm grill plate section: 22 MJ aluminised tube burner with heavy-duty 12mm thick mild steel grill plate
• 300mm char broiler section: 34 MJ stainless steel U-burner with heavy-duty cast iron J-grates and radiant hoods
• Total gas input: 56 MJ/h natural gas / 52 MJ/h LPG across 2 burners
• Piezo ignition with flame failure device on each burner
• Multi-setting gas valve on each burner for greater regulation of flame
• 3/4" BSP gas connection; compatible with natural gas or LPG
• Regulator included with the unit
• Easy-clean fat spillage tray beneath cooking sections
• Front access to all components for straightforward servicing and maintenance
• Vitreous enamel elements complement the stainless steel body
• Made in Italy
• 24-month warranty (parts and labour)
• Must be installed by an authorised installer

Specifications

• Width (mm): 600
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 67
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 56
• Gas Input - LPG (MJ/h): 52
• Burner Output (MJ/h): 52
• Shipping Weight: 93
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 650.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: Multi-setting Gas Valve
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Cast Iron J-Grates
• Cooking Surface Area (mm): 600 x 533
• Power Rating: 52 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
