Overview

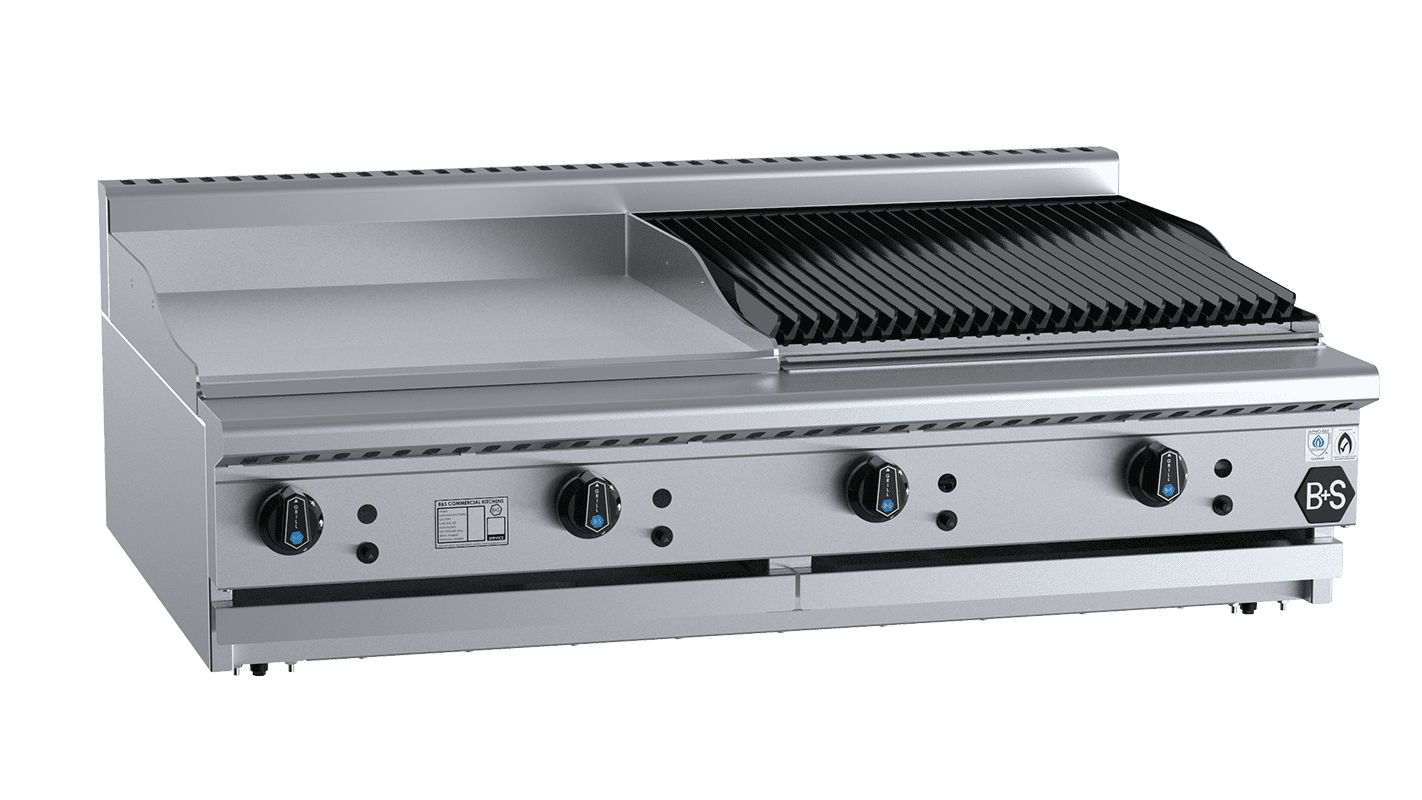

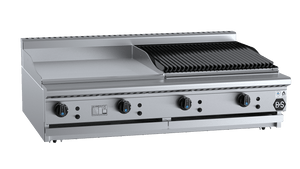

B&S Black Combination 600mm Grill Plate & 600mm Char Broiler Bench Mounted BT-GRP6-CBR6BM

The B&S Black BT-GRP6-CBR6BM is a 1200mm wide commercial gas combination unit pairing a 600mm mild steel grill plate section with a 600mm char broiler section, bench mounted and built for high-output service in restaurants, cafes, hotels and catering operations. Constructed from AISI 304 grade stainless steel with a heavy-duty stainless steel frame, it is made in Italy and rated at up to 112 MJ/h on natural gas or 104 MJ/h on LPG across its burner array.

Each section is purpose-engineered for its cooking style: the grill plate section uses 22 MJ aluminised tube burners per 300mm section beneath a 16mm thick heavy-duty mild steel plate, while the char broiler section uses 34 MJ stainless steel burners per 300mm section paired with heavy-duty cast iron J-grates and radiant hoods. A gas regulator is included, and the unit must be installed by an authorised installer.

Key Benefits

• Combines a flat grill plate and char broiler in a single 1200mm footprint, reducing the need for separate units and saving valuable bench space.
• High total gas input of 112 MJ/h on natural gas (104 MJ/h on LPG) supports rapid heat recovery and sustained output during peak service.
• Multi-setting gas valves on every burner allow precise flame regulation across a wide range, giving chefs accurate temperature control for different menu items.
• Flame failure device fitted as standard provides an essential safety cut-off if the flame is extinguished, protecting staff and equipment.
• 16mm thick heavy-duty mild steel grill plate retains and distributes heat evenly for consistent searing and cooking results on the GRP section.
• Cast iron J-grates and radiant hoods on the char broiler section deliver authentic chargrilled flavour and even radiant heat across the cooking surface.
• Easy-access fat spillage trays and front-accessible components simplify daily cleaning and routine servicing, minimising downtime.
• AISI 304 stainless steel construction throughout resists corrosion, withstands heavy commercial use and meets hygiene standards for commercial kitchen environments.
• Backed by a 24-month parts and labour warranty, providing peace of mind for commercial operators.

Key Features

• AISI 304 grade stainless steel construction throughout the frame and body
• Heavy-duty complete stainless steel frame for long-term structural stability
• 600mm grill plate (GRP) section with 22 MJ aluminised tube burners per 300mm section
• 600mm char broiler (CBR) section with 34 MJ stainless steel burners per 300mm section
• 16mm thick heavy-duty mild steel grill plate on the GRP section
• Heavy-duty cast iron J-grates and radiant hoods on the CBR section
• Multi-setting gas valve on each burner for greater flame regulation
• Flame failure device fitted as standard on all burners
• Piezo ignition for quick and reliable lighting
• Easy-clean fat spillage trays
• Front access to all components for straightforward servicing and adjustment
• Compatible with natural gas and LPG
• 3/4" BSP gas connection
• Gas regulator included
• Bench-mounted configuration
• 1200mm wide overall unit combining both cooking sections
• Made in Italy
• 24-month warranty covering parts and labour
• Must be installed by an authorised installer

Specifications

• Width (mm): 1200
• Depth (mm): 840
• Height (mm): 425
• Weight (kg): 133
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 112
• Gas Input - LPG (MJ/h): 104
• Burner Output (MJ/h): 104
• Shipping Weight: 167
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 1250.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 24 months (Parts and Labour)
• Installation Type: Freestanding
• Temperature Control: Multi-setting Gas Valve
• Mounting Type: Benchtop
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Plate Thickness (mm): 16
• Griddle Surface: Cast Iron J-Grates
• Cooking Surface Area (mm): 1200 x 533
• Power Rating: 104 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
