Overview

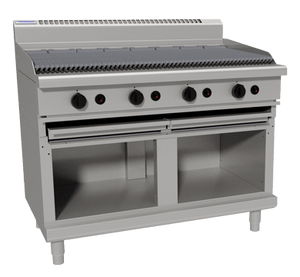

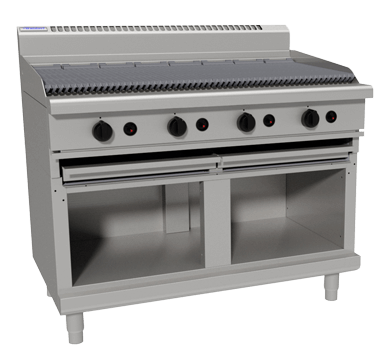

Waldorf CH8120G-CB 800 Series 1200mm Gas Chargrill with Cabinet Base

The Waldorf CH8120G-CB is a heavy-duty 1200mm gas chargrill from the 800 Series, mounted on a cabinet base and purpose-built for high-volume commercial kitchen environments. Four stainless steel U-burners deliver a combined output of 133 MJ/h (36.9 kW), producing consistent, intense heat across the full cast iron grate surface for authentic char marks on meats, seafood and vegetables.

Engineered and manufactured in New Zealand from 304 stainless steel, this chargrill is designed with day-to-day service in mind. An inclined grate arrangement channels grease away from the heat source and into a front collection channel, while lift-out radiants, burners and baffles make cleaning and routine maintenance straightforward. Compatible with both natural gas and LPG, the CH8120G-CB suits a wide range of commercial kitchen setups.

Key Benefits

• Four individual 33 MJ/h burners with variable high-low temperature control allow different grill zones to be set independently, improving menu flexibility during service.
• Inclined grate fin design diverts grease into a front collection channel rather than onto the burners, actively reducing flare-ups and keeping the cooking surface safer and cleaner.
• Full pilot and flame failure protection on every burner provides an important safety safeguard, automatically shutting off gas if a flame is extinguished.
• Reversible heavy-duty cast iron grates extend the working life of the cooking surface and allow operators to choose the optimal side for different produce.
• Lift-out radiants, burners and grease tray baffles simplify end-of-service cleaning, reducing labour time and helping maintain food safety standards.
• Heavy-duty heat-resistant reinforced control knobs withstand the rigours of a busy kitchen and remain easy to operate even during peak service.
• Cabinet base provides enclosed under-bench storage directly beneath the chargrill, making efficient use of valuable kitchen floor space.
• Dual gas compatibility (natural gas and LPG) via a 3/4 BSP male connection offers installation flexibility across a variety of commercial premises.
• Constructed from 304 stainless steel with a 24-month warranty, delivering long-term durability and peace of mind for commercial operators.

Key Features

• 1200mm wide gas chargrill mounted on an enclosed cabinet base
• 4 x 33 MJ/h 304 stainless steel U-burners, totalling 133 MJ/h (36.9 kW) output
• Reversible heavy-duty cast iron top grates
• Inclined grate position with fin design to minimise flare-ups and direct grease into a front collection channel
• Full pilot and flame failure protection provided per burner
• Continuous pilot burner on each zone for reliable ignition
• Lift-out radiants, burners and grease tray baffles for easy cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• Integrated splashback included
• Cabinet door underbody with enclosed storage
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; 3/4 BSP male gas connection
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 133
• Shipping Weight: 322
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron Grates
• Power Rating: 36.9 kW
• Temperature Control: Variable High-Low
