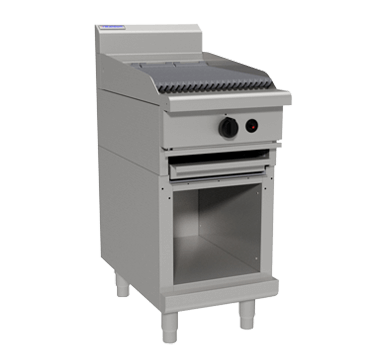

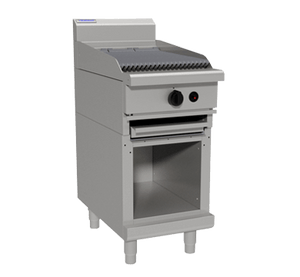

Waldorf CH8450G-CB 800 Series 450mm Gas Chargrill with Cabinet Base

The Waldorf CH8450G-CB is a 450mm wide gas chargrill from the 800 Series, mounted on a cabinet base and constructed from 304 stainless steel for long-term durability in demanding commercial kitchen environments. Delivering 48MJ/hr through a stainless steel U-burner, it produces authentic char marks and consistent high heat across the cast iron grate surface, making it equally suited to meats, seafood and vegetables.

Designed with the operator in mind, the CH8450G-CB features reversible heavy-duty cast iron top grates, an inclined grate surface with flare-reducing fin design that channels grease into a front collection trough, and fully lift-out radiants, burners and grease tray baffles for straightforward cleaning and servicing. Compatible with both natural gas and LPG, it ships from New Zealand and carries a 24-month warranty.

Key Benefits

• Delivers authentic char marks and intense, even heat across the full 450mm grate surface for consistent cooking results during busy service periods.
• Inclined grate position with flare-reducing fin design channels dripping grease away from the flame and into a front collection trough, reducing flare-ups and improving food quality.
• Full pilot ignition and flame failure protection on the burner enhances operator safety and complies with commercial gas appliance requirements.
• Reversible heavy-duty cast iron grates extend service life and allow operators to switch between grate profiles to suit different menu items.
• Lift-out radiants, burners and grease tray baffles make cleaning fast and thorough, reducing downtime between services.
• Variable high-low temperature control per burner gives chefs precise heat management for a wide range of proteins and vegetables.
• Cabinet base provides enclosed underbench storage directly beneath the cooking surface, maximising kitchen workspace efficiency.
• Heavy-duty, heat-resistant reinforced control knobs withstand the rigours of continuous commercial use and remain easy to operate even with wet or greasy hands.
• Accepts both natural gas and LPG connections via a 3/4 inch BSP male fitting, offering flexible installation across varied commercial kitchen setups.

Key Features

• 450mm wide gas chargrill on enclosed cabinet base with hinged door
• 48MJ/hr output via stainless steel U-burner (13.3kW)
• Single burner with variable high-low control
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design and integral grooves to direct grease into front collection channel
• Full pilot ignition and flame failure protection per burner
• Fully lift-out radiants, burners and grease tray baffles for easy cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Stainless steel splashback included
• 304 stainless steel construction
• Compatible with natural gas and LPG; 3/4 inch BSP male gas connection
• No undershelf
• Manufactured in New Zealand
• 24-month warranty (parts and labour)

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 48
• Shipping Weight: 139
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 13.3 kW
• Temperature Control: Variable High-Low
