Overview

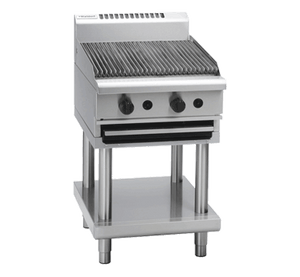

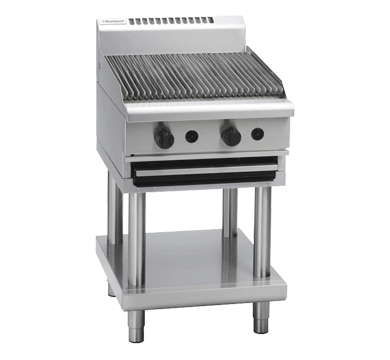

Waldorf CH8600G-B 800 Series 600mm Gas Chargrill – Bench Model

The Waldorf CH8600G-B is a 600mm bench model gas chargrill from the Waldorf 800 Series, engineered for demanding commercial kitchen environments. Powered by two 304 stainless steel U-burners delivering a combined 66 MJ/hr, the unit drives intense, even heat across heavy-duty cast iron grates all the way to the cooking surface edges, producing authentic char marks on meats, seafood and vegetables with consistent results during high-volume service.

The chargrill's inclined cooking configuration incorporates a grate fin design that actively reduces flare-ups and channels grease toward a front collection point, keeping cooking controlled and cleaner throughout the shift. Flame failure protection with a continuous pilot burner adds an important safety layer, while lift-out grates, radiants and baffles make end-of-service cleaning straightforward. Built in New Zealand from 304 stainless steel and backed by a 24-month warranty, the CH8600G-B suits bench-top installation across restaurants, hotels, clubs and catering operations.

Key Benefits

• Consistent, high-intensity heat across the full cooking surface delivers reliable char marks and thorough searing for meats, seafood and vegetables service after service.
• Inclined grate configuration with fin design channels grease away from direct flame, significantly reducing flare-ups for safer and cleaner grilling.
• Flame failure protection with a continuous pilot burner automatically cuts gas in the event of flame loss, providing a critical safety safeguard in busy kitchens.
• Reversible heavy-duty cast iron top grates extend the working life of the cooking surface and offer flexibility to choose the optimal grate profile for different menu items.
• Lift-out grates, radiants and baffles allow thorough, efficient cleaning without tools, reducing downtime between shifts.
• Heavy-duty reinforced control knobs withstand the rigours of constant commercial use and provide reliable variable high-low temperature adjustment for precise heat management.
• Compatible with both natural gas and LPG supplies, giving operators flexibility across different site configurations.
• Compact 600mm bench model footprint integrates easily into existing cook lines or standalone bench setups without requiring a dedicated floor stand.

Key Features

• 800 Series 600mm gas chargrill in bench model configuration
• Two 304 stainless steel U-burners, each rated at 33 MJ/hr, totalling 66 MJ/hr (18.3 kW) combined output
• Heavy-duty reversible cast iron top grates for flexible grilling surface options
• Inclined cooking position with grate fin design minimises flare-ups and directs grease to a front collection channel
• Flame failure protection system with continuous pilot burner for operational safety
• Lift-out grates, radiants and baffles for tool-free removal and thorough cleaning
• Heavy-duty reinforced control knobs for durable, reliable variable high-low temperature control
• Constructed from 304 stainless steel throughout
• Integrated splashback included; no undershelf
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 630
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Shipping Weight: 171
• Packed Width (mm): 645.0
• Packed Height (mm): 855.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.479783000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
