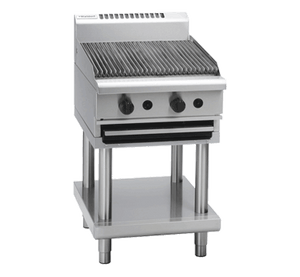

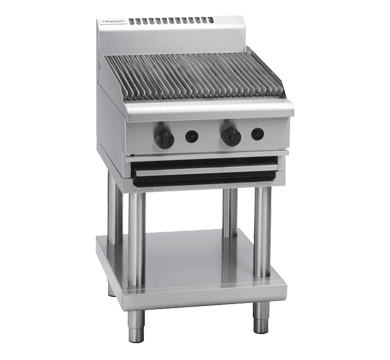

Waldorf CH8600G-LS 800 Series 600mm Gas Chargrill with Leg Stand

The Waldorf CH8600G-LS is a 600mm wide gas chargrill from the 800 Series, mounted on a leg stand for freestanding use in professional commercial kitchens. At its heart are two 304 stainless steel U-burners delivering a combined output of 66 MJ/hr, paired with reversible heavy-duty cast iron grates and radiant elements that distribute intense heat evenly across the entire cooking surface for consistent, authentic char results on meats, seafood and vegetables.

Engineered for ease of use and thorough cleaning, the unit features an inclined grate position that minimises flare-ups and directs grease into a front collection channel, while all grates, radiants and baffles simply lift out for quick servicing. Flame failure protection with a continuous pilot burner adds an important layer of operational safety, and heavy-duty reinforced control knobs ensure reliable, long-term performance under the demands of a busy commercial kitchen. Manufactured in New Zealand from 304 stainless steel and backed by a 24-month parts and labour warranty.

Key Benefits

• Even, high-intensity heat across the full cooking surface delivers consistent char marks and thorough searing on every service.
• Inclined grate position reduces flare-ups and channels grease away efficiently, improving cooking precision and reducing the risk of flare-related incidents.
• Reversible cast iron grates extend usable life and provide flexible cooking surface options without additional equipment.
• Lift-out grates, radiants and baffles make end-of-service cleaning straightforward, reducing labour time and maintaining hygiene standards.
• Flame failure protection with a continuous pilot burner enhances kitchen safety by automatically cutting gas flow if the flame is extinguished.
• Compatible with both natural gas and LPG, giving operators flexibility across different site requirements.
• Heavy-duty reinforced control knobs withstand the rigours of constant daily use in high-volume commercial environments.
• Leg stand configuration allows freestanding placement and provides convenient undershelf storage for added workspace utility.
• 24-month parts and labour warranty and New Zealand construction provide confidence in long-term reliability and service support.

Key Features

• 600mm wide gas chargrill on leg stand configuration
• Two 304 stainless steel U-burners, each rated at 33 MJ/hr, for a total output of 66 MJ/hr (18.3 kW)
• Reversible heavy-duty cast iron top grates for flexible cooking surface use
• Grate fins with an inclined position to reduce flare and direct grease into a front collection channel
• Flame failure protection with continuous pilot burner for safe operation
• Lift-out grates, radiants and baffles for thorough and efficient cleaning
• Heavy-duty reinforced control knobs for durable, precise temperature adjustment
• Variable high-low temperature control on each burner zone
• 304 stainless steel construction throughout
• Integrated splashback included
• Undershelf included for additional storage
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Dimensions: 600mm wide x 805mm deep x 1130mm high
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Shipping Weight: 171
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
