Overview

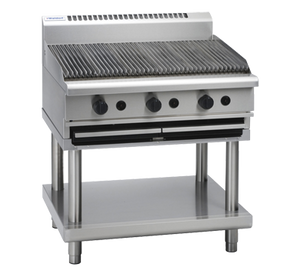

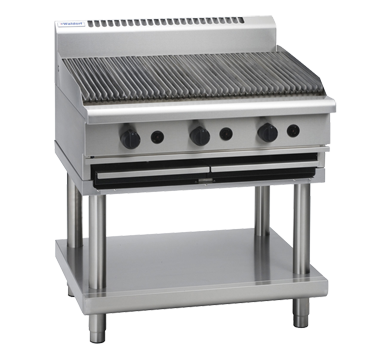

Waldorf CH8900G-LS 800 Series 900mm Gas Chargrill with Leg Stand

The Waldorf CH8900G-LS is a 900mm wide gas chargrill from the 800 Series, mounted on a leg stand and built for demanding commercial kitchen environments. Three 304 stainless steel U-burners deliver a combined output of 100 MJ/h (33 MJ/h each), channelling intense, even heat through heavy-duty cast iron grates and radiant elements to produce authentic char marks on meats and vegetables alike. Manufactured in New Zealand from 304 stainless steel and backed by a 24-month warranty, this unit is engineered to handle continuous high-volume service.

The chargrill's inclined configuration is a standout design feature, using a grate fin arrangement that actively minimises flare-ups while directing grease through strategically placed grooves into a front collection channel. This not only improves cooking performance but significantly simplifies day-to-day maintenance. Flame failure protection with a continuous pilot burner provides an added layer of operational safety, and the entire assembly is designed for straightforward cleaning, installation and servicing.

Key Benefits

• Consistent, high-intensity heat across the full 900mm cooking surface ensures even char marks and thorough searing on every service.
• Inclined grate design with fin profile reduces flare-ups during cooking, improving safety and producing cleaner results when handling fatty proteins.
• Front grease collection channel captures run-off efficiently, reducing mess and lowering the risk of flare-related incidents during a busy service.
• Flame failure protection with a continuous pilot burner automatically cuts gas flow if the flame is extinguished, protecting staff and complying with commercial safety requirements.
• Reversible heavy-duty cast iron grates offer flexibility to adapt the cooking surface to different menu items or to extend grate life by flipping when one side wears.
• Lift-out grates, radiants and baffles make end-of-service cleaning faster and more thorough, reducing labour time and maintaining hygiene standards.
• Heavy-duty reinforced control knobs withstand the rigours of a busy kitchen and provide precise variable high-low temperature adjustment for each burner zone.
• Leg stand configuration elevates the cooking surface to a comfortable working height and provides clear floor space underneath, aiding compliance with kitchen cleaning routines.
• Compatible with both natural gas and LPG via a 3/4 inch BSP male connection, offering flexibility across different kitchen fit-outs and venues.

Key Features

• 900mm wide gas chargrill on a leg stand, part of the Waldorf 800 Series
• Three 304 stainless steel U-burners rated at 33 MJ/h each, totalling 100 MJ/h (27.8 kW)
• Reversible heavy-duty cast iron top grates for versatile cooking surface use
• Inclined cooking surface with grate fin design to minimise flare-ups and promote grease run-off
• Front grease collection channel with grooves to direct run-off away from the cooking zone
• Flame failure protection with continuous pilot burner for operational safety
• Lift-out grates, radiants and baffles for thorough and efficient cleaning
• Heavy-duty reinforced control knobs with variable high-low temperature control per burner
• 304 stainless steel construction throughout
• Splashback and undershelf included
• Compatible with natural gas and LPG; 3/4 inch BSP male gas connection
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 100
• Shipping Weight: 232
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron Grates
• Power Rating: 27.8 kW
• Temperature Control: Variable High-Low
