Overview

Waldorf Bold CHB8120G-B 1200mm Gas Chargrill – Bench Model

The Waldorf Bold CHB8120G-B is a 1200mm wide gas chargrill bench model designed for high-volume commercial kitchen use. Powered by four 304 stainless steel U-burners each rated at 33 MJ/hr, it delivers a combined output of 133 MJ/hr across a cast iron grate surface, producing authentic char marks on meats, seafood and vegetables with consistent, intense heat.

Engineered and manufactured in New Zealand, this unit is built with everyday serviceability in mind. Lift-out grates, radiants and baffles simplify cleaning, while the inclined cooking surface reduces flare-ups and channels grease away efficiently. The default finish is black with additional colour options available, making it a practical fit for both concealed and open kitchen environments.

Key Benefits

• Four high-output U-burners deliver 133 MJ/hr total heat, enabling fast, consistent chargrilling even during peak service periods.
• Reversible heavy-duty cast iron grates extend the usable life of the cooking surface and allow different sear patterns to suit varying menu requirements.
• Inclined cooking position reduces flare-ups and directs grease runoff away from the burners, improving safety and reducing the need for mid-service cleaning.
• Flame failure protection with a continuous pilot burner provides an added layer of safety by automatically cutting gas supply if a flame is extinguished.
• Lift-out grates, radiants and baffles make thorough cleaning straightforward, reducing labour time and supporting food safety compliance.
• Heavy-duty reinforced control knobs withstand the rigours of daily commercial use and provide precise variable high-low temperature control.
• 304 stainless steel construction throughout ensures corrosion resistance and longevity in demanding kitchen environments.
• Compatible with both natural gas and LPG supplies via a 3/4 BSP male connection, offering installation flexibility across different sites.

Key Features

• 1200mm wide bench model configuration suitable for countertop installation
• Four 304 stainless steel U-burners, each rated at 33 MJ/hr, totalling 133 MJ/hr (36.9 kW)
• Reversible heavy-duty cast iron top grates for versatile searing options
• Inclined cooking surface designed to minimise flare and improve grease drainage
• Flame failure protection paired with a continuous pilot burner for safe operation
• Lift-out grates, radiants and baffles for quick and thorough cleaning access
• Heavy-duty reinforced control knobs for durability and precise temperature adjustment
• Variable high-low temperature control on each burner
• 304 stainless steel body construction
• Integrated splashback included
• Accepts natural gas or LPG; gas connection is R 3/4 (BSP) male
• Default colour is black; additional colour options are available to order
• Waldorf Bold range designation
• Manufactured in New Zealand

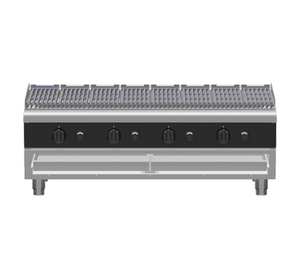

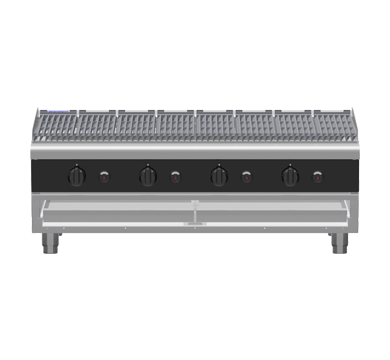

• Note: image may depict the CHLB8120G-B low-back variant of the same model

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 630
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 133
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron Grates
• Power Rating: 36.9 kW
• Temperature Control: Variable High-Low
