Overview

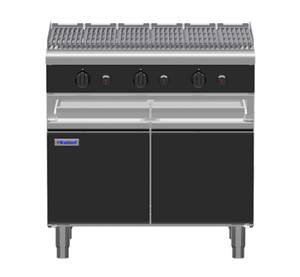

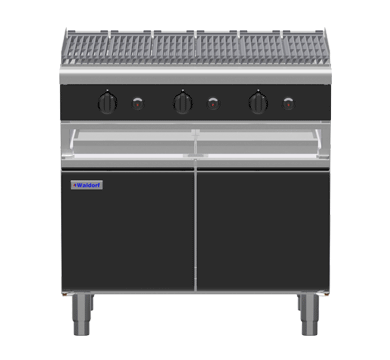

Waldorf Bold CHB8900G-CD 900mm Gas Chargrill with Cabinet Base

The Waldorf Bold CHB8900G-CD is a 900mm wide commercial gas chargrill mounted on a cabinet base, purpose-built for high-volume kitchens demanding authentic char-grilled results. Three stainless steel burners deliver a combined output of 100MJ/h (27.8kW), providing consistent, intense heat across the full cooking surface, while the inclined grate position and flare-reducing fin design channel grease forward into a front collection trough, keeping flare-ups in check during busy service periods.

Constructed from 304 stainless steel with a default black colour finish and additional colour options available, this unit is engineered for both performance and practicality. Reversible heavy-duty cast iron top grates, lift-out radiants, burners and grease tray baffles make cleaning and routine servicing straightforward, while full pilot and flame failure protection on every burner ensures safe operation. Compatible with both natural gas and LPG via a 3/4" BSP male connection, the CHB8900G-CD suits a wide range of Australian commercial kitchen installations.

Key Benefits

• Delivers authentic char marks and high radiant heat across a 900mm cooking surface, ideal for chargrilling meats and vegetables at volume.
• Inclined grate position with flare-reducing fin design directs grease into a front collection channel, significantly reducing flare-ups and improving cook consistency.
• Full pilot and flame failure protection on each individual burner enhances operational safety and meets commercial kitchen requirements.
• Reversible heavy-duty cast iron grates extend grate life and provide flexible cooking surface options without additional parts.
• Lift-out radiants, burners and grease tray baffles make deep cleaning fast and efficient, reducing kitchen downtime between services.
• Heavy-duty, heat-resistant reinforced control knobs withstand the rigours of a busy commercial environment and remain easy to operate.
• Dual fuel compatibility (natural gas and LPG) provides installation flexibility across a variety of commercial kitchen setups.
• Variable high-low temperature control per burner allows chefs to manage different proteins and cooking stages simultaneously across the one unit.
• Cabinet base configuration provides enclosed under-unit storage, making efficient use of kitchen floor space.

Key Features

• 900mm wide gas chargrill on enclosed cabinet base
• 3 x 33MJ/h stainless steel burners, totalling 100MJ/h (27.8kW) combined output
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing grate fin design and grooves channelling grease to a front collection trough
• Full pilot and flame failure protection provided per individual burner
• Lift-out radiants, burners and grease tray baffles for simplified cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• 304 stainless steel construction
• Integrated splashback included
• Default finish is black; additional colour options available
• Compatible with natural gas and LPG; 3/4" BSP male gas connection
• Part of the Waldorf Bold range
• Manufactured in New Zealand
• Note: product images may show CHLB8900G-CD, the low back version of the same model

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 100
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron Grates
• Power Rating: 27.8 kW
• Temperature Control: Variable High-Low
