Overview

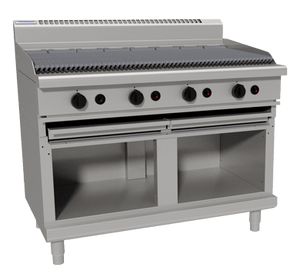

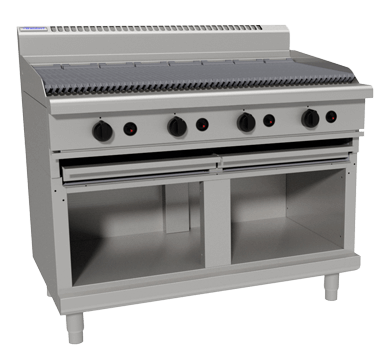

Waldorf CHL8120G-CB 800 Series 1200mm Gas Chargrill Low Back Version Cabinet Base

The Waldorf CHL8120G-CB is a 1200mm wide gas chargrill from the renowned 800 Series, mounted on a cabinet base and engineered for the demands of high-volume commercial kitchens. Powered by four stainless steel burners delivering a combined output of 133MJ/h (36.9kW), it produces consistent, intense heat across the entire grilling surface, delivering authentic char marks on meats, seafood and vegetables service after service.

Constructed from 304 stainless steel and designed and manufactured in New Zealand, this unit brings together practical serviceability with genuine cooking performance. The inclined grate design, integrated grease collection, and fully lift-out components make cleaning straightforward, while features like full pilot and flame failure protection per burner ensure safe, reliable operation in busy kitchen environments.

Key Benefits

• Four independently controlled burners allow precise heat zoning, so different proteins and vegetables can be cooked simultaneously at the right temperature.
• The inclined grate position with flare-reducing fin design channels grease away from the flame and into a front collection channel, minimising flare-ups and improving food quality.
• Full pilot and flame failure protection on every burner provides an important safety safeguard in fast-paced kitchen environments.
• Reversible heavy-duty cast iron top grates extend the working life of the cooking surface and give chefs flexibility in grate profile.
• Lift-out radiants, burners and grease tray baffles make routine cleaning and maintenance quick, reducing downtime between services.
• The cabinet base provides enclosed under-counter storage, making efficient use of valuable kitchen floor space.
• Heavy-duty, heat-resistant reinforced control knobs withstand the rigours of constant commercial use and remain comfortable to operate even at high temperatures.
• Compatible with both natural gas and LPG via a 3/4" BSP male connection, offering installation flexibility across different sites.

Key Features

• 1200mm wide gas chargrill on an enclosed cabinet base
• 4 x 33MJ/h stainless steel burners, combined output 133MJ/h (36.9kW)
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design and grooves to direct grease into a front collection channel
• Full pilot and flame failure protection on each individual burner
• Lift-out radiants, burners and grease tray baffles for easy cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• Cabinet door base with no undershelf
• Integrated splashback (low back version)
• 304 stainless steel construction throughout
• Gas connection: R 3/4" (BSP) male; compatible with natural gas and LPG
• Designed and manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 133
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron Grates
• Power Rating: 36.9 kW
• Temperature Control: Variable High-Low
