Overview

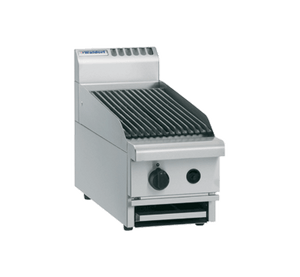

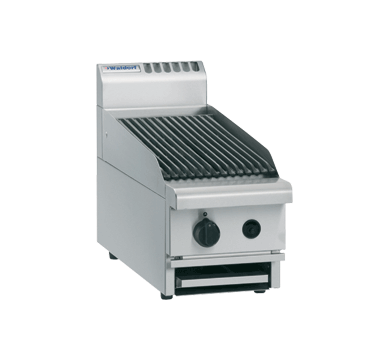

Waldorf CHL8300G-B 800 Series 300mm Gas Chargrill Low Back Version Bench Model

The Waldorf CHL8300G-B is a compact 300mm bench-mount gas chargrill from the Waldorf 800 Series, engineered for professional kitchens that demand authentic char-grilled results in a tight footprint. Constructed from 304 stainless steel and powered by a 33 MJ/hr U-burner delivering 9.2 kW, it accepts both natural gas and LPG, making it versatile across a wide range of commercial venues.

Designed with the operator in mind, the CHL8300G-B features reversible heavy-duty cast iron grates set at an inclined angle to minimise flare-ups and channel grease away efficiently. Flame failure protection with a continuous pilot burner adds a layer of safety, while lift-out grates, radiants and baffles make cleaning and servicing straightforward. Manufactured in New Zealand and backed by a 24-month warranty, this chargrill is built to handle sustained high-volume cooking.

Key Benefits

• Inclined grate position reduces flare-ups and directs grease runoff away from the heat source, keeping cooking consistent and safer.
• Reversible cast iron grates offer two cooking surfaces in one, extending the usable life of the grates and providing flexibility for different menu items.
• Flame failure protection with a continuous pilot burner automatically cuts gas if the flame extinguishes, protecting staff and equipment.
• Lift-out grates, radiants and baffles allow thorough cleaning quickly, reducing kitchen downtime between services.
• Heavy-duty reinforced control knobs withstand the rigours of a busy commercial kitchen and provide precise variable high-low temperature control.
• Compact 300mm width fits into tight bench spaces without sacrificing genuine char-grilling performance.
• Compatibility with both natural gas and LPG gives operators flexibility when installing across different sites or venues.

Key Features

• Waldorf 800 Series bench-mount gas chargrill in a 300mm wide configuration with low back version
• 33 MJ/hr 304 stainless steel U-burner rated at 9.2 kW
• Reversible heavy-duty cast iron top grates
• Grates set at an inclined angle to reduce flare and promote grease drainage
• Flame failure protection with continuous pilot burner for operator safety
• Lift-out grates, radiants and baffles for easy access cleaning and servicing
• Heavy-duty reinforced control knobs for durability and precise variable high-low temperature control
• 304 stainless steel construction throughout
• R 3/4 (BSP) male gas connection compatible with natural gas and LPG
• Integrated splashback included; no undershelf
• Packed weight 86 kg; unit volume 0.2 m³
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 300
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 33
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 9.2 kW
• Temperature Control: Variable High-Low
