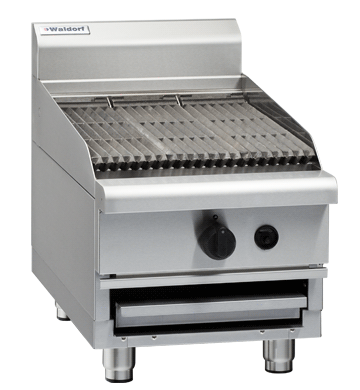

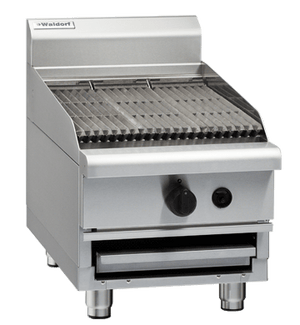

Waldorf CHL8450G-B 800 Series 450mm Gas Chargrill Bench Model with Low Back

The Waldorf CHL8450G-B is a bench-mounted gas chargrill from the 800 Series, measuring 450mm in width and constructed entirely from 304 stainless steel for long-term durability in high-demand commercial kitchen environments. Engineered in New Zealand, it is powered by a single stainless steel burner rated at 48MJ/hr (13.3kW) and accepts both natural gas and LPG via an R 3/4 (BSP) male gas connection, delivering consistent, high-intensity radiant heat across a reversible heavy-duty cast iron grate surface for authentic char marks on meats, seafood and vegetables.

The CHL8450G-B is designed with an inclined grate featuring flare-reducing fin profiles and grooves that direct grease forward into a front collection trough, keeping flare-ups and smoke to a minimum during service. Each burner is equipped with complete pilot ignition and automatic gas shut-off should the flame be extinguished, while removable radiants, burner assemblies and grease tray baffles allow quick access for routine cleaning and servicing. Variable high-low temperature control, heavy-duty heat-resistant reinforced control knobs and a low back (splashback) configuration round out a unit built for safe, practical, high-volume cooking. No undershelf is included, and the unit carries a 24-month warranty.

Key Benefits

• Delivers defined char marks and intense radiant heat for professional-quality grilled results across a wide range of proteins and vegetables.
• Inclined grate with flare-reducing fin profiles and channelling grooves directs grease into a front collection trough, minimising flare-ups and reducing smoke throughout service.
• Each burner incorporates complete pilot ignition and an automatic gas shut-off mechanism that activates whenever the flame is extinguished, providing an important safety layer.
• Reversible heavy-duty cast iron grates extend the working life of the cook surface and allow different grill profiles to suit varying menu requirements.
• Radiants, burner assemblies and grease tray baffles are all fully removable, making routine cleaning, servicing and maintenance fast and straightforward.
• Dual fuel compatibility with natural gas and LPG offers flexible installation across a variety of commercial kitchen setups.
• Variable high-low temperature control gives operators precise heat management throughout service.
• Compact 450mm footprint makes efficient use of bench space in kitchens where room is at a premium.

Key Features

• 450mm wide bench model configuration from the Waldorf 800 Series
• Single 48MJ/hr (13.3kW) stainless steel burner
• Compatible with both natural gas and LPG; R 3/4 (BSP) male gas connection
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design and grooves that channel grease into a front collection trough
• Complete pilot ignition and automatic gas shut-off on flame extinction, fitted to each burner
• Radiants, burner assemblies and grease tray baffles are fully removable for accessible servicing and cleaning
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control
• Low back (splashback) configuration
• Constructed from 304 stainless steel
• No undershelf included
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 630
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 48
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 13.3 kW
• Temperature Control: Variable High-Low
