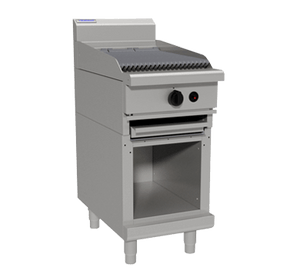

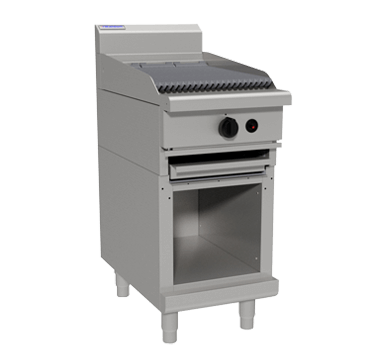

Waldorf CHL8450G-CB 800 Series 450mm Gas Chargrill Low Back Version Cabinet Base

The Waldorf CHL8450G-CB is a 450mm wide gas chargrill from the renowned 800 Series, mounted on a cabinet base for a self-contained, space-efficient cooking station. Constructed from 304 stainless steel and manufactured in New Zealand, it delivers 48MJ/hr of output through stainless steel burners, making it well suited to high-volume commercial kitchens that demand consistent chargrill results across service periods.

Designed with operator practicality in mind, the unit features reversible heavy-duty cast iron top grates, an inclined grate arrangement with a flare-reducing fin design, and a front grease collection channel to simplify cleaning. Full pilot and flame failure protection is provided per burner, while lift-out radiants, burners and grease tray baffles further streamline day-to-day maintenance and servicing.

Key Benefits

• Delivers authentic char marks and even high heat across the grill surface for consistent results on meats and vegetables.
• Inclined grate position channels grease forward into a dedicated collection trough, reducing flare-ups and keeping the cooking surface cleaner during service.
• Full pilot and flame failure protection per burner enhances operational safety, automatically cutting gas if a flame is lost.
• Reversible cast iron grates extend the working life of the cooking surface and offer flexibility for different menu applications.
• Lift-out radiants, burners and grease tray baffles make routine cleaning and periodic servicing fast and straightforward.
• Cabinet base provides enclosed under-counter storage, helping to maximise kitchen organisation and workflow efficiency.
• Compatible with both natural gas and LPG, giving flexibility for different kitchen infrastructure requirements.
• Heavy-duty, heat-resistant reinforced control knobs withstand the rigours of a busy commercial environment and remain easy to operate.

Key Features

• 450mm wide gas chargrill on a cabinet base with a low back configuration.
• 48MJ/hr (13.3 kW) output via stainless steel burners.
• Single burner with variable high-low temperature control.
• Reversible heavy-duty cast iron top grates.
• Inclined grate position with flare-reducing fin design and grooves that direct grease into a front collection channel.
• Full pilot and flame failure protection provided per burner.
• Lift-out radiants, burners and grease tray baffles for ease of cleaning and servicing.
• Heavy-duty, heat-resistant reinforced control knobs.
• 304 stainless steel construction throughout.
• Integrated splashback included.
• Cabinet door base with no undershelf.
• Gas connection: R 3/4 (BSP) male, suitable for natural gas or LPG.
• Manufactured in New Zealand.
• 24-month warranty.

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 48
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 13.3 kW
• Temperature Control: Variable High-Low
