Overview

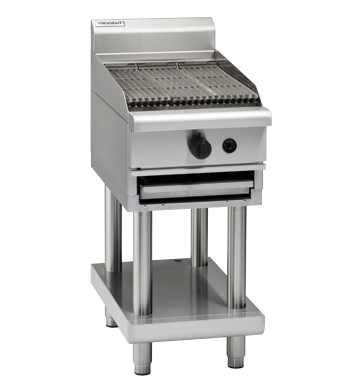

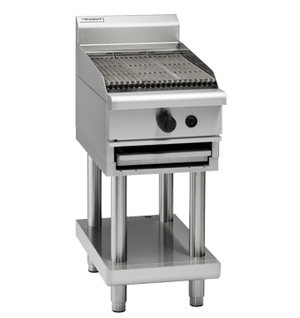

Waldorf CHL8450G-LS 800 Series 450mm Gas Chargrill Low Back Version with Leg Stand

The Waldorf CHL8450G-LS is a 450mm wide gas chargrill from the renowned 800 Series, designed for high-volume commercial kitchens that demand consistent, authentic char-grilled results. Manufactured in New Zealand from 304 stainless steel, it delivers 48MJ/hr (13.3kW) of output through a stainless steel burner, producing even, intense heat across the entire grill surface for perfectly charred meats, seafood and vegetables service after service.

Mounted on a leg stand with an undershelf for practical storage, this low back configuration suits kitchens where overhead clearance or sightlines matter. Thoughtful engineering details including reversible heavy-duty cast iron grates, a flare-reducing fin design and a front grease collection channel make it as easy to maintain as it is to cook on, while full pilot and flame failure protection per burner keeps operations safe and compliant.

Key Benefits

• Delivers 48MJ/hr of heat output for rapid, consistent char-grilling even during peak service periods
• Reversible cast iron grates extend usable life and allow different searing profiles to suit varying menu items
• Inclined grate design with fin profiles reduces flaring by channelling grease away from burners and into the front collection channel, improving food quality and reducing fire risk
• Full pilot and flame failure protection per burner enhances kitchen safety and meets commercial compliance requirements
• Lift-out radiants, burners and grease tray baffles allow thorough cleaning and straightforward servicing without specialist tools
• Variable high-low temperature control gives chefs precise heat management for different proteins and cooking techniques
• Compatible with both natural gas and LPG, offering flexibility across a wide range of venue types and gas supplies
• Leg stand with undershelf keeps the unit at an ergonomic working height while providing useful storage space beneath
• Heavy-duty, heat-resistant reinforced control knobs withstand the rigours of a busy commercial environment and remain easy to operate

Key Features

• 450mm wide 800 Series gas chargrill in low back configuration, mounted on a leg stand
• 48MJ/hr stainless steel burner with variable high-low heat control
• Reversible heavy-duty cast iron top grates
• Inclined grate positioning with flare-reducing fin design and integrated grooves directing grease to a front collection channel
• Full pilot and flame failure safety protection per burner
• Lift-out radiants, burners and grease tray baffles for easy access cleaning and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• 304 stainless steel construction throughout
• Accepts both natural gas and LPG (R 3/4 BSP male gas connection)
• Integrated undershelf for additional storage
• Splashback included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 48
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Cast Iron Grates
• Power Rating: 13.3 kW
• Temperature Control: Variable High-Low
