Overview

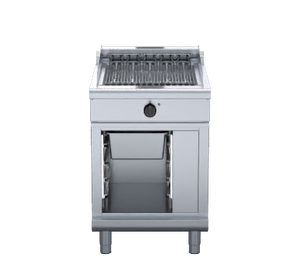

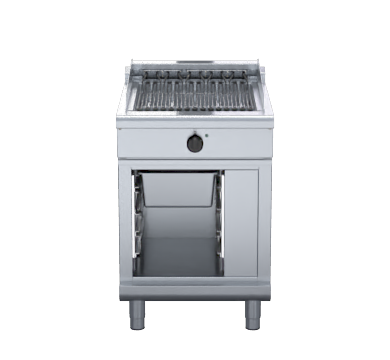

Waldorf CHL8600ED-CB 800 Series 600mm Electric Chargrill Cabinet Base

The Waldorf CHL8600ED-CB is a 600mm electric chargrill from the 800 Series, mounted on a fully enclosed cabinet base and purpose-built for high-volume commercial kitchen environments. Drawing 8.4kW of heating power, its direct contact cooking elements climb to 400°C and deliver fast, responsive heat across a generous 450mm x 590mm cooking surface, producing authentic char marks on meats, seafood and vegetables without any traditional cooking grates.

Built to a heavy-duty stainless steel finish and engineered around the fully modular Waldorf 800 Series platform, the unit is straightforward to clean, service and integrate alongside other suite equipment. Grease management during service is handled by a manual water-filled cooking well with drain, while a vitreous enamelled control panel, front-adjustable feet and rear rollers ensure practical everyday operation and effortless repositioning in busy kitchens.

Key Benefits

• Direct contact heating elements respond rapidly to temperature adjustments, helping operators maintain consistent cook quality throughout busy service periods.
• A maximum cooking temperature of 400°C delivers the intense, sustained heat required for proper char marks and caramelisation on proteins and vegetables.
• The grate-free cooking surface eliminates extra components that would otherwise require cleaning, allowing quicker turnaround between services.
• A manual water-filled cooking well fitted with an integrated drain captures dripping fats and juices, curbing flare-ups and streamlining post-service clean-up.
• Fully modular 800 Series construction means the unit can be added to or reconfigured within an existing Waldorf suite as kitchen needs evolve.
• Front levelling feet combined with dual rear rollers allow the unit to be easily levelled and repositioned without requiring additional equipment.
• An optional GN 1/1 four-position racking kit expands versatility for resting, holding or finishing dishes directly on the unit.

Key Features

• 600mm wide electric chargrill mounted on an enclosed cabinet base
• 8.4kW total heating power
• 450mm x 590mm cooking surface
• Direct contact cooking elements with rapid-response heat control reaching up to 400°C
• Grate-free cooking surface design
• Manual water-filled cooking well with integrated drain
• Vitreous enamelled control panel
• Four 63mm diameter heavy-duty stainless steel legs; front legs are height-adjustable and rear legs are fitted with rollers for easy repositioning
• Heavy-duty stainless steel finish throughout
• Fully modular design for straightforward cleaning and servicing
• Part of the Waldorf 800 Series modular suite
• Optional GN 1/1 four-position racking kit available

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
