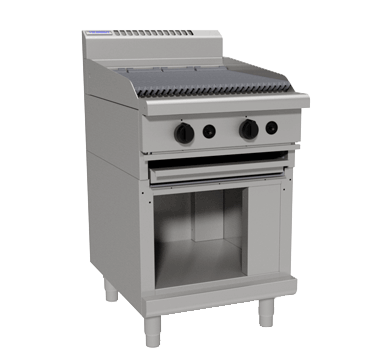

Waldorf CHL8600G-CB 800 Series 600mm Gas Chargrill Low Back Version Cabinet Base

The Waldorf CHL8600G-CB is a 600mm wide gas chargrill from the respected 800 Series, mounted on a fully enclosed cabinet base for a clean, self-contained cooking station. Constructed from 304 stainless steel and built in New Zealand, it delivers 66MJ/hr of total output across two independently controlled burners, making it well suited to high-volume commercial kitchens that demand consistent char-grilling results.

Thoughtful engineering runs throughout this unit, from the inclined reversible cast iron grates with a flare-reducing fin design that channels grease away from the flame, to fully lift-out radiants, burners and grease tray baffles that simplify daily cleaning and routine servicing. Full pilot and flame failure protection on each burner adds an important layer of operational safety, while heavy-duty heat-resistant control knobs withstand the rigours of a busy kitchen environment.

Key Benefits

• Authentic char marks and consistent high heat across the grill surface lift presentation and flavour for meats, seafood and vegetables.
• Independent variable high-low control per burner lets cooks manage different proteins simultaneously at their ideal temperatures.
• Flare-reducing grate fin design minimises flare-ups, reducing the risk of scorching and keeping flavour balanced.
• Integrated grease grooves channel fat forward into a front collection channel, keeping the cooking surface cleaner during service.
• Full pilot and flame failure protection on every burner provides safety compliance and peace of mind in a high-throughput environment.
• Lift-out radiants, burners and grease tray baffles make end-of-service cleaning fast and thorough, lowering labour time.
• Cabinet base provides enclosed storage directly beneath the cooking surface, maximising efficiency in compact kitchen layouts.
• Compatible with both natural gas and LPG supplies, giving flexibility across different site configurations.

Key Features

• 600mm wide 800 Series gas chargrill on enclosed cabinet base
• 2 x 33MJ/hr stainless steel burners, 66MJ/hr total output (18.3kW)
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design and integrated grease grooves directing runoff into a front collection channel
• Full pilot and flame failure protection per individual burner
• Fully lift-out radiants, burners and grease tray baffles for easy cleaning, installation and servicing
• Heavy-duty, heat-resistant reinforced control knobs
• Variable high-low temperature control per burner
• Cabinet door base with stainless steel construction throughout (304 grade)
• Low back splashback included
• Gas connection: R 3/4 (BSP) male
• Accepts natural gas or LPG
• Dimensions: 600mm W x 805mm D x 1130mm H
• Packed weight: 189kg
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
