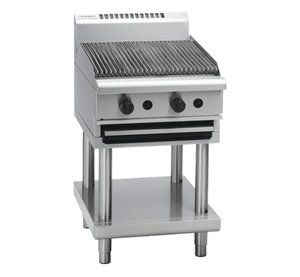

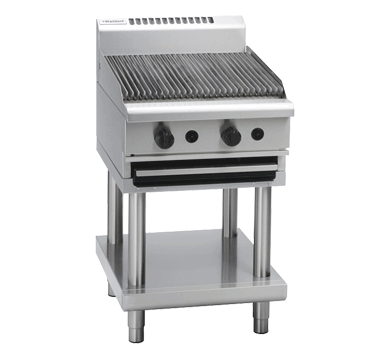

Waldorf CHL8600G-LS 800 Series 600mm Gas Chargrill – Low Back, Leg Stand Configuration

The Waldorf CHL8600G-LS is a 600mm wide commercial gas chargrill belonging to the heavy-duty 800 Series, built for freestanding installation on a leg stand in professional kitchen environments. Constructed throughout in 304 stainless steel and manufactured in New Zealand, this unit delivers a total output of 66 MJ/h via two independent 33 MJ/h U-burners, generating consistent, high-intensity heat capable of producing authentic char marks across meats, seafood and vegetables during high-volume service.

Engineered to meet the rigours of continuous commercial operation, the CHL8600G-LS features flame failure protection paired with a permanently lit pilot burner, along with fully removable grates, radiants and baffles that can all be taken out for thorough cleaning with minimal downtime. The inclined cast iron grates channel grease away from the cooking surface to reduce flare-ups, while compatibility with both natural gas and LPG makes this unit adaptable to a wide range of commercial kitchen installations.

Key Benefits

• Two independent 33 MJ/h U-burners deliver a combined 66 MJ/h of powerful, evenly distributed heat across the full 600mm cooking surface, supporting consistent char results throughout busy service periods.
• Cast iron grates positioned at an inclined angle direct grease away from heat sources efficiently, reducing flare-ups and contributing to a cleaner and safer cooking environment.
• An automatic gas cut-off activated by the flame failure protection system, working in conjunction with an always-on pilot burner, provides an essential safety layer during operation.
• Reversible heavy-duty cast iron top grates offer two usable cooking surfaces, extending the service life of the grilling area and providing flexibility to suit different grilling requirements.
• All cooking components including grates, radiants and baffles are fully extractable, making thorough cleaning between services straightforward and reducing overall kitchen downtime.
• Individual variable high-low temperature control on each burner gives chefs precise heat management for different proteins and cooking styles simultaneously.
• Reinforced heavy-duty control knobs are engineered to withstand the demands of continuous commercial use and resist damage in high-traffic kitchen conditions.
• Dual fuel compatibility with both natural gas and LPG via an R 3/4 (BSP) male gas connection allows flexible installation across a variety of commercial kitchen setups.
• The freestanding leg stand configuration provides a stable footprint, and the integrated undershelf offers additional space for storage or equipment placement.

Key Features

• 600mm wide gas chargrill, 800 Series, low back design mounted on a freestanding leg stand
• Two U-burners each rated at 33 MJ/h, totalling 66 MJ/h combined output
• U-burners and full construction in 304 stainless steel, with reversible heavy-duty cast iron top grates
• Grates set at an inclined angle to minimise flare and promote grease run-off
• Flame failure protection system incorporating a continuously burning pilot burner; all cooking components including grates, radiants and baffles are fully removable for cleaning
• Variable high-low temperature control per burner
• Heavy-duty reinforced control knobs for durability in commercial use
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Integrated undershelf
• Splashback included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 66
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Cast Iron Grates
• Power Rating: 18.3 kW
• Temperature Control: Variable High-Low
