Overview

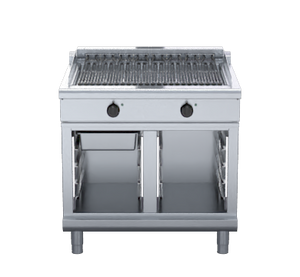

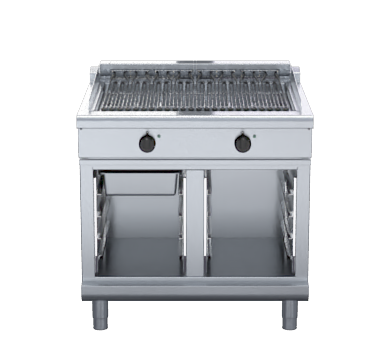

Waldorf CHL8900ED-CB 800 Series 900mm Electric Chargrill – Low Back, Cabinet Base

The Waldorf CHL8900ED-CB is a 900mm-wide electric chargrill from the 800 Series, built for high-volume commercial kitchens that require consistent and powerful performance. Delivering 13.4kW of heating power across a 730mm x 590mm cooking surface, it reaches temperatures up to 400°C via direct contact cooking elements, producing authentic char marks on meats, seafood and vegetables without the use of traditional cooking grates. The unit is mounted on a fully enclosed cabinet base and clad in heavy-duty stainless steel throughout, making it well suited to demanding kitchen environments.

Cleaning and servicing have been made as simple as possible: a manual water-filled cooking well with drain captures drippings and streamlines end-of-service clean-down, while the fully modular construction allows individual components to be accessed without removing the entire unit. The low back configuration is ideal for installations where ventilation clearance or visibility along the cook line matters. An optional GN 1/1 four-position racking kit is available as an accessory, and the unit forms part of the wider Waldorf 800 Series modular cooking suite.

Key Benefits

• Direct contact heating elements respond quickly to temperature adjustments, giving chefs precise control during busy service periods.
• Reaches up to 400°C to sear and char-mark proteins and vegetables with professional results.
• Grate-free cooking surface reduces cleaning time and eliminates the labour of scrubbing grate bars after service.
• The water-filled cooking well with integrated drain captures grease and drippings, making end-of-service clean-down fast and straightforward.
• 13.4kW output across the 730mm x 590mm cooking surface supports high-throughput production without hotspots.
• Front-mounted adjustable feet paired with dual rear rollers make levelling and repositioning on the kitchen floor quick and easy.
• Fully modular design allows individual components to be accessed and serviced without removing the entire unit.
• The low back profile improves sightlines across the cook line and provides greater flexibility for overhead ventilation installations.
• Optional GN 1/1 four-position racking kit expands cooking versatility for finishing, holding or multi-level grilling.

Key Features

• 900mm wide electric chargrill with integrated cabinet base, low back configuration
• 13.4kW total heating power
• 730mm x 590mm cooking surface area
• Direct contact cooking elements delivering fast heat response and precise temperature control
• Maximum cooking temperature of 400°C
• No cooking grates required
• Manual water-filled cooking well with drain for grease and dripping capture
• Vitreous enamelled control panel for durability and easy wiping
• Four 63mm diameter heavy-duty stainless steel legs: front pair fitted with height-adjustable feet, rear pair fitted with rollers for easy repositioning
• Heavy-duty stainless steel exterior finish throughout
• Fully modular construction for straightforward cleaning and servicing
• Optional GN 1/1 four-position racking kit available as an accessory
• Part of the Waldorf 800 Series modular cooking suite

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 229.0
