Overview

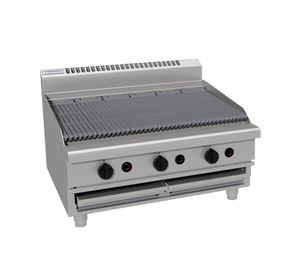

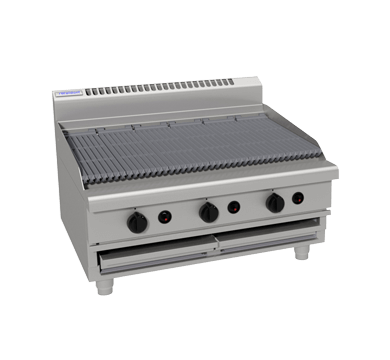

Waldorf CHL8900G-B 800 Series 900mm Gas Chargrill Low Back Version – Bench Model

The Waldorf CHL8900G-B is a 900mm wide bench-model gas chargrill from the 800 Series, engineered for high-volume commercial kitchens that demand consistent, authentic chargrilled results. Constructed from 304 stainless steel throughout, it features three 33 MJ/hr U-burners delivering a combined output of 100 MJ/hr (27.8 kW), providing powerful, even heat across the full grill surface for meats, seafood and vegetables alike.

Designed with practical day-to-day operation in mind, the CHL8900G-B incorporates flame failure protection with a continuous pilot burner for safe, reliable ignition, while its inclined grate position reduces flare-ups and channels grease away efficiently. All grates, radiants and baffles lift out for straightforward cleaning, and heavy-duty reinforced control knobs ensure durability under constant use. Compatible with both natural gas and LPG, it connects via a 3/4" BSP male fitting and is manufactured in New Zealand.

Key Benefits

• Three high-output U-burners deliver 100 MJ/hr of combined heat for rapid, consistent chargrilling across the entire 900mm surface
• Inclined grate position channels grease away from burners, minimising flare-ups and promoting even cooking
• Flame failure protection with continuous pilot burner enhances operational safety during busy service periods
• Reversible heavy-duty cast iron top grates extend usable life and allow different grill surface profiles
• Lift-out grates, radiants and baffles make end-of-service cleaning faster and more thorough
• Variable high-low temperature control on each burner gives chefs precise heat management across different menu items
• Heavy-duty reinforced control knobs withstand the rigours of a high-turnover commercial kitchen environment
• Dual gas compatibility (natural gas and LPG) provides flexibility for different venue setups and locations
• Full 304 stainless steel construction resists corrosion and simplifies surface cleaning and maintenance

Key Features

• 900mm wide bench-model configuration with low back version design
• Three 304 stainless steel U-burners, each rated at 33 MJ/hr, totalling 100 MJ/hr (27.8 kW)
• Reversible heavy-duty cast iron top grates
• Inclined grate and radiant position to reduce flare and improve grease drainage
• Flame failure protection with continuous pilot burner on each burner
• Lift-out grates, radiants and baffles for thorough and easy cleaning
• Heavy-duty reinforced control knobs for durability under constant use
• Variable high-low temperature control per burner
• Compatible with natural gas and LPG
• Gas connection: 3/4" BSP male fitting
• 304 stainless steel construction throughout
• Low back splashback included; no undershelf
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 470
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 100
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron Grates
• Power Rating: 27.8 kW
• Temperature Control: Variable High-Low
