Overview

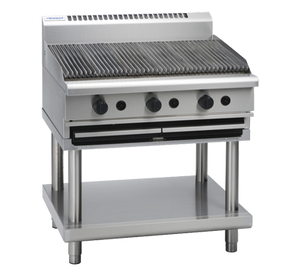

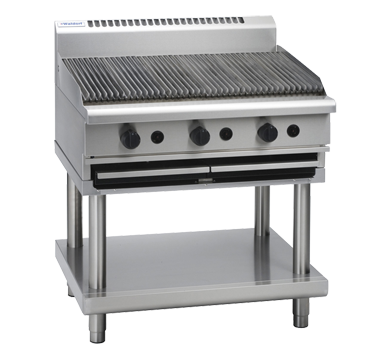

Waldorf CHL8900G-LS 800 Series 900mm Gas Chargrill Low Back Version – Leg Stand

The Waldorf CHL8900G-LS is a 900mm wide gas chargrill from the 800 Series, mounted on a leg stand and designed for high-volume commercial kitchen use. Three 304 stainless steel U-burners deliver a combined output of 99 MJ/hr (27.8 kW), providing even, intense heat across a cast iron grate surface capable of producing authentic char marks on meats, seafood and vegetables.

Constructed from 304 stainless steel and manufactured in New Zealand, this unit incorporates a range of practical design features that support safe operation, consistent cooking results and straightforward maintenance. The low back configuration integrates with Waldorf 800 Series suites, and the leg stand keeps the unit at a practical working height with an undershelf for additional storage.

Key Benefits

• Three independent burners with variable high-low control allow different cooking zones to be managed simultaneously, improving throughput during busy service periods.
• Flame failure protection with a continuous pilot burner provides an added layer of safety, automatically cutting gas flow if a flame is extinguished.
• The inclined cooking surface reduces flare-ups and channels grease away efficiently, helping to maintain consistent cooking temperatures and reducing the risk of burning.
• Reversible heavy-duty cast iron grates extend the usable life of the cooking surface and allow the grill profile to be changed depending on the product being cooked.
• Grates, radiants and baffles all lift out without tools, making routine cleaning faster and more thorough to support food safety compliance.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use and resist damage from heat and repeated handling.
• Natural gas and LPG compatibility via a standard R 3/4 BSP male connection makes installation straightforward across a variety of commercial kitchen configurations.
• An included undershelf and splashback add practical utility and help protect adjacent equipment and surfaces.

Key Features

• 900mm wide gas chargrill on leg stand – low back version for suite integration
• 3 x 33 MJ/hr 304 stainless steel U-burners, total output 99 MJ/hr (27.8 kW)
• Variable high-low temperature control per burner zone
• Flame failure protection with continuous pilot burner
• Reversible heavy-duty cast iron top grates
• Inclined cooking surface to minimise flare and promote grease drainage
• Lift-out grates, radiants and baffles for simplified cleaning and servicing
• Heavy-duty reinforced control knobs
• 304 stainless steel construction throughout
• Compatible with both natural gas and LPG; R 3/4 (BSP) male gas connection
• Undershelf included
• Splashback included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 100
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron Grates
• Power Rating: 27.8 kW
• Temperature Control: Variable High-Low
