Overview

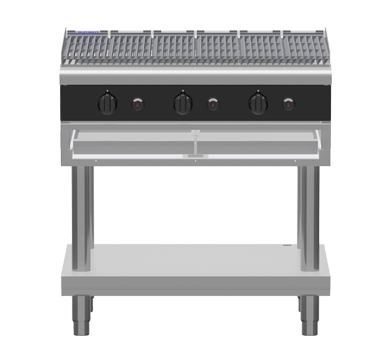

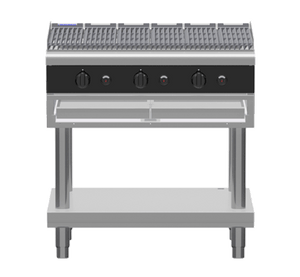

Waldorf Bold CHLB8900G-LS 900mm Gas Chargrill Low Back Version with Leg Stand

The Waldorf Bold CHLB8900G-LS is a 900mm wide commercial gas chargrill mounted on a leg stand, engineered for high-volume professional kitchens that demand consistent, intense grilling performance. Three 33 MJ/hr stainless steel U-burners deliver a combined 100 MJ/hr output across heavy-duty reversible cast iron grates, producing authentic char marks on meats, seafood and vegetables with every service.

Designed and built in New Zealand from 304 stainless steel, the Bold chargrill features an inclined grate position with a fin design that actively reduces flare-ups and channels grease into a front collection trough, keeping the cooking surface cleaner and safer during continuous use. Flame failure protection with a continuous pilot burner per burner zone adds an important safety layer, while lift-out grates, radiants, burners and grease tray baffles make end-of-service cleaning straightforward. The default colour is black, with additional colour options available to suit your kitchen fitout.

Key Benefits

• Three independently controlled burner zones allow precise heat management across the 900mm grill surface, letting cooks work different proteins and vegetables simultaneously at optimal temperatures.
• Inclined grate positioning with integrated flare-reducing fins channels fat away from the flame and into a front grease collection channel, minimising flare-ups and improving food quality during busy service.
• Reversible heavy-duty cast iron grates extend the working life of the cooking surface and offer flexibility in grill texture and char mark style.
• Full flame failure protection with a continuous pilot burner on each zone enhances kitchen safety by automatically cutting gas if a flame is extinguished.
• Lift-out grates, radiants, burners and grease tray baffles simplify deep cleaning, reducing labour time after service and supporting food safety compliance.
• Heavy-duty heat-resistant reinforced control knobs withstand the rigours of a commercial kitchen environment and provide reliable, accurate burner adjustment over long service life.
• Leg stand configuration provides a stable, self-contained installation without the need for a separate equipment base, simplifying kitchen layout planning.
• Compatible with both natural gas and LPG via a 3/4 inch BSP male connection, making the unit suitable for a wide range of commercial kitchen installations.

Key Features

• 900mm wide gas chargrill on integrated leg stand
• Three 33 MJ/hr 304 stainless steel U-burners totalling 100 MJ/hr (27.8 kW)
• Reversible heavy-duty cast iron top grates
• Inclined grate position with flare-reducing fin design and grooves to direct grease into front collection channel
• Full flame failure protection with continuous pilot burner per burner zone
• Lift-out grates, radiants, burners and grease tray baffles for thorough cleaning access
• Heavy-duty heat-resistant reinforced control knobs
• Variable high-low temperature control per burner zone
• 304 stainless steel construction throughout
• Integrated undershelf for additional storage or equipment placement
• Splashback included
• Compatible with natural gas and LPG; 3/4 inch BSP male gas connection
• Default colour black; additional colour options available
• Waldorf Bold range product, designed and manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 100
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Surface: Cast Iron Grates
• Power Rating: 27.8 kW
• Temperature Control: Variable High-Low
