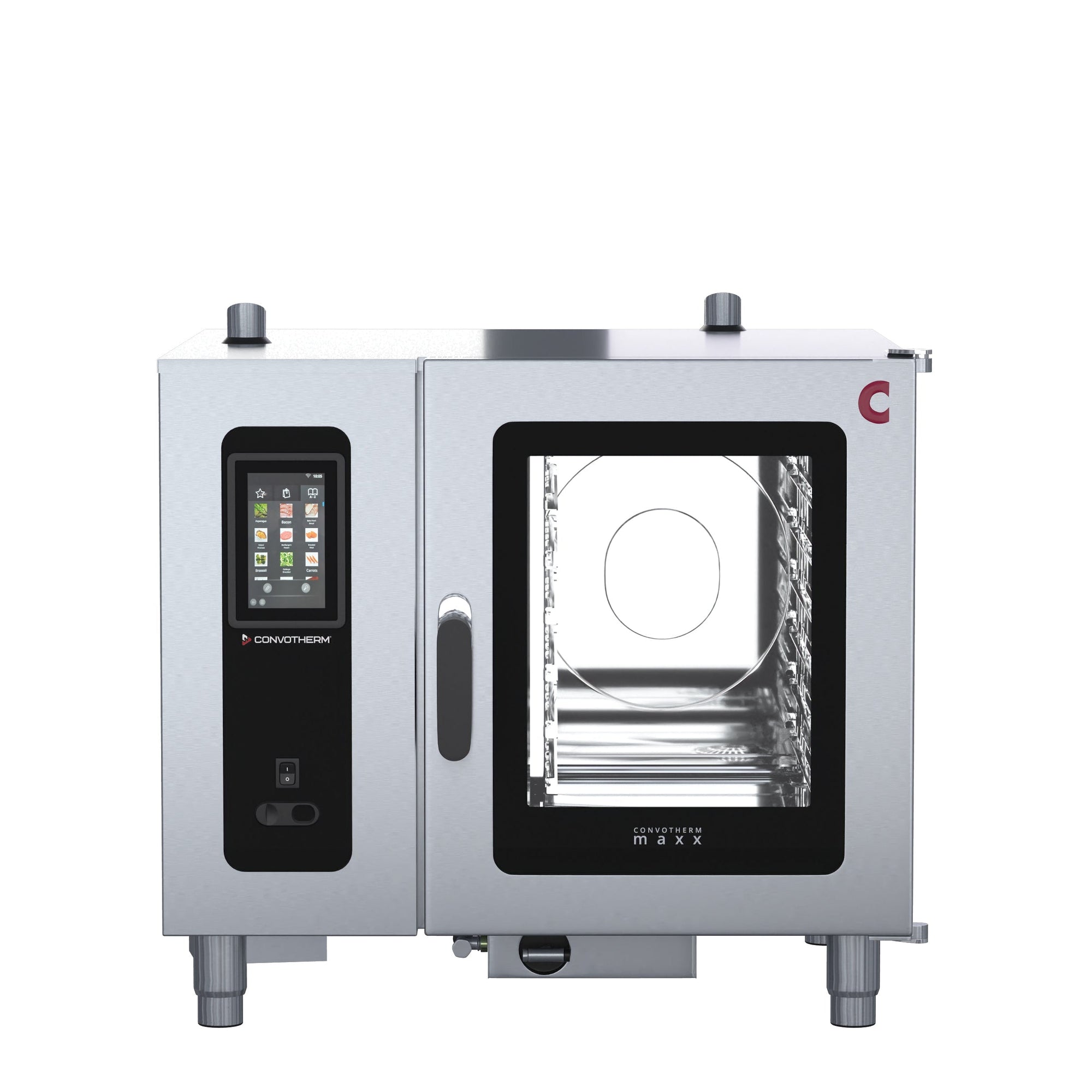

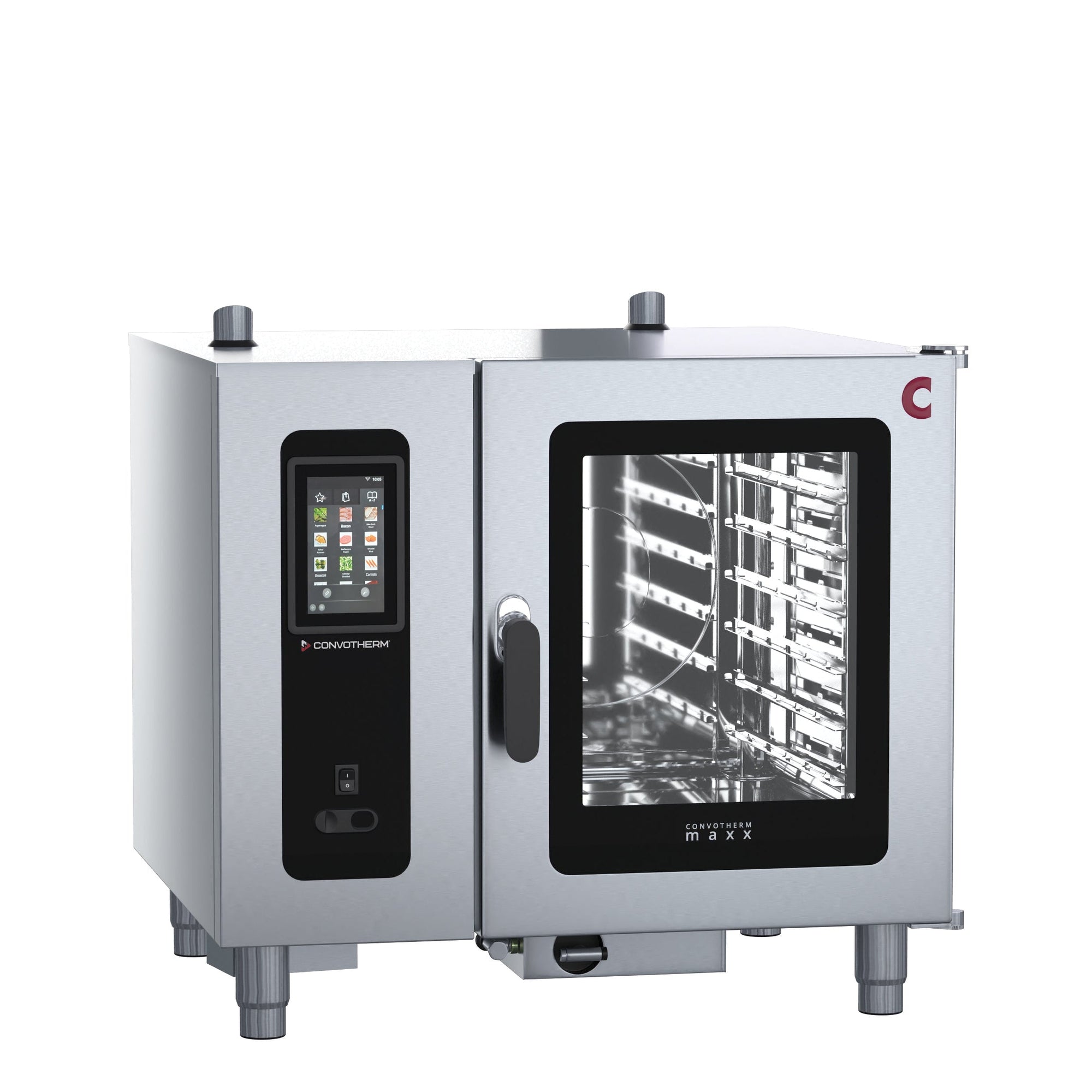

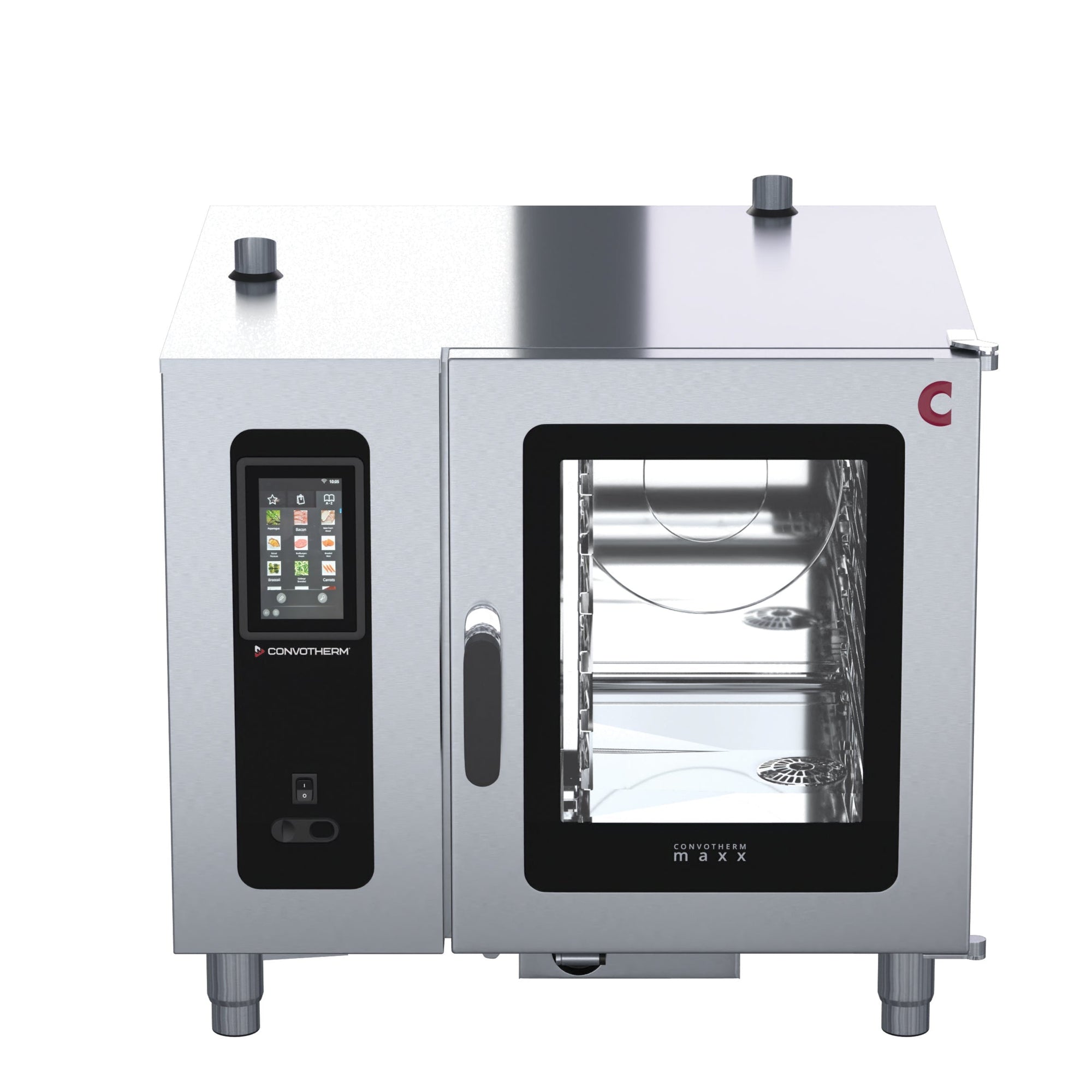

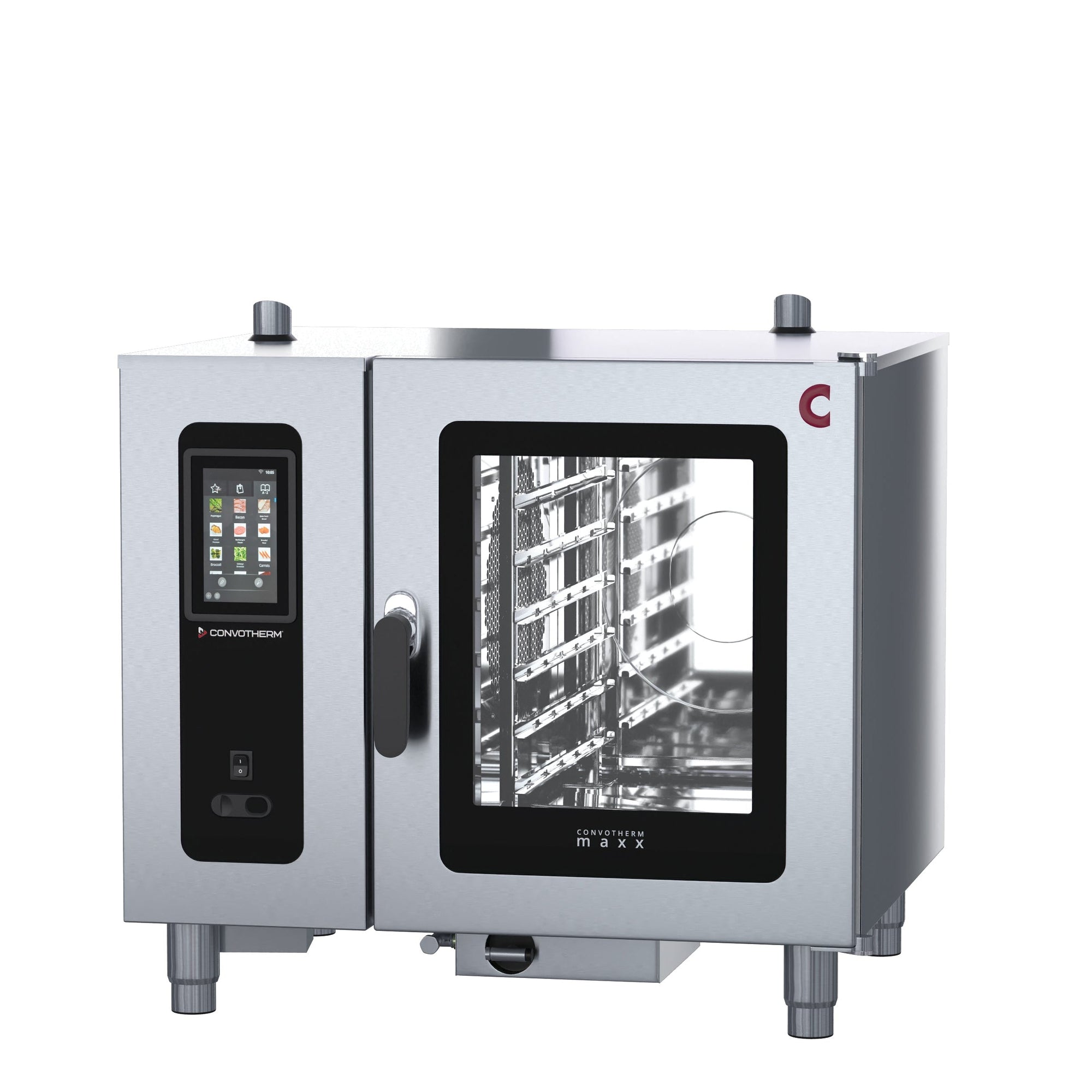

Convotherm CMAXX6.10 Electric Combi-Steamer Oven – 7 Tray Capacity

The Convotherm CMAXX6.10 is a direct steam combi-steamer oven accommodating seven full-size 1/1 GN trays, built for high-volume commercial kitchens. Manufactured in Germany from stainless steel, it supports the complete spectrum of cooking methods including steaming, combi-steaming, convection, baking, roasting, regeneration and low-temperature cooking, making it equally suited to restaurants, hotels, cafés, bakeries, hospitals, aged care facilities and catering operations. A 7-inch capacitive glass easyTouch touchscreen provides intuitive control across every service.

Convotherm's proprietary Crisp&Tasty moisture removal, HumidityPro humidity management and BakePro baking technology work alongside a 3-speed fan system and chamber-direct steam injection to deliver precise, consistent cooking results. Built-in WiFi, Ethernet and USB connectivity, together with the optional KitchenConnect cloud networking solution, keep the oven fully integrated with broader kitchen management systems whether the unit is benchtop-mounted or positioned on a stand.

Key Benefits

• Steam generated by injecting water directly into the cooking chamber produces rapid, pure steam saturation for fast, even heat transfer and reduced cook times.
• Crisp&Tasty, HumidityPro and BakePro settings give operators precise control over moisture levels, surface texture and browning across diverse menu items without the need to switch equipment.
• Up to 399 stored cooking profiles, each containing 20 programmable sequential steps, deliver repeatable results regardless of which staff member is operating the oven.
• The multi-point core temperature probe monitors internal food temperature accurately, removing guesswork and reducing the risk of under- or over-cooking.
• HACCP data storage supports food safety compliance and traceability requirements with minimal additional record-keeping burden.
• A fully automatic cleaning system offering four distinct programs – covering light soiling, heavy soiling, a rinse cycle and a quick express option – reduces manual labour and maintains consistent hygiene between services.
• Integrated WiFi, Ethernet (LAN) and USB connectivity, plus the optional KitchenConnect cloud-based networking solution, enable recipe updates, remote monitoring and appliance management from anywhere.
• Preheat and cool-down functions help kitchens manage workflow between services efficiently, reducing idle energy consumption and preparation delays.
• The sure-shut door handle and triple-glazed door improve operator safety and help maintain a stable internal cooking environment.

Key Features

• Combi-steamer oven with seven 1/1 GN tray positions, powered electrically with steam produced via direct chamber water injection
• 68 mm shelf spacing for optimal airflow around full-size gastronorm trays

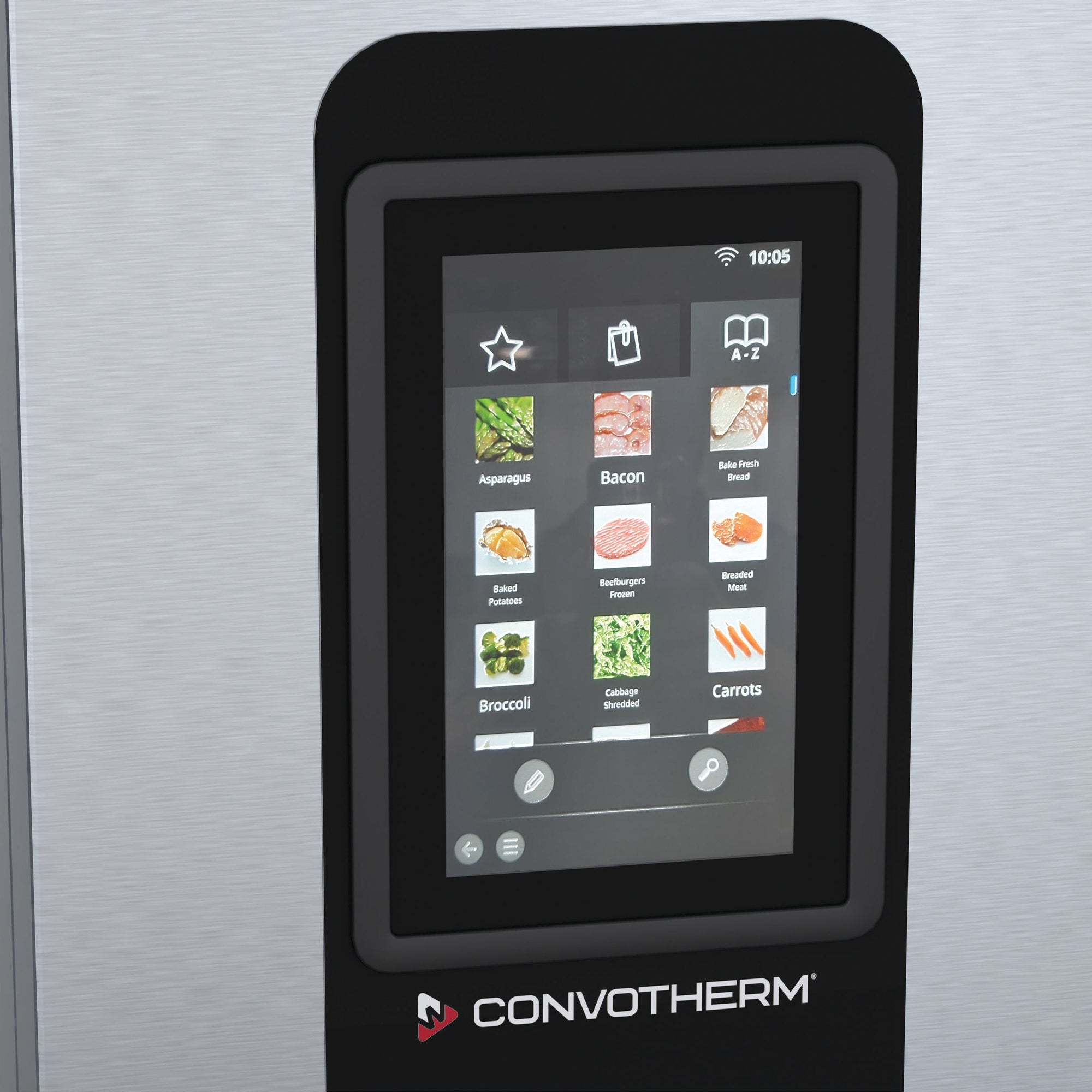

• easyTouch 7-inch capacitive glass full touchscreen control panel with image-guided interface
• Crisp&Tasty: 3 moisture removal settings for achieving crisp, dry surfaces
• HumidityPro: 3 humidity settings for precise climate control during cooking
• BakePro: 3 levels of traditional baking performance
• Controllable fan with 3 speed settings for tailored air circulation
• Supports steaming, combi-steaming, convection, roasting, baking, regeneration and low-temperature cooking
• 399 programmable cooking profiles, each containing up to 20 sequential steps
• Multi-point core temperature probe for accurate internal food temperature monitoring
• TrayTimer load management and start-time preset functionality
• HACCP data storage for food safety record-keeping and traceability
• Fully automatic cleaning system with four programs: light soil, heavy soil, rinse and express
• Triple-glazed right-hinged appliance door
• Door handle with sure-shut function to prevent accidental opening
• LED interior oven lighting
• Preheat and cool-down functions
• Built-in WiFi and Ethernet (LAN) interface
• USB port integrated into the control panel
• Stainless steel construction throughout
• Countertop or on-stand installation (benchtop mount)
• Manufactured in Germany
• Available accessories include: a retractable hand shower unit, a stainless steel stand with stacking kit, the KitchenConnect cloud-based real-time networking solution, and the ConvoVent 4 condensation hood incorporating grease and odour filtration

Specifications

• Width (mm): 875
• Depth (mm): 797
• Height (mm): 794
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Material: Stainless Steel
• No. of Shelves: 6
• Country of Origin: Germany
• Warranty (months): 24
• Installation Type: Countertop / On Stand
• Control Type: easyTouch (10" TFT touchscreen)
• Mounting Type: Benchtop
• Fuel Type: Electric
• Power Rating: 11.0 kW
• Power Supply: 400V 3N~ 16A
• Voltage/Phase: 400V 3N~ 16A
• Pan Count: 7
• Pan Size: 1/1 GN (530 x 325 mm)
