Overview

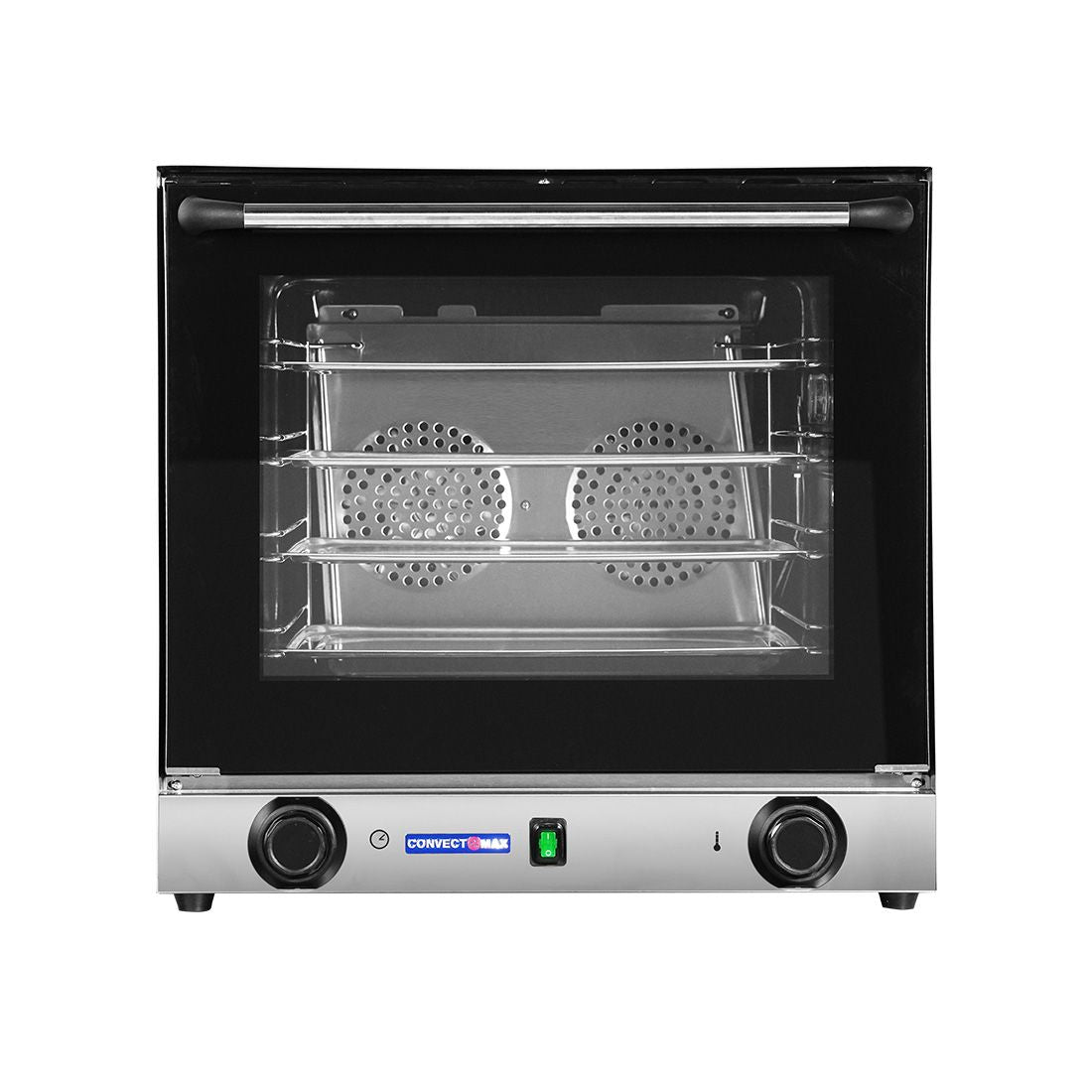

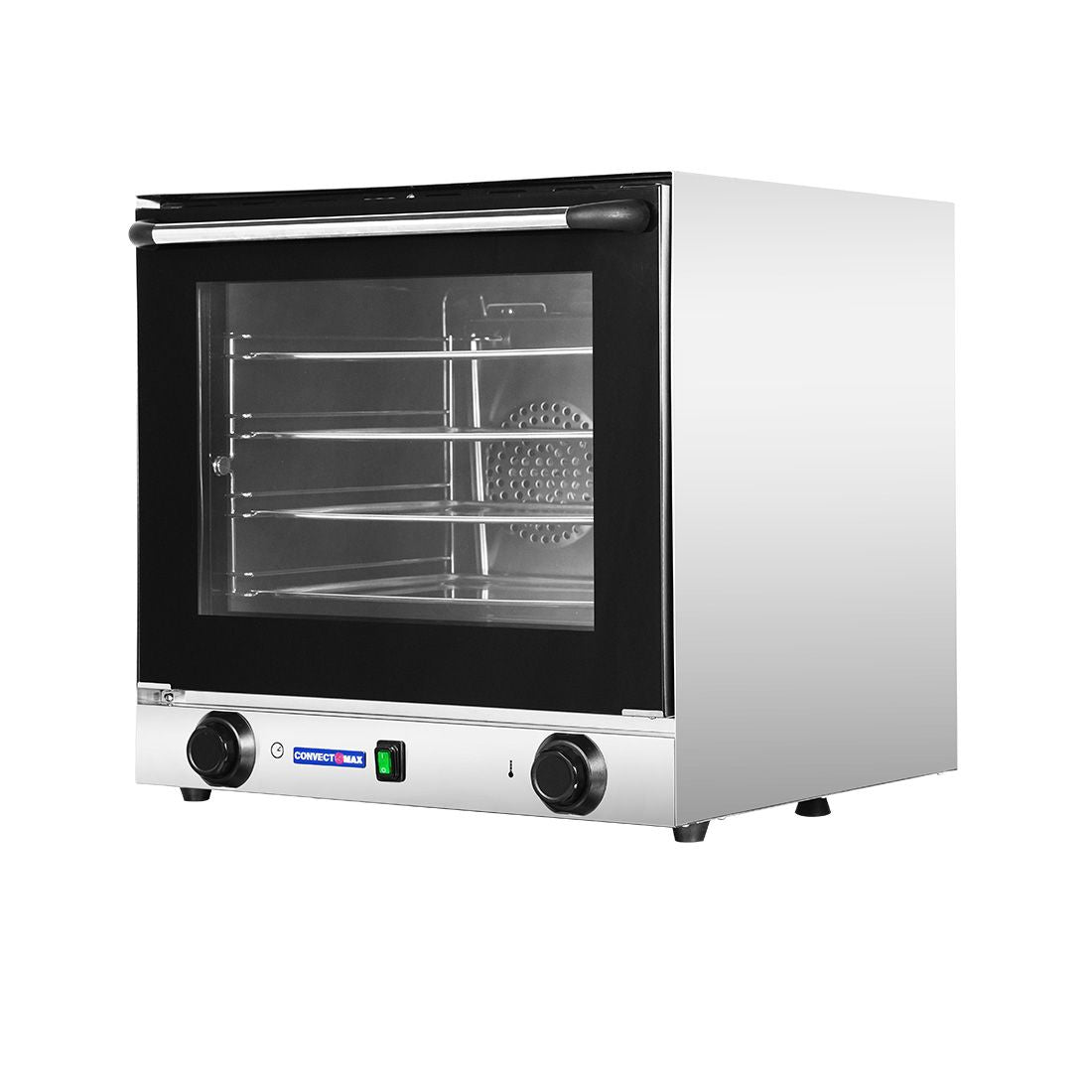

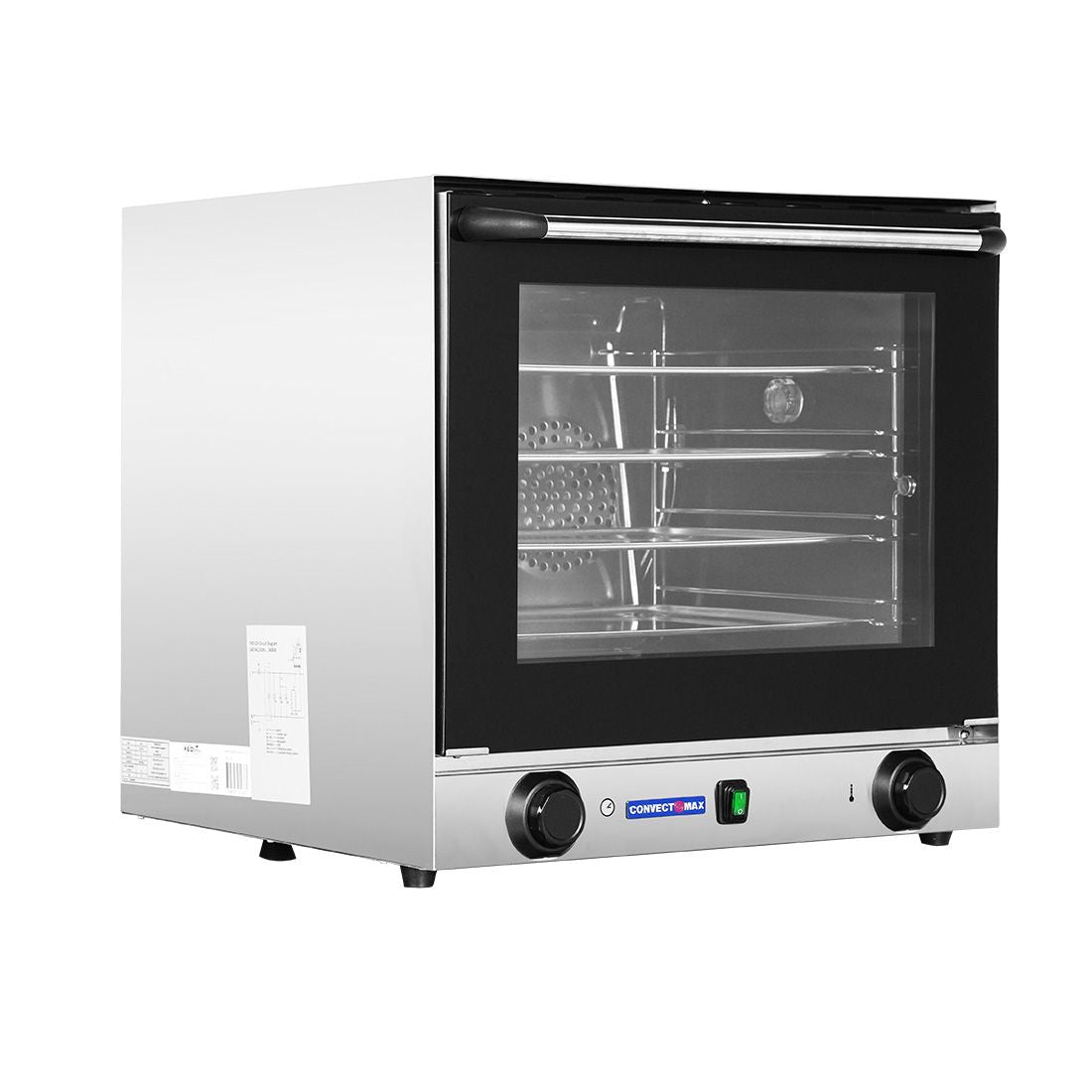

ConvectMax YXD-1DI Digital Convection Oven

The ConvectMax YXD-1DI is a compact stainless steel electric convection oven designed for cafes, bakeries and busy commercial kitchens. With a wide temperature range of 50 to 300°C and two powerful reversing fans, it delivers consistent, even heat distribution across all four included aluminium trays, making it well suited to high-volume baking and cooking applications.

Practical design details throughout make daily operation straightforward. The enamel interior with rounded corners simplifies cleaning, the double-layer glass door provides clear visibility while retaining heat, and the auto-stop function cuts fan operation the moment the door is opened, improving both safety and energy efficiency. An optional wire shelf further extends the oven's versatility for different load types.

Key Benefits

• Even baking results across all tray levels thanks to two reversing fans that actively circulate hot air throughout the cavity
• Wide 50 to 300°C temperature range suits everything from gentle proofing and warming through to high-heat roasting and baking
• Auto-stop on door open halts fan operation immediately, reducing heat loss, improving safety and protecting staff from hot air blast
• Enamel interior with rounded design makes post-service cleaning quick and straightforward, reducing labour between sessions
• Double-layer glass door retains internal heat efficiently while giving operators a clear view of products without opening the oven
• Compact footprint of 595 x 530mm suits space-tight kitchens without sacrificing a generous 460 x 375 x 360mm internal cavity
• Four aluminium trays included at purchase, each 437 x 314mm with 80mm spacing, so the oven is ready to use straight out of the box
• 120-minute timer with digital controls allows precise, repeatable cook cycles across different menu items
• Optional wire shelf accessory adds flexibility for roasting, reheating or accommodating larger or irregularly shaped food items

Key Features

• Stainless steel exterior construction for durability and ease of cleaning in commercial environments
• Digital temperature control spanning 50 to 300°C
• Two powerful reversing fans ensure uniform heat distribution throughout the cooking cavity
• Enamel-coated interior with rounded corners for straightforward cleaning

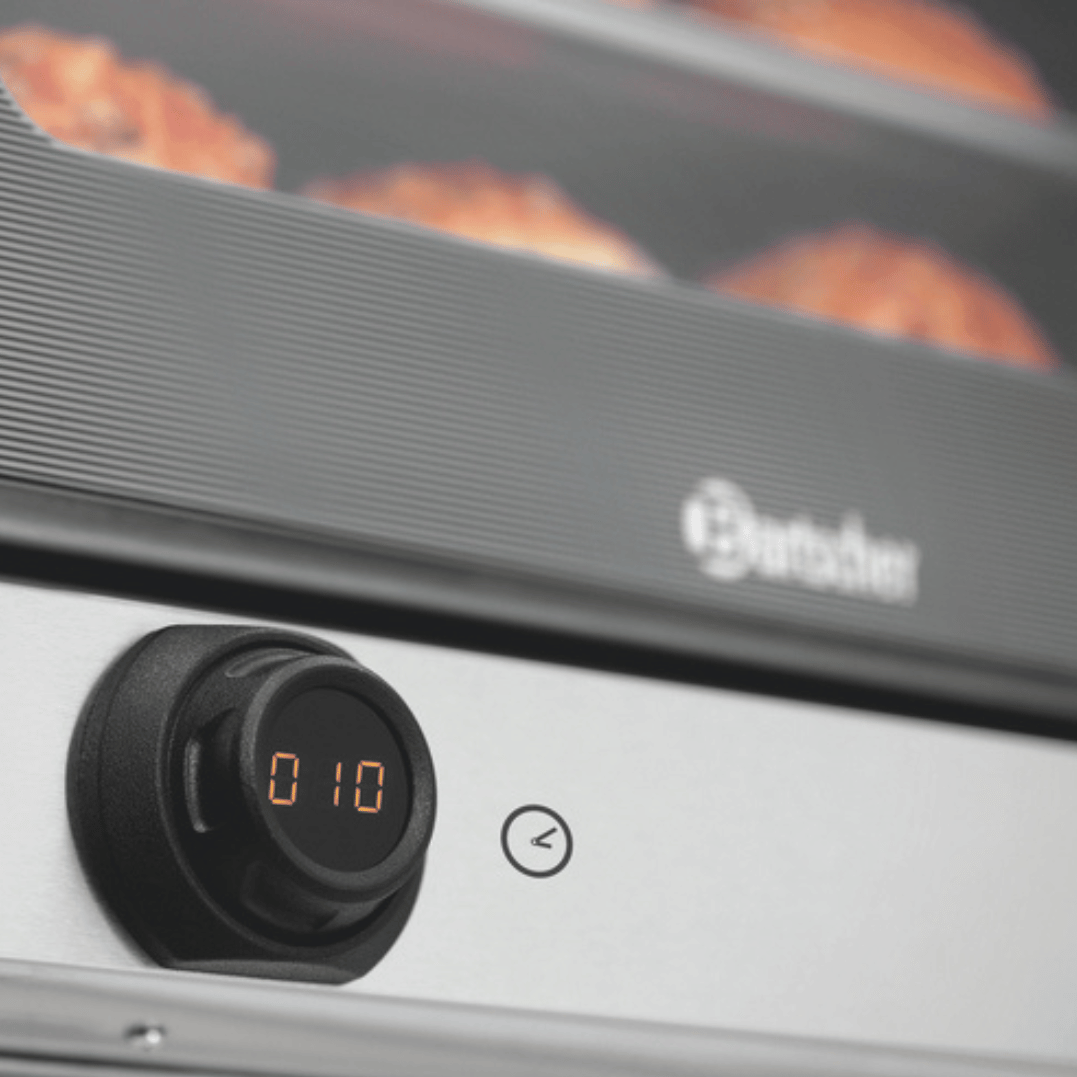

• 120-minute countdown timer with digital interface
• Auto-stop function cuts fan operation when the door is opened

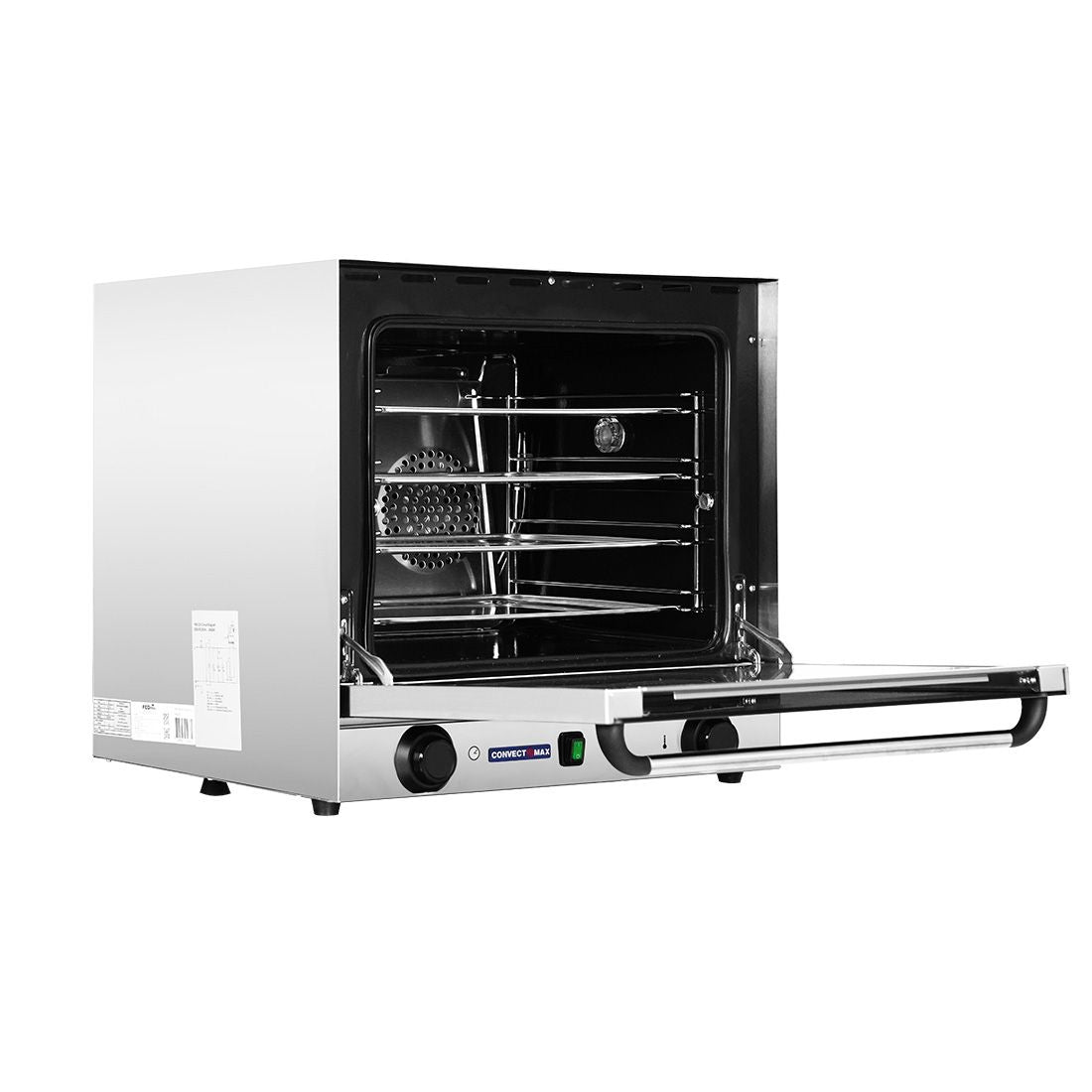

• Door opens forward and down for easy tray loading and unloading
• Double-layer glass door for thermal insulation and product visibility
• Four aluminium trays included, each 437 x 314mm

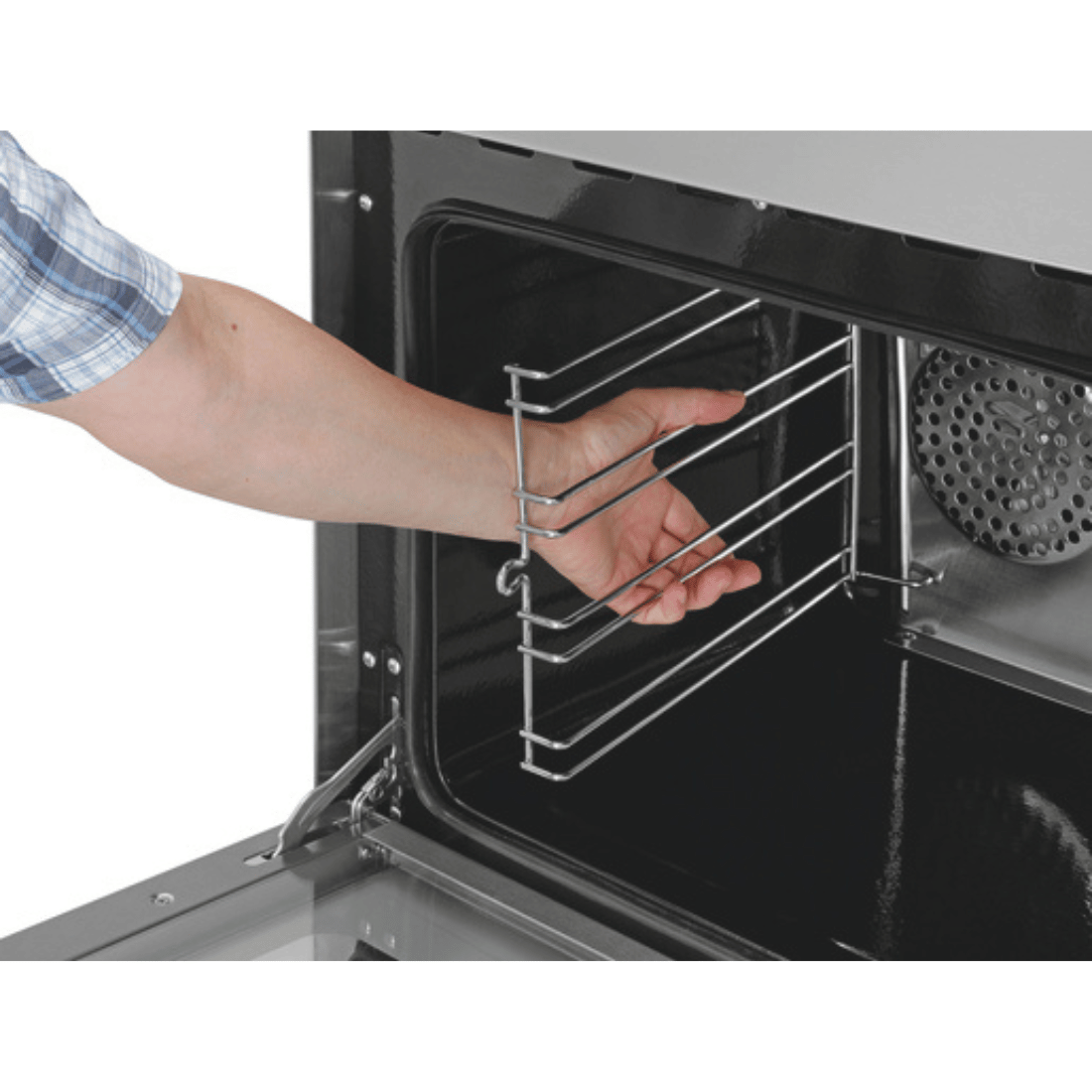

• 80mm spacing between tray positions accommodates a variety of product heights
• Internal cavity dimensions of 460 x 375 x 360mm
• External dimensions of 595mm (W) x 530mm (D) x 570mm (H)
• Operates on 240V, 2.4kW / 10A power supply
• Optional wire shelf available as an accessory
• 1 year parts and labour warranty

Specifications

• Width (mm): 595
• Depth (mm): 30
• Height (mm): 570
• Weight (kg): 41
• Packed Width (mm): 640
• Packed Depth (mm): 660
• Packed Height (mm): 640
• Shipping Weight: 38
• Power Delivery: 240V, 2.4W/10A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour Warranty
• Bowl Depth (mm): 460x375x360
