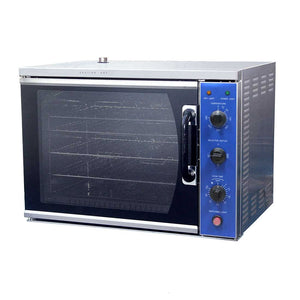

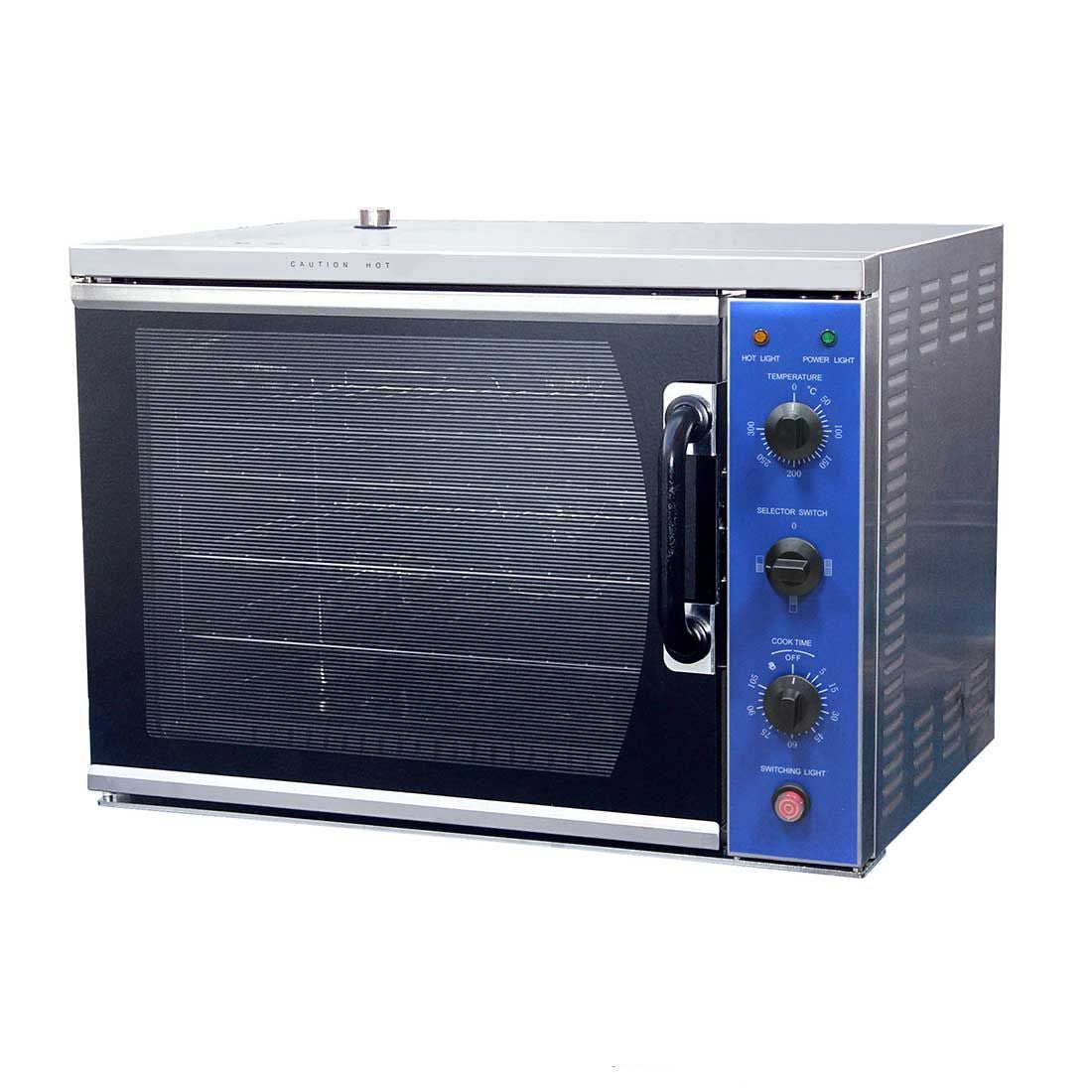

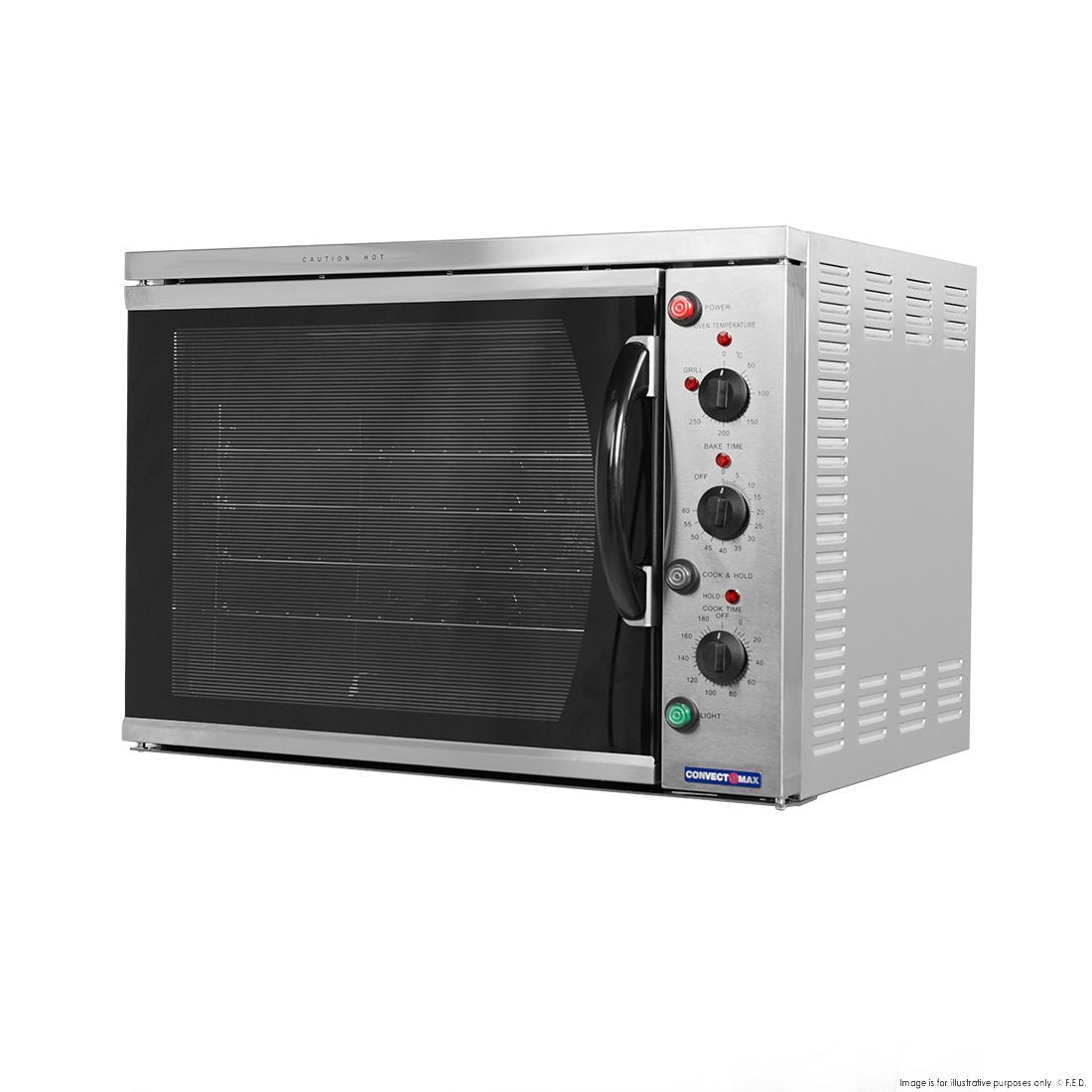

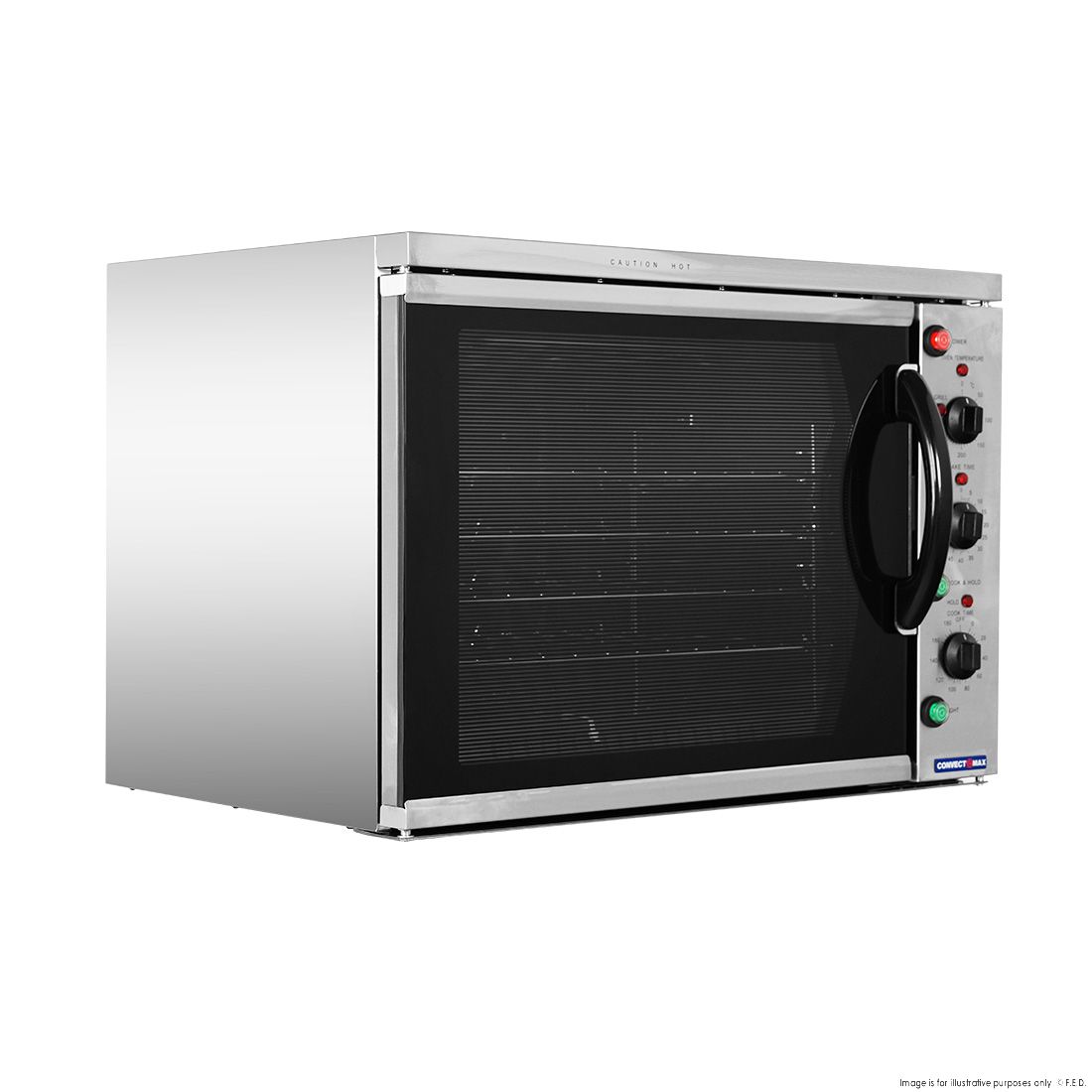

ConvectMax YXD-6A/15 Electric Convection Oven

The ConvectMax YXD-6A/15 is a 4-tray GN1/1 electric convection oven built for the demands of commercial kitchens. Running on a standard 15A power point at 3.5kW, it delivers strong, consistent heat up to 270°C with both top and bottom heating elements, making it well suited to high-volume baking, roasting and grilling across a full service period.

Designed with practical kitchen operation in mind, the YXD-6A/15 features a ceramic-coated cavity for straightforward cleaning, a chamber light for clear visibility during cooking, and a cook-and-hold function to keep food at temperature without overcooking. The fan stops automatically when the door is opened, and the waterproof on/off switch adds an extra layer of safety in busy, wet kitchen environments.

Key Benefits

• Plugs into a standard 15A power point, requiring no special electrical installation and making it easy to position within an existing kitchen setup.
• 3.5kW output and dual top-and-bottom heating elements provide fast heat recovery between loads, keeping up with continuous cooking demands during peak service.
• Cook-and-hold function maintains finished dishes at serving temperature without over-cooking, reducing food waste and improving timing across a service.
• Grilling function expands versatility beyond conventional convection baking, allowing browning and finishing without a separate appliance.
• Ceramic-coated cavity resists grease and food residue build-up, significantly reducing the time and effort required for end-of-day cleaning.
• Fan stops automatically when the door is opened, protecting staff from sudden heat release and improving safety during tray changes.
• Dual timer system with a 60-minute bake timer reminder and a 180-minute cooking timer gives operators flexible control over different cooking programmes.
• Chamber light provides a clear view of food inside without opening the door, helping maintain consistent oven temperature and reducing unnecessary heat loss.

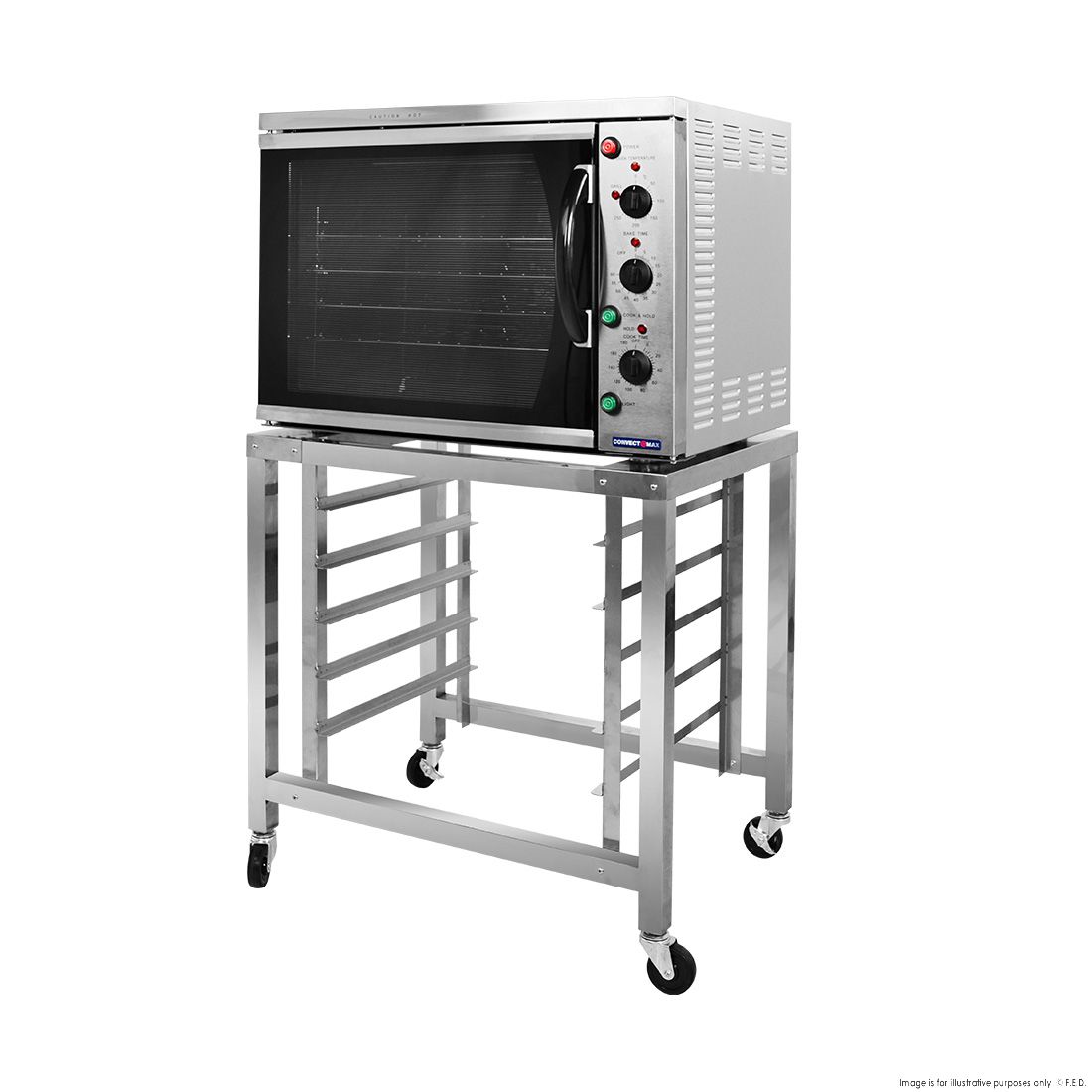

• Optional caster-mounted stand (YXD-6A-S) raises the oven to a practical working height and allows the unit to be repositioned within the kitchen as needed.

Key Features

• GN1/1 capacity accommodating 4 trays simultaneously
• Temperature range up to 270°C
• Top and bottom heating elements with selection switch for independent control
• Stainless steel construction throughout
• Stainless steel heating elements

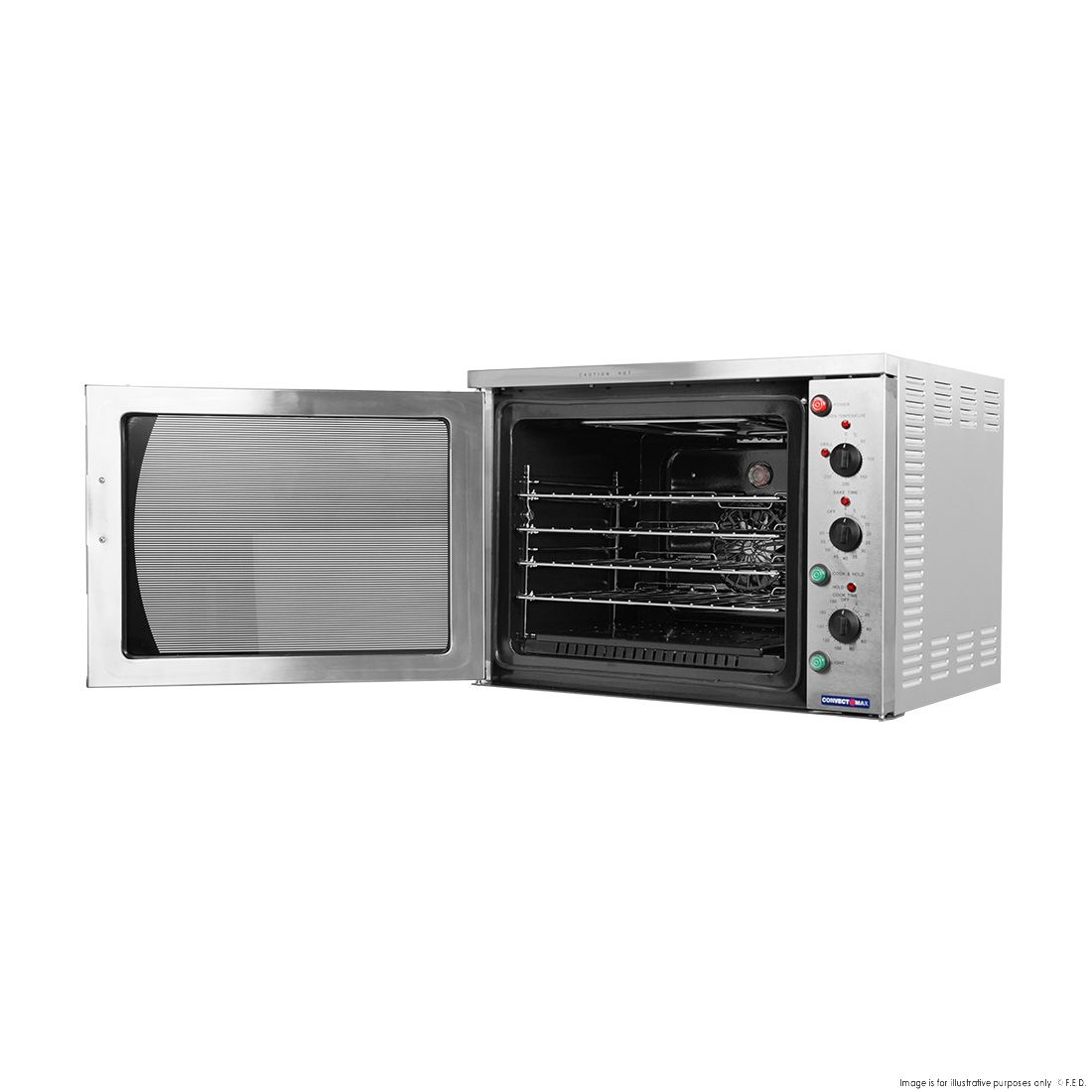

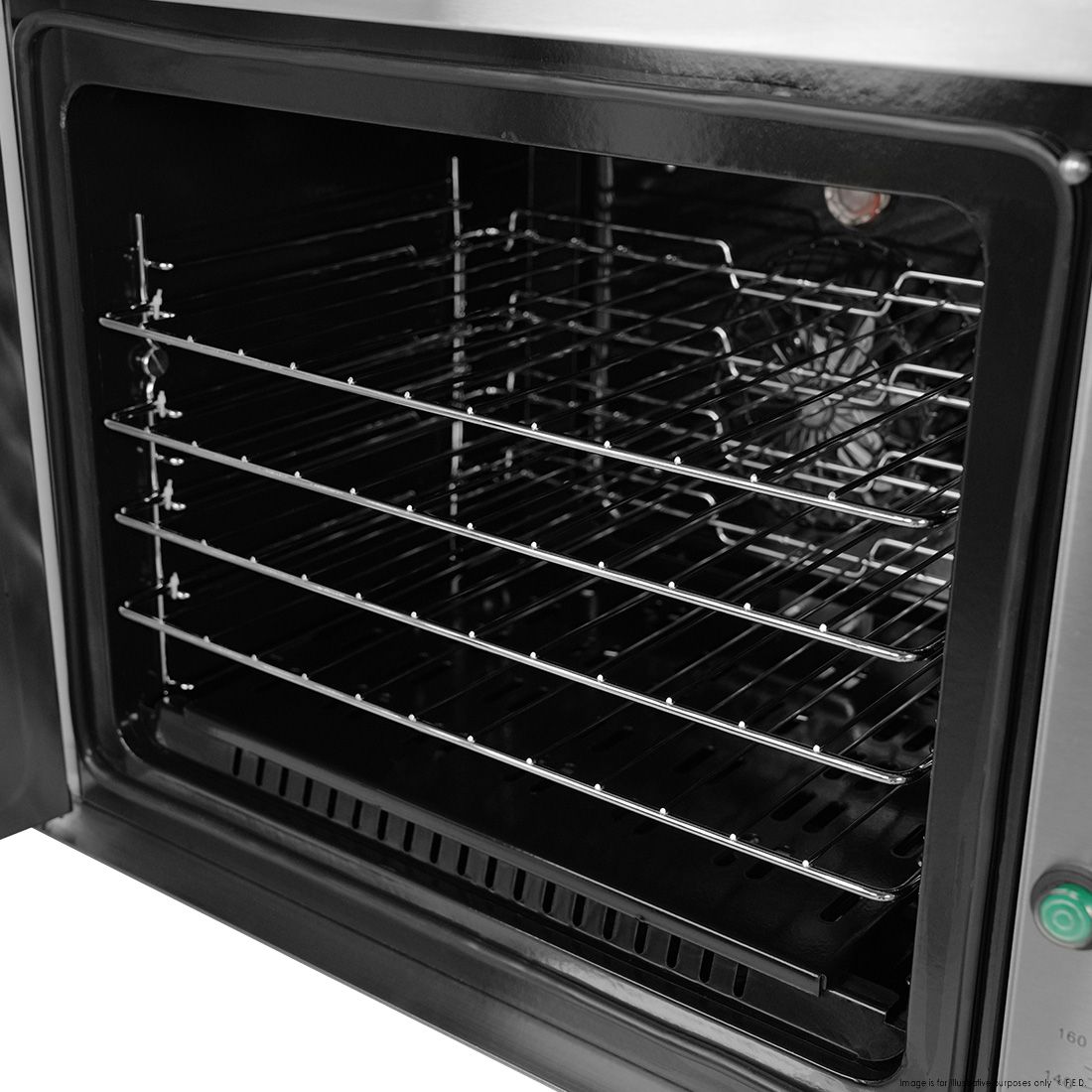

• Ceramic-coated cavity for easy cleaning and hygiene
• Internal cavity dimensions: 550 x 418 x 431mm
• Chamber light for improved visibility during cooking
• Cook-and-hold function
• Grilling function
• 60-minute bake timer reminder
• 180-minute cooking timer
• Fan stops automatically when the door is opened
• Waterproof on/off switch
• 15A power point connection, 3.5kW power output
• 4 standard GN1 racks included
• Optional stand with castors available: model YXD-6A-S
• 1-year parts and labour warranty

Specifications

• Width (mm): 798
• Depth (mm): 670
• Height (mm): 580
• Weight (kg): 52
• Packed Width (mm): 750
• Packed Depth (mm): 850
• Packed Height (mm): 650
• Shipping Weight: 44
• Power Delivery: 3.5KW; 15A
• Power (kW): 3.5
• Warranty (months): 1 Year Parts and Labour
