Overview

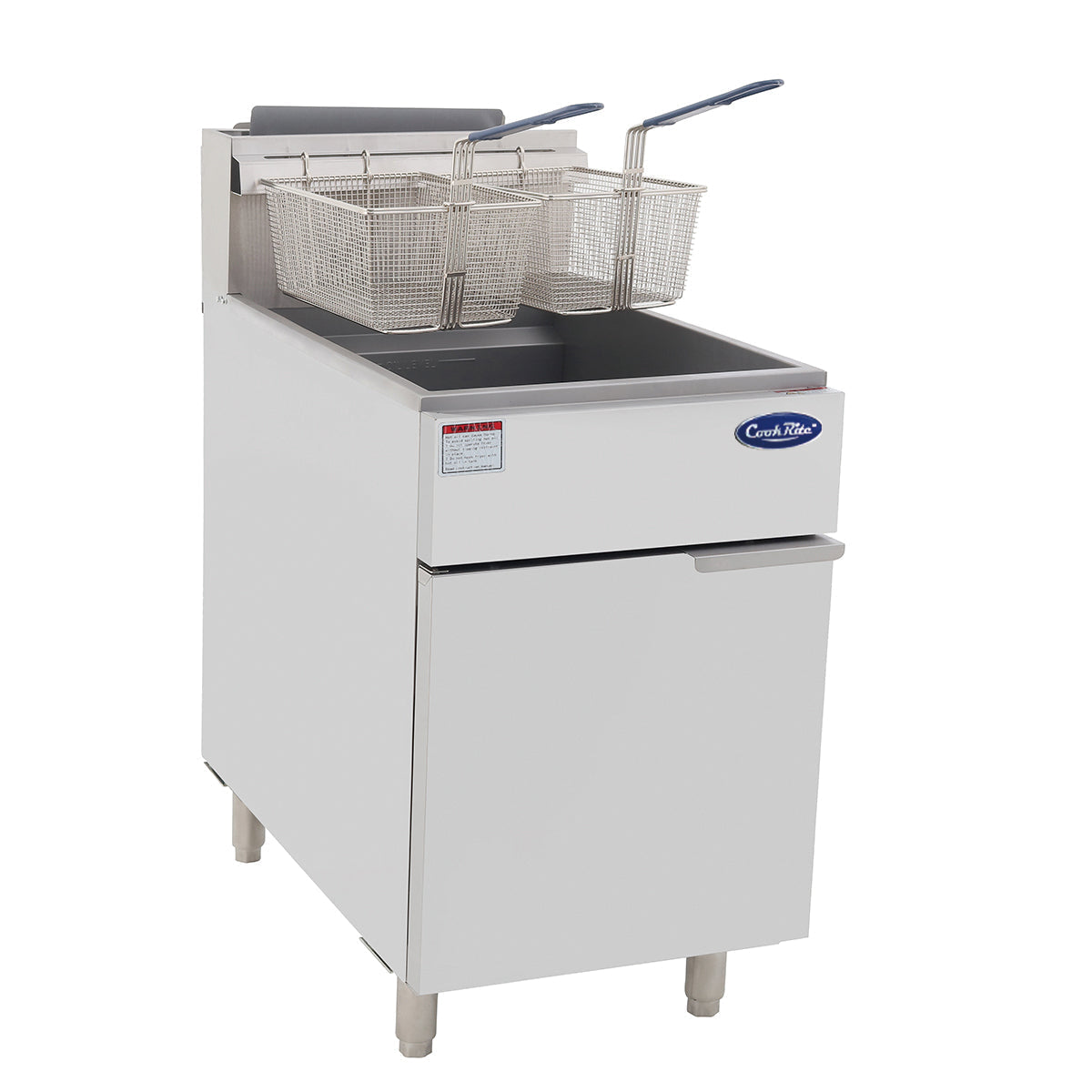

Cookrite ATFS-75-LPG 5 Tube Gas Deep Fryer (LPG)

The Cookrite ATFS-75-LPG is a heavy-duty freestanding LPG gas deep fryer built from 304 stainless steel, designed to handle the rigorous demands of commercial kitchens, fish and chip shops, restaurants and catering venues. With five heavy-duty tube burners delivering a total output of 140 MJ/h, the unit achieves rapid heat recovery so production throughput stays consistently high even during peak service periods.

Temperature is managed via a Robert Shaw USA thermostat with a range of 0°C to 240°C, supported by an automatic safety valve stabilising function and standard flame failure protection for reliable, safe operation. Practical details such as a front screw-on drain pipe, an oil cooling zone at the base of the tank, nickel-plated frying baskets, rear heavy-duty castors and adjustable stainless steel legs make the fryer easy to use, clean and reposition on the floor.

Key Benefits

• Five high-output tube burners with standby pilots deliver fast heat recovery, reducing wait times between batches and keeping service moving during busy periods.
• The Robert Shaw USA thermostat provides precise, consistent temperature control across a wide 0°C to 240°C range, helping operators achieve repeatable frying results.
• An automatic safety valve stabilising function combined with standard flame failure protection safeguards staff and equipment if the flame is accidentally extinguished.
• An oil cooling zone seated at the bottom of the tank captures food debris away from the active frying area, extending oil life and improving food quality.
• A front-mounted screw-on drain pipe makes oil changes straightforward and minimises mess, reducing cleaning downtime between service periods.
• Nickel-plated frying baskets resist corrosion and are easy to clean, standing up to the repeated exposure to hot oil in a commercial environment.
• Heavy-duty rear castors and adjustable stainless steel legs allow easy repositioning for cleaning or layout changes while keeping the unit stable during operation.
• Gas Approved Australia-wide, giving operators confidence the unit meets local safety requirements without additional certification steps.

Key Features

• Constructed throughout in 304 stainless steel for durability and hygiene compliance

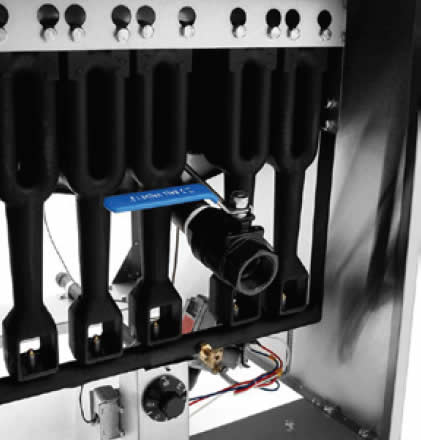

• Five heavy-duty tube burners with stable flame and standby pilots
• Total gas output: 140 MJ/h (28 MJ/h per tube burner) on LPG

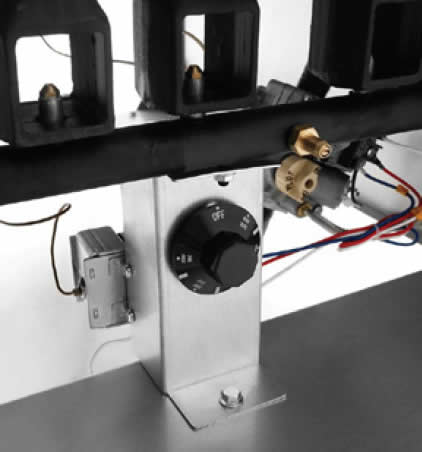

• Robert Shaw USA thermostat and valve controls for accurate temperature management
• Thermostatic temperature control range: 0°C to 240°C
• Manual ignition
• Standard flame failure device for operator safety
• Automatic safety valve stabilising function
• Oil cooling zone seated at the bottom of the tank to keep food residue away from the frying area
• Front screw-on drain pipe for convenient oil removal and changes

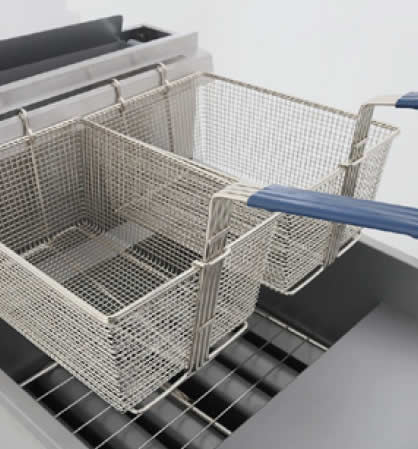

• Nickel-plated frying baskets included
• Stainless steel splashback
• Heavy-duty constructed frame
• Heavy-duty rear castors for easy repositioning
• Adjustable stainless steel legs for levelling on uneven floors
• 3/4 inch BSP gas inlet connection
• Available in natural gas (NG) and LPG versions
• Available in 3, 4 and 5 burner configurations
• Gas Approved Australia-wide
• Freestanding installation type
• Country of origin: China

Specifications

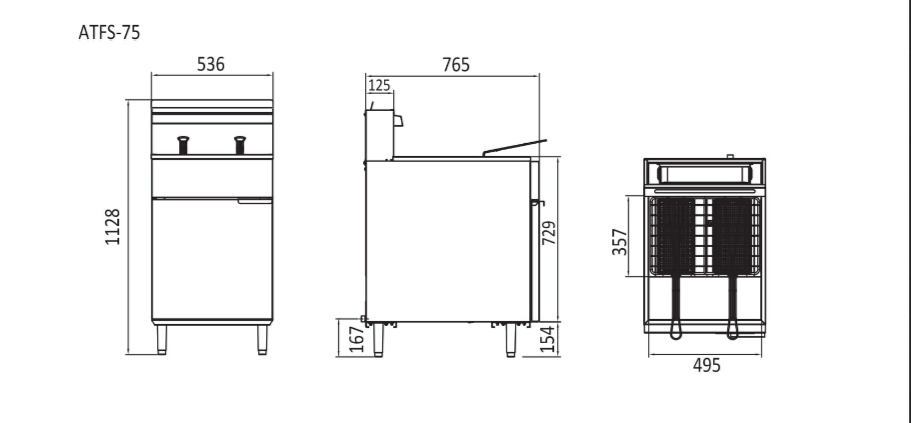

• Width (mm): 535
• Depth (mm): 765
• Height (mm): 1128
• Weight (kg): 76
• Colour: Stainless Steel
• Gas Type: LPG
• Gas Connection: 3/4" BSP
• Burner Output (MJ/h): 28 MJ/h per tube
• Packed Width (mm): 590
• Packed Depth (mm): 850
• Packed Height (mm): 965
• Shipping Weight: 90.5
• Capacity (Litres): 140
• Material: 304 Stainless Steel
• Splash Back: Yes
• Country of Origin: China
• Warranty (months): 24
• Temperature Range: 0°C - 240°C
• Installation Type: Freestanding
• Control Type: Robert Shaw Thermostat
• Temperature Control: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 5
• Power Rating: 140 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
