Overview

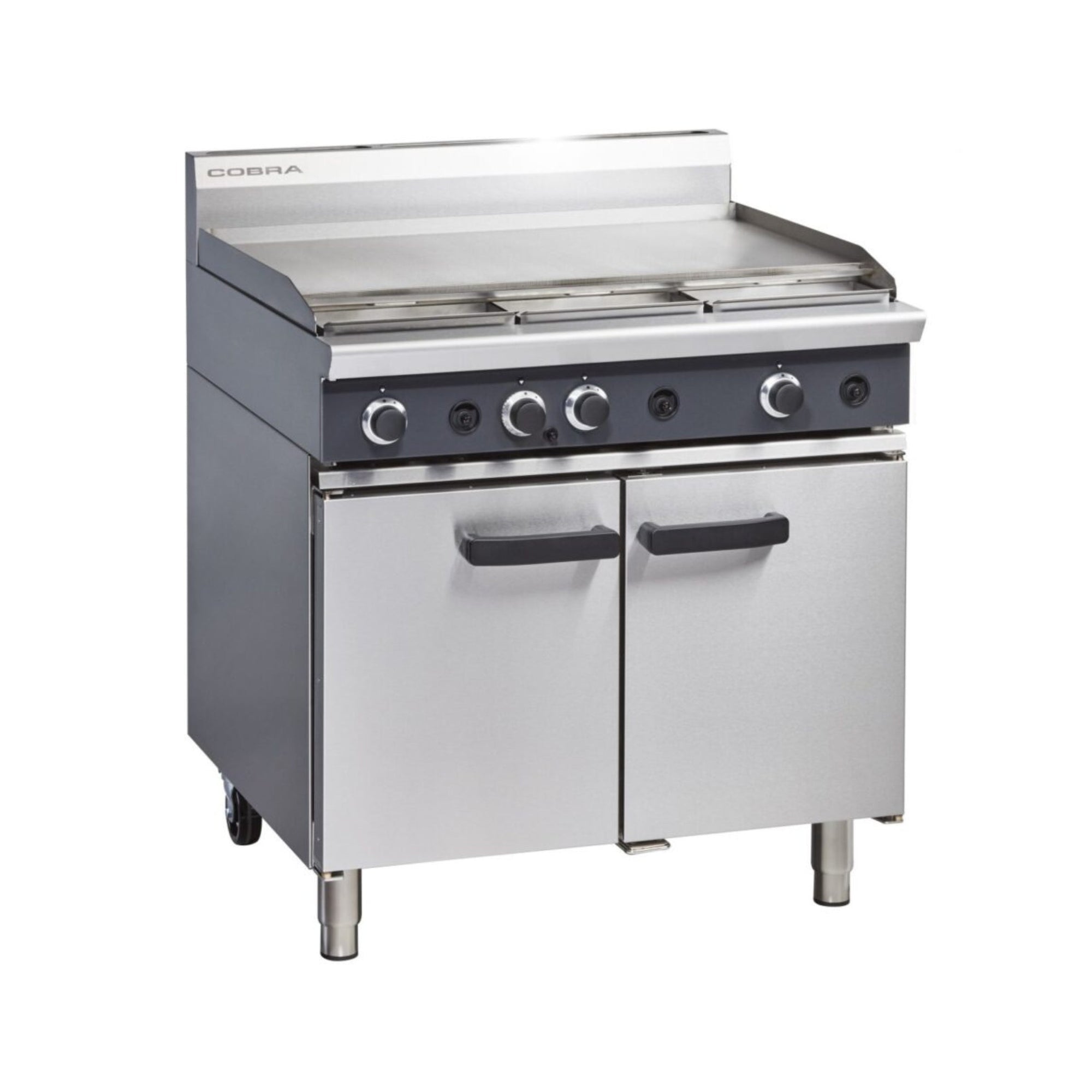

Cobra CR9A 900mm Griddle Gas Range Static Oven

The Cobra CR9A is a 900mm wide commercial gas range combining a heavy-duty smooth griddle cooktop with a high-crown gas static oven, purpose-built for the demands of busy professional kitchens. Manufactured in New Zealand from stainless steel and designed as part of Cobra's fully modular cook line, it suits cafés, restaurants, catering operations, and any venue requiring consistent, high-volume output from a single, compact unit.

Three independently controlled 20 MJ/hr cast iron griddle burners deliver variable heat across the full 900mm surface, while the gas static oven below accepts 2/1 GN or two 1/1 GN pans per rack and features a welded vitreous enamelled liner for straightforward cleaning. French doors provide full-width oven access, and the unit ships ready for connection to either natural gas or LPG supply.

Key Benefits

• Three independently zoned griddle burners allow precise temperature control across separate cooking areas simultaneously, reducing the need for multiple appliances.
• A 12mm machine-finished smooth griddle plate provides even heat distribution and fast recovery between batches, keeping output high during peak service.
• The high-crown gas static oven accommodates 2/1 GN pans, giving generous capacity for roasting, baking, and finishing dishes in a single oven cavity.
• Pilot and flame failure protection across the griddle burners, combined with piezo ignition, supports safe and reliable operation throughout a busy service period.
• French door access opens the full oven width for easy loading and unloading of large gastronorm pans, minimising handling time during service.
• Adjustable front feet and rear rollers allow straightforward levelling and repositioning within a cook line, simplifying kitchen layout changes.
• Full stainless steel exterior and a welded vitreous enamelled oven liner make routine cleaning faster and support long-term hygiene in commercial environments.
• Fully modular design integrates directly with other 800mm-deep Cobra range equipment, enabling a consistent, professional cook line configuration.
• Available in both natural gas and LPG configurations with a 3/4 BSP male gas connection, offering flexibility across different site requirements.

Key Features

• 900mm wide smooth griddle cooktop with 12mm machine-finished griddle plate
• 3 x cast iron griddle burners, each rated at 20 MJ/hr (5.0 kW per 300mm section), with variable high-to-low controls
• Total gas rating: 88 MJ/hr (24.4 kW gross)
• Standard pilot ignition, flame failure device, and piezo ignition on griddle burners
• Vitreous enamel pot stands on cooktop section
• High-crown gas static oven rated at 28 MJ/hr (7.8 kW)
• Oven capacity: 2/1 GN or two 1/1 GN pans per rack
• 4-position oven racking system
• Oven internal dimensions: W760 x D615 x H365mm; rack size 750mm x 590mm
• French door system for full-width oven access
• Welded vitreous enamelled oven liner for durability and ease of cleaning
• Steel oven base tray designed for easy removal and cleaning
• 170mm high stainless steel splashback
• Stainless steel construction throughout
• Adjustable front feet and rear rollers for levelling and repositioning
• Fully modular design compatible with the Cobra 800mm-deep cook line
• Available in natural gas or LPG; gas connection R 3/4 BSP male
• Freestanding, free-standing installation
• Overall dimensions: W900 x D800 x H915mm (H1085mm including splashback)
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 800
• Height (mm): 915
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Ignition Type: Manual Pilot
• Burner Output (MJ/h): 88
• Shipping Weight: 210
• Packed Width (mm): 940.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 865.0
• Shipping Cubic: 1.020441000m3
• Material: Stainless Steel
• Undershelf: Open Cabinet Base
• Splash Back: Yes (170mm)
• Country of Origin: New Zealand
• Warranty (months): 24
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 3
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth
• Power Rating: 88 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
